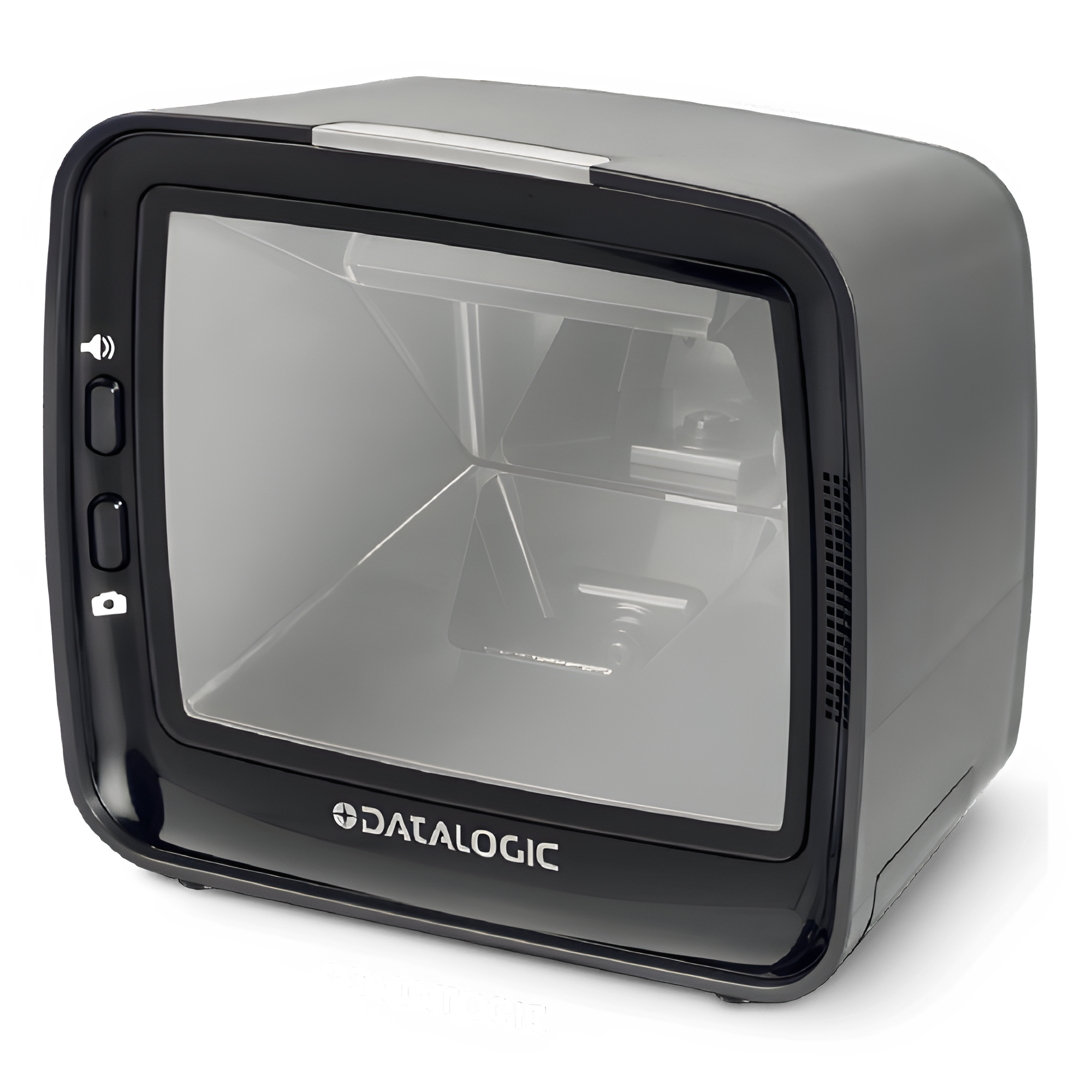

Datalogic Magellan 3410VSi OEM 1D/2D Fixed Barcode Scanner USB/K Wall Mount

Single-plane OEM imager for retail and kiosk integration

The Datalogic Magellan 3410VSi is a single-plane OEM barcode scanner built for counter, wall and kiosk mounting. It uses a 1 MP sensor at 1280 x 800 pixels with custom optics for a large reading area. The USB/K configuration adds a keyboard-wedge host interface and wall-mount hardware.

The imager reads 1D, 2D and stacked codes from printed labels and mobile screens. Maximum resolution reaches 5 mil, and 1D sweep speed runs up to 1.5 m/s. Read distance extends to 20 cm, with a 14 cm read height. The sensor captures images in JPEG and BMP formats for record keeping.

Multiple diffused LEDs illuminate the scan window without flicker, and ambient-light tolerance reaches 86,100 lux. The housing carries an IP52 seal against dust and water spray, plus 25 kV air-discharge ESD protection. Operating temperature spans 10 to 40 °C, and storage tolerance runs from -40 to 70 °C.

Power can come from a 5 V USB host connection, which removes the need for a separate adapter where the host supplies sufficient current. Maximum draw is 2.25 W at 5 V, with typical RMS consumption at 1.6 W. The unit also accepts 5-12 V DC input through the interface cable. A powered Type-A USB auxiliary port supports a second scanner.

Physical dimensions measure 137 x 152 x 94 mm, and the unit weighs 600 g. The vertical single-plane form factor mounts to a counter, wall or small self-checkout enclosure. ScanSentry object sensing detects approaching customers or items even when no barcode is presented. A configurable beeper and good-read LED provide feedback at the lane.

Key Features

• 1 MP imaging sensor
  The 1280 x 800 sensor and custom optics create a wide reading area for 1D and 2D labels.

• USB keyboard-wedge kit

  • USB/K host interface for keyboard-wedge data entry
  • Wall-mount hardware included for fixed installation
  • Powered auxiliary USB port for a second scanner

• 5 mil resolution
  The imager resolves small elements and reads 1D sweep speeds up to 1.5 m/s.

• IP52-sealed housing
  The enclosure resists dust and water spray in checkout and kiosk environments.

• 25 kV ESD protection
  Air-discharge protection covers static events at counter and self-service lanes.

• Multiple interface options
  The platform supports USB keyboard, USB COM, OEM USB and RS-232 host connections.

• ScanSentry object sensing
  The scanner detects approaching items or customers when no barcode is read.

Specifications

What’s in the Box

• Magellan 3410VSi OEM scanner

• USB keyboard-wedge interface cable

• Wall-mount hardware

• Quick reference guide

Why Choose This Fixed Scanner

• The single-plane housing fits counters, walls and small self-checkout enclosures.

• USB keyboard-wedge output drops into existing point-of-sale software without custom drivers.

• IP52 sealing and 25 kV ESD protection suit high-traffic retail lanes.

• ScanSentry sensing supports customer-facing kiosks and self-service checkouts.

• The 5 V USB power path reduces cabling and adapter count at the lane.

• A 3-year factory warranty covers the unit in continuous retail operation.
