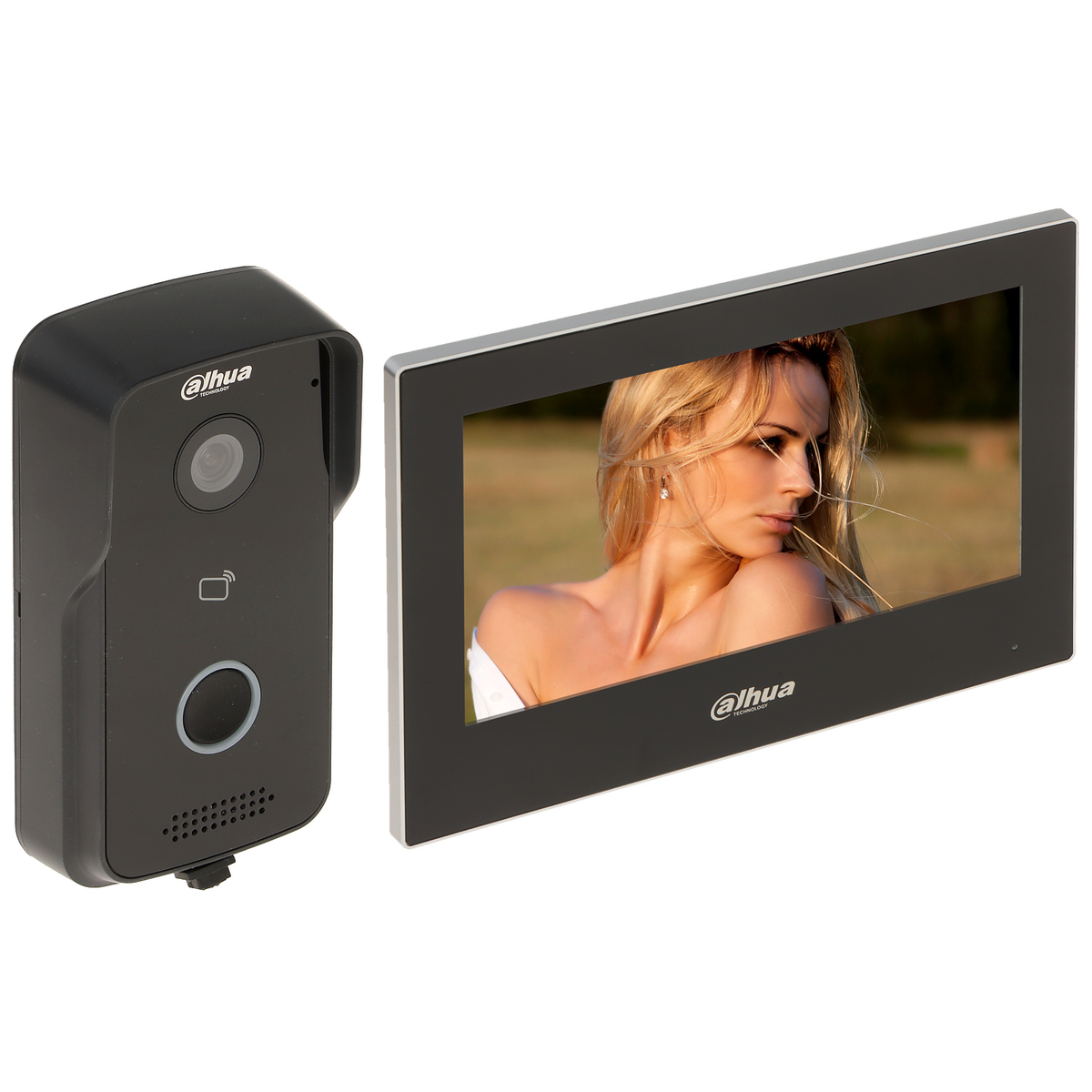

Dahua KTP03 IP Video Intercom Kit 720p Villa Door Station

Dahua KTP03 IP Kit

The Dahua KTP03 Intercom kit delivers an outdoor IP villa door station with up to 720p main-stream video resolution. H.264 and H.265 compression options reduce bandwidth on residential LAN segments and WAN links to cloud recorders. Two-way audio includes echo suppression and noise processing so conversations remain intelligible at the gate or front door. The outdoor station connects over IP to compatible Dahua indoor monitors and controllers on the same network. Installers deploy the kit on villa compounds, gated communities, and small office entrances that need networked entry control.

720p video provides sufficient facial detail for visitor verification without the storage overhead of 1080p streams. H.265 encoding cuts bit rate roughly in half compared to H.264 at equivalent quality on supported decoders. Echo cancellation prevents feedback when the outdoor unit and indoor monitor operate simultaneously during calls. IP architecture allows future expansion with additional door stations or indoor endpoints on the same subnet. Dahua bundles the outdoor station as a complete kit entry point for greenfield IP intercom projects.

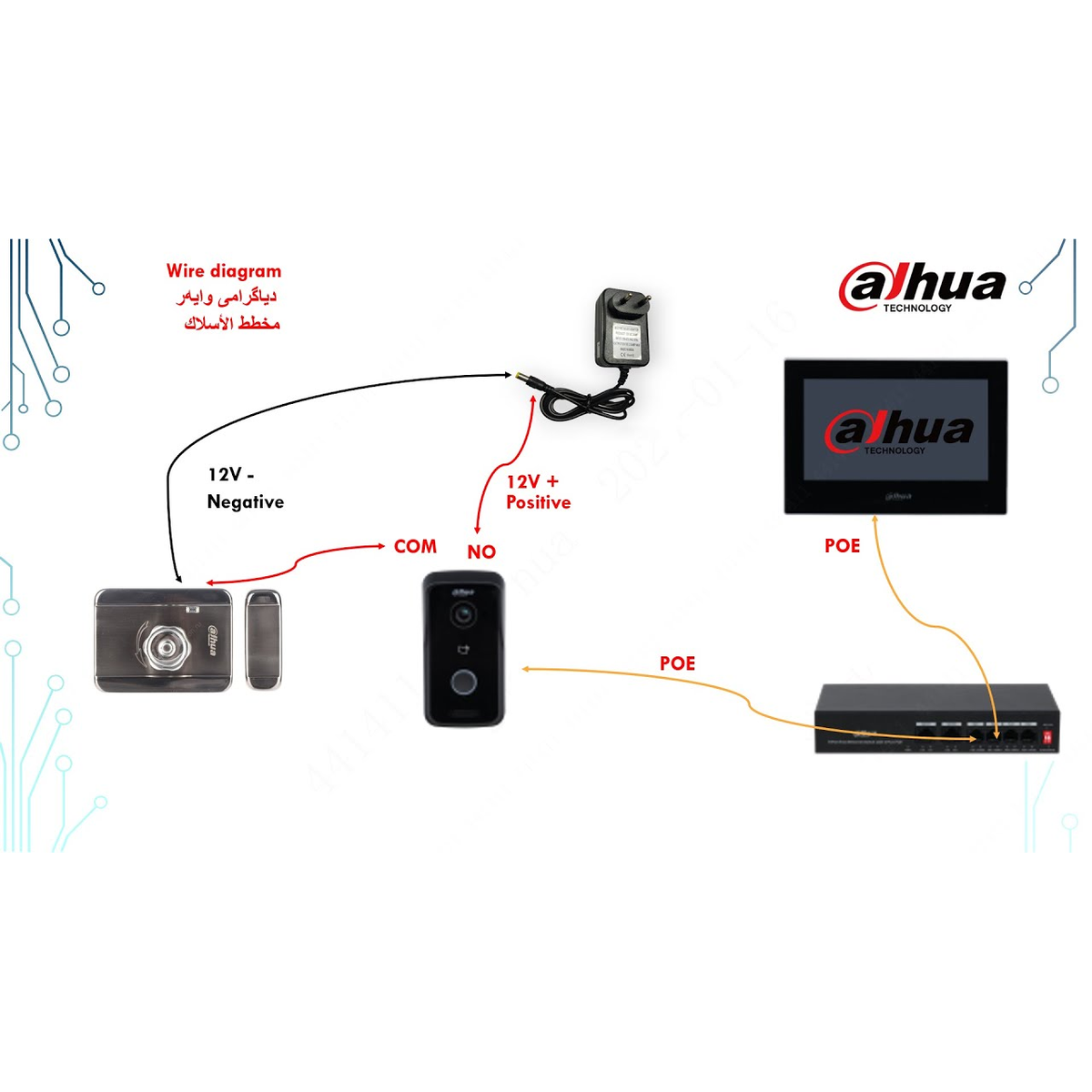

Run Cat5e or Cat6 cable in conduit from the gate to the network closet with outdoor-rated glands at penetration points. Assign the door station to a dedicated intercom VLAN when the core switch supports ACL-based segmentation. Configure indoor monitors to register the outdoor unit before enabling electric strike outputs on the relay contacts. Test two-way audio at maximum speaker volume to confirm echo suppression under real ambient noise. Schedule firmware updates through the Dahua config tool during low-traffic periods to maintain call availability.

Key Features

• 720p Main Stream Video
  Outdoor camera captures HD-class entry footage at up to 720p resolution.

• Dual Codec Support

  • H.265 for efficient bandwidth usage
  • H.264 for broad decoder compatibility

• Enhanced Two-Way Audio
  Echo suppression and noise reduction improve talk clarity at the door.

• Outdoor IP Villa Station
  Weather-rated housing mounts at residential and small commercial entries.

• Network-Based Intercom
  Ethernet IP link integrates with Dahua indoor monitors and access controllers.

Specifications

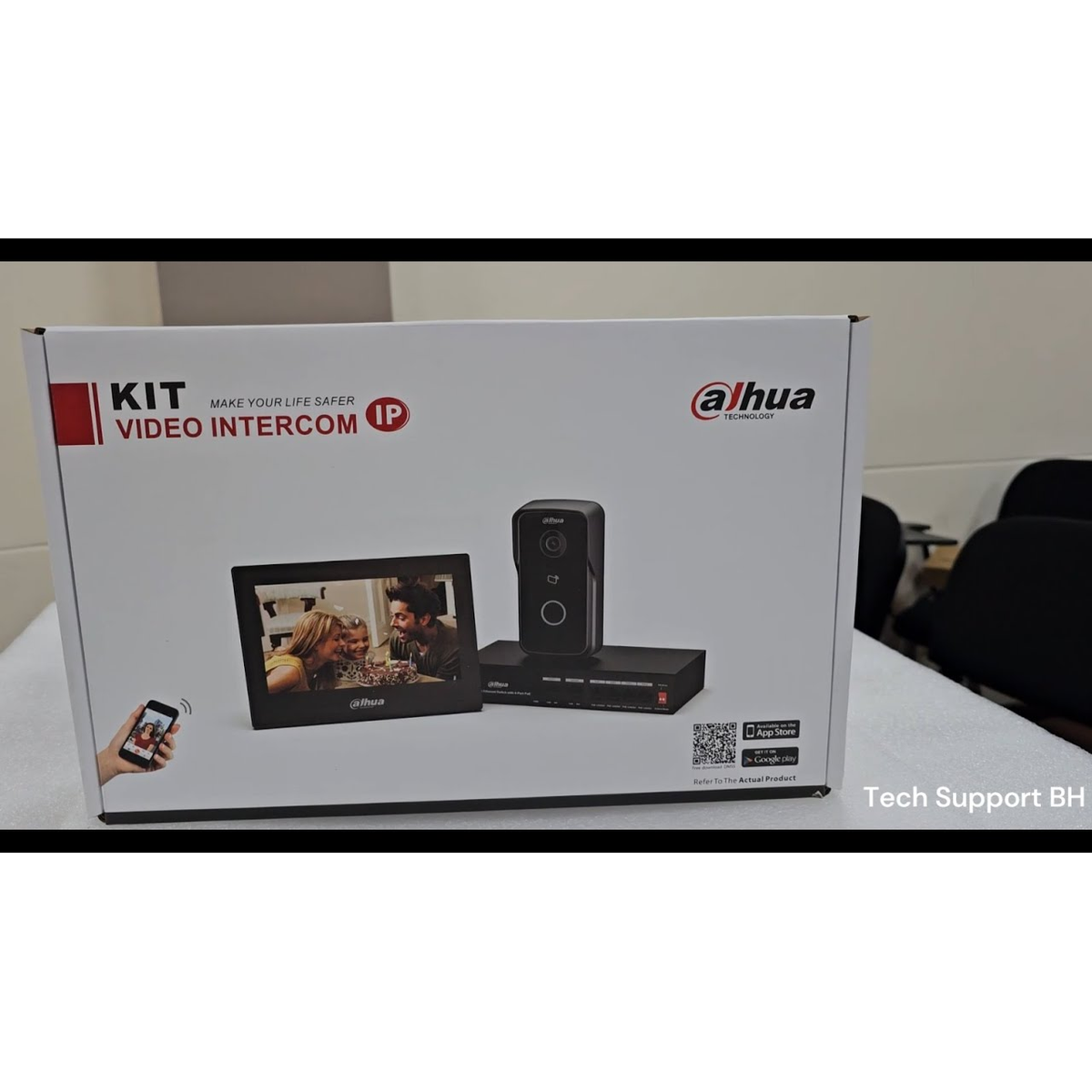

What’s in the Box

• Dahua KTP03 outdoor IP villa door station

• Installation hardware and documentation

Why Choose KTP03

• 720p H.265 streams balance identification detail and network load.

• IP architecture supports scalable multi-entry villa deployments.

• Echo-suppressed audio improves visitor communication at the gate.

• Outdoor-rated station withstands residential exterior mounting conditions.

• Dual codec support eases integration with mixed-generation indoor monitors.
