Dahua KTA02 Analog Video Intercom Kit 7″ Outdoor Station

Dahua KTA02 Analog Kit

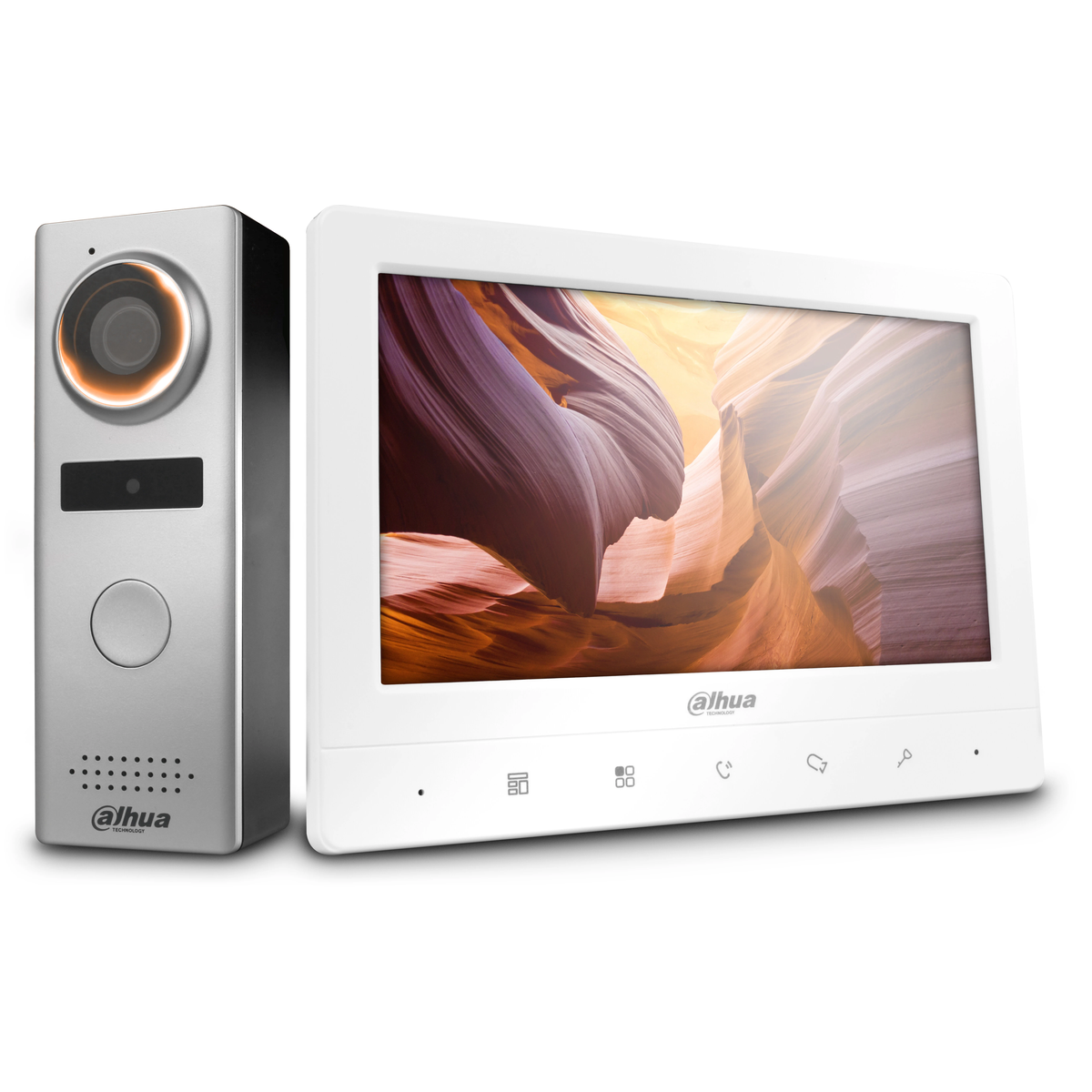

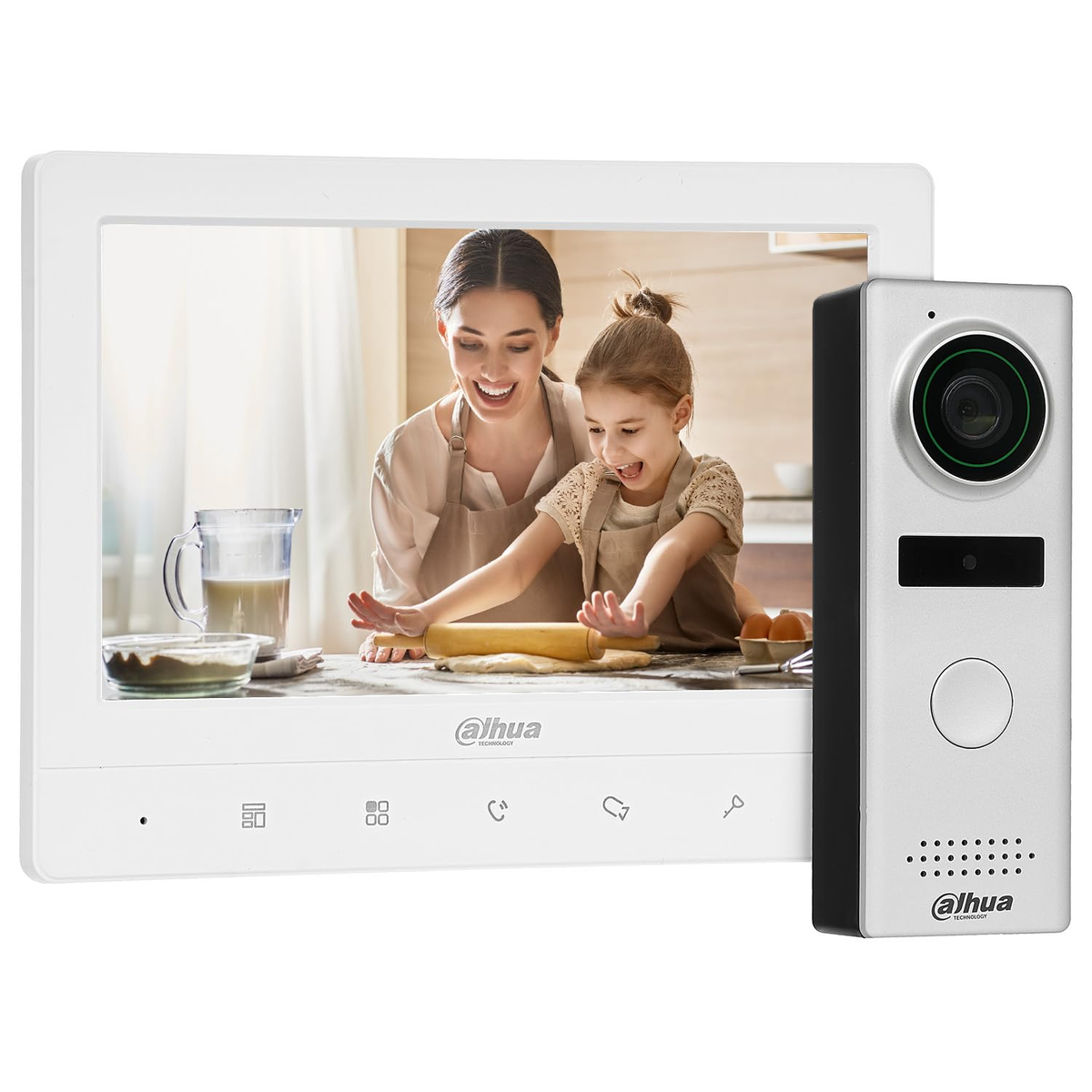

The Dahua KTA02 Intercom kit combines an indoor monitor and a 7-inch outdoor door station for analog video entry communication. The indoor unit displays 1024 × 600 resolution and operates on DC 12V at 1 amp. Compact indoor dimensions of 133.9 × 182.7 × 17.7 mm allow surface or recess mounting in hallways and reception areas. The outdoor station carries an IP65 rating against dust and water jets, suitable for covered porch and gate installations. Analog signaling simplifies wiring for residential villas and small commercial entrances without IP network configuration.

Installers choose analog intercom kits when existing two-wire infrastructure is already in place. The outdoor 7-inch interface gives visitors a clear call button and camera view at the entry point. Indoor staff answer calls, release doors, and monitor the entrance feed from a fixed wall position. IP65 outdoor protection supports exposed mounting where rain and dust are routine concerns. Dahua bundles both endpoints so procurement orders a matched pair rather than sourcing incompatible components.

Electricians run dedicated intercom cable between the outdoor station and indoor monitor following manufacturer pair counts and gauge recommendations. DC 12V power supplies should be sized for combined indoor and outdoor draw with headroom for door-release relays. Surface-mount the thin indoor panel at eye level in utility corridors for quick visitor response. Test call audio levels before commissioning electric strikes to avoid feedback on long cable runs. Document wire labels at both ends to speed future troubleshooting when tenants change hardware.

Key Features

• Complete Entry Kit
  Includes indoor monitor and outdoor door station for single-entry deployments.

• 1024 × 600 Indoor Display
  Indoor monitor renders caller video at WXGA-class resolution.

• IP65 Outdoor Station

  • Dust-tight enclosure for outdoor wall mounting
  • Protected against low-pressure water jets from any direction

• Analog Video Communication
  Uses established analog signaling over dedicated intercom cabling.

• Compact Indoor Monitor
  Thin 17.7 mm profile fits narrow hallways and utility walls.

Specifications

What’s in the Box

• Dahua KTA02 indoor monitor

• 7-inch outdoor door station

• Installation hardware and documentation

Why Choose KTA02

• Matched indoor and outdoor units reduce compatibility risk on villa projects.

• Analog wiring suits retrofits where IP infrastructure is not available.

• IP65 outdoor housing withstands weather at exposed entry points.

• 1024 × 600 indoor screen delivers readable caller identification.

• 12V DC indoor power aligns with common access-control supply rails.
