D-Link DGS-3130-54PS 48-Port PoE+ 10G Stackable Managed Switch

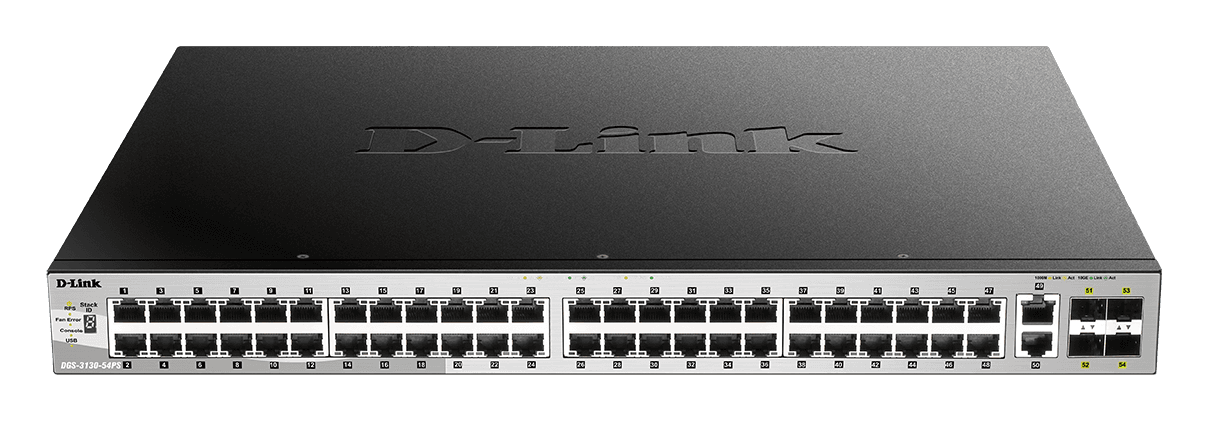

DGS-3130-54PS Managed Switch

The D-Link DGS-3130-54PS Switch provides a high-density Power over Ethernet solution designed for enterprise access layers and small-to-medium business cores. This Lite Layer 3 device integrates forty-eight Gigabit PoE+ ports with six 10-Gigabit uplink ports to eliminate network bottlenecks. The hardware architecture supports physical stacking of up to nine units, providing a maximum of 432 Gigabit ports per stack. Network administrators utilize the versatile port configuration to handle high-bandwidth traffic while maintaining granular control over power distribution to PD devices.

Key Features

• High-Density PoE Capabilities
  The system delivers a 370W internal power budget across 48 ports, expandable to 740W when integrated with the DPS-700 redundant power supply.

• Advanced Layer 3 Routing

  • Static Routing for inter-VLAN traffic management
  • RIP v1/v2 and RIPng support for dynamic path selection
  • OSPFv2 and OSPFv3 integration for scalable enterprise architectures

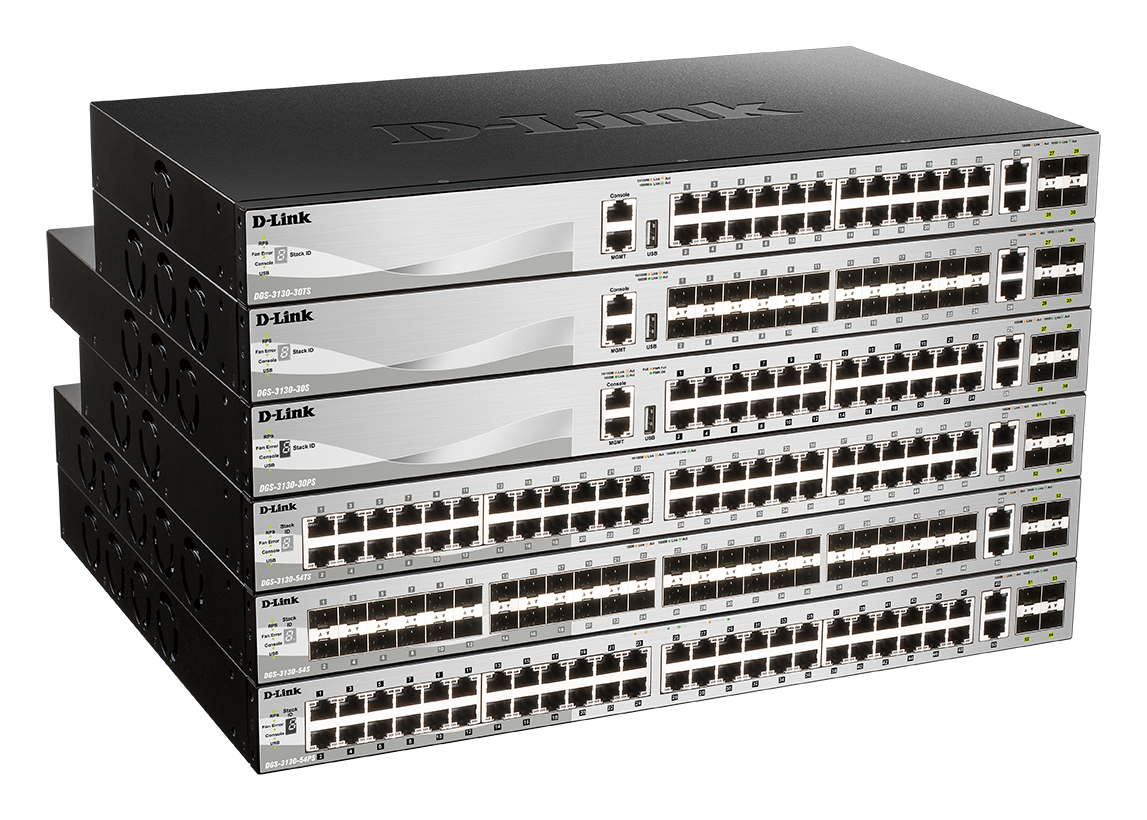

• Resilient Hardware Stacking
  Engineers can utilize the 10G SFP+ ports to create a high-speed stacking backplane with up to 80 Gbps of aggregate stacking bandwidth.

• Comprehensive Security Framework

  • IP-MAC-Port Binding (IMPB) to prevent unauthorized access
  • Access Control Lists (ACL) for granular traffic filtering
  • 802.1X Port-based and Host-based authentication

Specifications

What’s in the Box

• DGS-3130-54PS Managed Switch unit

• AC Power Cord

• Rack Mount Kit (Brackets and Screws)

• Console Cable (RJ-45 to RS-232)

• Quick Installation Guide

Why Choose This Managed Switch

• The hardware provides 6KV surge protection on all Ethernet ports to ensure operational continuity during electrical fluctuations.

• Redundant power support via the DPS-700 ensures the network remains active even if the internal power module fails.

• The device supports G.8032 Ethernet Ring Protection Switching (ERPS) to achieve sub-50ms recovery times in ring topologies.

• Administrative teams benefit from multiple management interfaces including Web UI, CLI via Console/Telnet, and SNMP v1/v2/v3.
