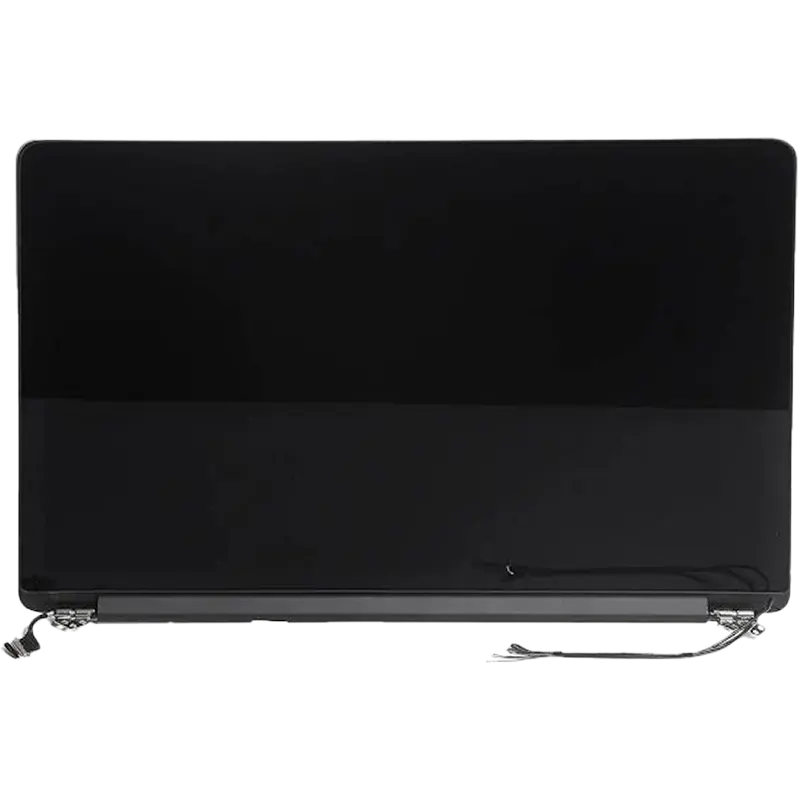

Apple MacBook Pro A1398 Screen Assembly 15.4-inch Retina 2880×1800

Complete Retina Lid for MacBook Pro 15-Inch

The MacBook A1398 screen is a factory-assembled lid for the 15-inch MacBook Pro Retina platform. The module bundles the 15.4-inch IPS panel, the glossy front glass, the aluminium rear cover, both hinges, the FaceTime HD camera, the antenna bar and the display ribbon into one service part. Technicians replace the whole clamshell rather than separating bonded layers.

The panel runs 2880 × 1800 at 220 ppi in a 16:10 aspect ratio. Apple specifies 300 nits brightness and a 900:1 contrast ratio across the Retina generation. The six-pin or twelve-pin webcam connector varies by production year, so buyers must match the assembly to the machine’s EMC number before ordering.

Apple fitted this A-number across the Mid 2012, Early 2013, Late 2013, Mid 2014 and Mid 2015 builds. Pinouts and webcam connectors differ between the 2012–2014 group and the 2015 revision, and the two groups do not interchange. The complete lid weighs approximately 680 g and ships in rigid protective packaging with the hinge side braced.

Key Features

• Complete Pre-Assembled Lid
  The unit arrives with the LCD, glass, aluminium shell, hinges, camera and antenna wiring already fitted.
• 15.4-Inch Retina IPS Panel
  • 2880 × 1800 native resolution at 220 ppi
  • 16:10 aspect ratio and glossy surface treatment
  • 300 nits typical brightness with a 900:1 contrast ratio
• Year-Specific Webcam Connector
  The camera harness terminates in a six-pin or twelve-pin connector depending on whether the donor machine is 2012–2014 or 2015.
• Integrated Antenna Bar
  The Wi-Fi and Bluetooth antenna assembly sits in the hinge cover and routes through the left hinge.
• Factory Hinge Tension
  Both hinges arrive pre-set to Apple’s lid-hold specification, which removes the need to transfer brackets.
• Display Ribbon Included
  The eDP ribbon terminates at the native logic-board connector footprint without adapters.
• Protective Transport Packaging
  The assembly ships in a double-walled carton with foam bracing around the hinge edge.

Specifications

What’s in the Box

• Complete 15.4-inch Retina display assembly
• Pre-fitted left and right hinges
• FaceTime HD camera and antenna harness
• eDP display ribbon
• Protective foam packaging

Why Choose the A1398 Assembly

• A complete lid removes the risk of cracking the bonded Retina stack during panel separation.
• Pre-set hinges and routed antenna cables shorten bench time on a lid swap.
• The native 2880 × 1800 panel restores the original pixel density and colour response.
• Year-specific connector options match both the 2012–2014 and 2015 logic boards.
• One part number covers five production years, which simplifies spares stocking for repair benches.
