2kW Vertical Axis Wind Turbine 48V Three-Phase PMG

Vertical-axis generator for low-wind battery charging

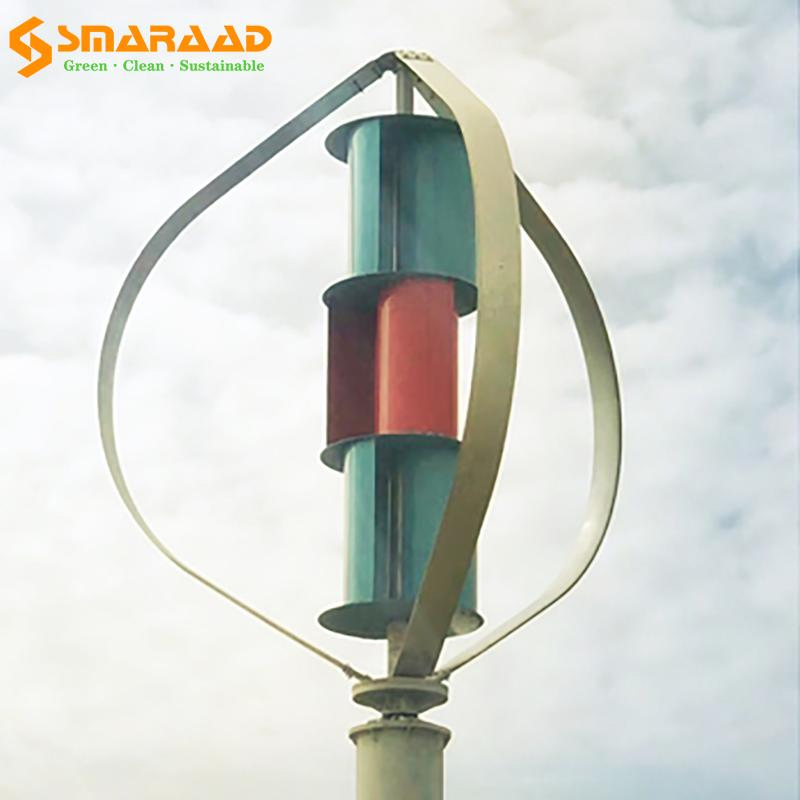

The 2kW vertical wind turbine converts wind energy into three-phase AC for a 48 V battery bank through a matched charge controller. It starts turning at roughly 2 m/s and reaches rated output near 12 m/s. The rotor spins on a vertical shaft, so the machine accepts wind from any direction without a yaw motor.

Five glass-fibre blades form the rotor, and the alternator uses a three-phase permanent magnet generator with magnetic suspension. Peak output reaches about 2.2 kW against a 2 kW continuous rating. Surviving wind speed sits near 35 m/s, which covers storm gusts on exposed sites.

Rotor diameter measures about 2.55 m with a swept height near 3 m. The alternator housing carries an IP54 rating for dust and splash protection. Working temperature spans -40 to +80 degrees Celsius. An electromagnetic brake and automatic speed regulation limit overspeed in high wind.

The controller rectifies the three-phase AC output and regulates charging into the 48 V bank. Cable runs from the tower base to the controller should stay short and sized for the rated current. Fit a dump load to absorb surplus energy when the battery reaches full charge. A manual brake switch isolates the rotor for service work.

Site the tower clear of buildings, trees and turbulence from roof edges. Guy the mast or bolt it to a concrete pad according to the tower drawing. Check blade torque and fastener tension after the first week, then at each seasonal service. Vertical-axis machines run at lower tip speed than horizontal turbines, which keeps noise lower in residential surroundings.

Key Features

• Vertical-axis rotor
  The machine accepts wind from any direction, so it needs no yaw mechanism or tail vane.

• Three-phase permanent magnet generator

  • Magnetic suspension reduces bearing load
  • Rated output of 2 kW with a 2.2 kW peak
  • 48 V nominal system voltage

• Five glass-fibre blades
  The blade set gives a rotor diameter near 2.55 m and a swept height around 3 m.

• Low start-up wind speed
  The rotor begins turning at about 2 m/s and reaches rated output near 12 m/s.

• Electromagnetic braking
  An electromagnetic brake and automatic speed regulation limit rotor speed in survival gusts.

• IP54 alternator housing
  The enclosure resists dust and water splash across an operating range of -40 to +80 degrees Celsius.

• Matched charge controller
  The controller rectifies the AC output and regulates charging into the 48 V battery bank.

Specifications

What’s in the Box

• Turbine rotor and alternator assembly

• Five glass-fibre blades

• Matched charge controller

• Fastener kit and installation manual

Why Choose This Turbine

• The vertical rotor captures turbulent, direction-shifting wind that a horizontal unit would misread.

• A low cut-in speed extends usable generation into light morning and evening breezes.

• The three-phase permanent magnet alternator produces power without brushes or slip rings.

• Electromagnetic braking protects the rotor through storm-level gusts.

• A matched controller simplifies commissioning against an existing 48 V battery bank.

• Lower tip speed keeps acoustic output below horizontal turbine levels on residential sites.
