Vention ECCB0 HDMI DVI Adapter Bi-Directional DVI-I 24+5 to HDMI 1.4 Black
Original price was: KSh 300.00.KSh 240.00Current price is: KSh 240.00. ex VAT
Vention ECCB0 HDMI DVI Adapter Bi-Directional DVI-I 24+5 to HDMI 1.4 Black
| Model | ECCB0 |
| Connector 1 | HDMI Type-A male |
| Connector 2 | DVI-I Dual Link (24+5) female |
| Standard | HDMI 1.4 |
| Max resolution | 1920 x 1080 at 60Hz |
| Direction | Bi-directional |
| Contacts | Gold plated |
| Housing | PVC moulding |
| Audio | Not supported over DVI |
| Power | Passive, none required |
| Weight | Approximately 30 g |
| Colour | Black |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Passive Two-Way Connector for Mixed HDMI and DVI Estates

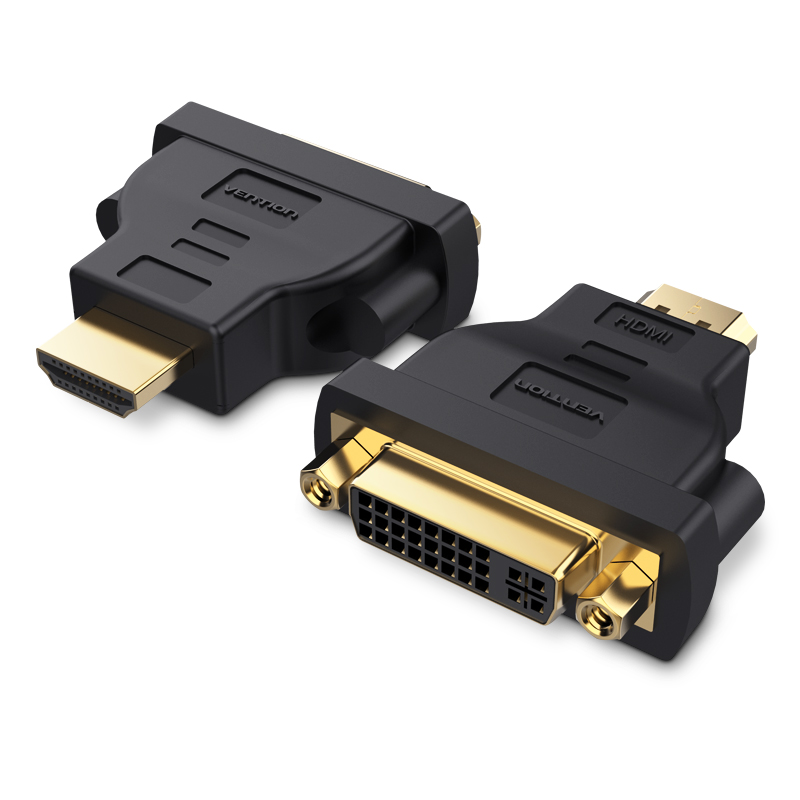

The Vention ECCB0 joins an HDMI male plug to a DVI-I 24+5 female socket. Signal passes in either direction, so the same part links an HDMI laptop to a DVI monitor or a DVI graphics card to an HDMI display. Gold-plated contacts and a straight, passive layout keep the assembly compact.
HDMI 1.4 signalling carries 1920 x 1080 at 60Hz and accepts 1920 x 1200 on compatible DVI displays. DVI-I dual-link wiring leaves the analogue pins unused during digital operation. The unit passes video only. DVI carries no audio channel, so route sound through a separate 3.5mm or optical path.
High-grade PVC moulding covers the shell, and thumbscrews on the DVI side tighten by hand for a stable mechanical joint. The assembly weighs roughly 30g and draws no power. Technicians can leave it attached to a cable end in AV carts, meeting rooms, and reception displays.
Key Features
Bi-Directional Signal Path
The passive wiring maps HDMI TMDS lanes onto DVI digital pins, so installers use one part for both conversion directions.HDMI Male to DVI-I Female
The male Type-A plug seats directly into a source or display, and the 24+5 socket accepts standard DVI cables.Gold-Plated Contact Set
- Plating limits oxidation across repeated mating cycles
- Lower contact resistance supports stable TMDS signalling at 1080p
Resolution Envelope
Supports 1920 x 1080 at 60Hz plus 1920 x 1200 on dual-link capable DVI panels.Thumbscrew Retention
Captive screws on the DVI shell lock the joint against pull force on trailing cable runs.Straight Passive Housing
The adapter introduces no active circuitry, so it adds no latency and needs no driver or power rail.Compact 30g Body
PVC moulding protects the internal contacts without adding bulk to a laptop bag or tool case.Video-Only Signal Handling
DVI interfaces omit an audio pair, so operators route sound separately when converting HDMI sources.
Specifications
| Feature | Specification |
|---|---|
| Model | ECCB0 |
| Device type | Passive bi-directional display adapter |
| Connector 1 | HDMI Type-A male |
| Connector 2 | DVI-I Dual Link (24+5) female |
| Standard | HDMI 1.4 |
| Maximum resolution | 1920 x 1080 at 60Hz; 1920 x 1200 on compatible DVI displays |
| Transmission direction | HDMI to DVI or DVI to HDMI |
| Contact plating | Gold plated |
| Housing material | PVC moulding |
| Termination | Straight |
| Retention | Hand-tightened thumbscrews on DVI side |
| Audio support | None over DVI; separate audio path required |
| Power requirement | None, passive |
| Driver requirement | Plug and play, no installation |
| Weight | Approximately 30 g |
| Colour | Black |
What’s in the Box
HDMI male to DVI-I 24+5 female adapter
Why Choose This Passive Adapter
One converter covers both directions, which simplifies spare-part holding for mixed display fleets.
Gold-plated pins resist corrosion in humid rooms and coastal sites where bare contacts degrade.
Passive construction removes a failure point, since no power brick or firmware sits in the signal chain.
The 24+5 socket accepts dual-link DVI cables, so longer runs do not need a second part.
Thumbscrews prevent accidental disconnection behind wall plates and under desk trays.
At roughly 30g, the connector adds negligible strain to a monitor port or graphics card bracket.
Joseph Mwangi (verified owner) –
Works exactly as described. I used it to connect an older monitor with DVI to my laptop’s HDMI port and the picture came through clear at 1080p.
Anne Wairimu (verified owner) –
Good adapter for the office projector. The bi-directional design means I can use it either way depending on the cable I have. Build feels solid.
Peter Ochieng (verified owner) –
Small and well-made. It fits snugly on both ends without any wobble. Video signal is stable.
Grace Njeri (verified owner) –
Does the job for connecting my desktop to a second screen. Note that it only carries video, not audio, which is fine for my setup.
Samuel Kipkorir (verified owner) –
Solid adapter with a good finish. I have used it for a month with no signal issues. Delivery was prompt.
Mercy Wanjiku (verified owner) –
Decent adapter but the DVI-I 24+5 connector is bulkier than expected, so it sticks out a bit from the back of my monitor. Functionally it works well.
Brian Otieno (verified owner) –
I have been using this Vention adapter for about six weeks to link an older DVI monitor to a newer HDMI graphics card. The bi-directional design is handy since I also use it the other way round on a second machine. The connectors fit firmly and the signal stays stable at 1080p with no flicker. The black finish matches my cables. One thing to note: it passes video only, so you need a separate audio path. Overall a reliable small accessory for mixed-port setups.
