Vention DV350VG DVI Female to VGA Male Adapter Black
Original price was: KSh 206.00.KSh 156.00Current price is: KSh 156.00. ex VAT
Vention DV350VG DVI Female to VGA Male Adapter Black
| Model | DV350VG |
| Input | DVI-I (24+5) female |
| Output | VGA male (D-Sub 15-pin HD) |
| Signal type | Analog RGBHV pass-through |
| Maximum resolution | 1920 x 1080 at 60 Hz |
| Contact plating | Gold-plated |
| Housing | Black PVC |
| Weight | 29.46 g |
| Power | Passive, no supply needed |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Legacy Display Interface Bridge
The Vention DVI to VGA adapter links a DVI-I output to a VGA display input without signal conversion hardware. It passes the analog RGBHV lines from the DVI-I connector to the HD15 plug. The passive design needs no power and adds no latency.
The input accepts a DVI-I (24+5) female socket, which carries both digital and analog pins. The output is a standard D-Sub 15-pin HD male plug for VGA monitors and projectors. Gold-plated contacts resist oxidation across repeated mating cycles. The adapter supports resolutions up to 1920 x 1080 at 60 Hz.
The housing uses a black PVC shell that measures approximately 40 mm long and weighs 29 g. An integrated moulded body removes the cable strain that affects dongle-style adapters. This unit works only in the DVI-I to VGA direction; it cannot convert VGA analog back to DVI digital. Source devices must supply analog signals on the DVI-I connector.
Key Features
DVI-I Analog Pass-Through
The adapter routes the four analog pairs (red, green, blue, H-sync, V-sync) from the DVI-I socket to the VGA plug.Passive Signal Path
No active circuitry, firmware or power supply sits between the source and display.Gold-Plated Contacts
Connector pins receive a gold flash that lowers contact resistance and limits corrosion.Compact Moulded Housing
- Black PVC body measures roughly 40 mm in length
- Gross weight near 29 g reduces port strain
- No external cable to manage behind equipment
Resolution Ceiling
The link supports 1920 x 1080 at 60 Hz, 3D frame packing and Full HD video.Directional Design
Signal flow runs from DVI-I female input to VGA male output only, so VGA-to-DVI conversion needs a different part.
Specifications
| Feature | Specification |
|---|---|
| Model | DV350VG |
| Part number | VEN-DV350VG |
| Connector A (input) | DVI-I (24+5) female socket |
| Connector B (output) | D-Sub 15-pin HD male (VGA) |
| Signal path | Analog RGBHV pass-through |
| Maximum resolution | 1920 x 1080 at 60 Hz |
| Supported video | Full HD 1080p, 3D frame packing |
| Contact plating | Gold-plated |
| Housing material | PVC |
| Colour | Black |
| Gross weight | 29.46 g |
| Length | Approx. 40 mm |
| Power requirement | None, passive adapter |
| Direction | DVI-I female to VGA male only |
| Compatibility | DVI-I (24+5) and (18+5) source outputs |
What’s in the Box
1 x Vention DV350VG DVI-I female to VGA male adapter, black
1 x quick start note
Why Choose Vention
The passive analog bridge adds no latency, so legacy monitors and projectors respond immediately to source changes.
Gold-plated pins maintain a stable connection through repeated desk and rack reconfiguration.
The moulded 29 g body places minimal mechanical load on graphics card and display ports.
A single integrated part replaces separate DVI and VGA cable assemblies in retrofit projects.
The adapter supports 1080p60 signals for standard office, classroom and signage displays.
Geoffrey Odhiambo (verified owner) –
We keep a few of these in the IT store for legacy monitors. The VGA side fits snugly and the pins have not bent after several plug cycles. Does the job without fuss.
Mercy Chebet (verified owner) –

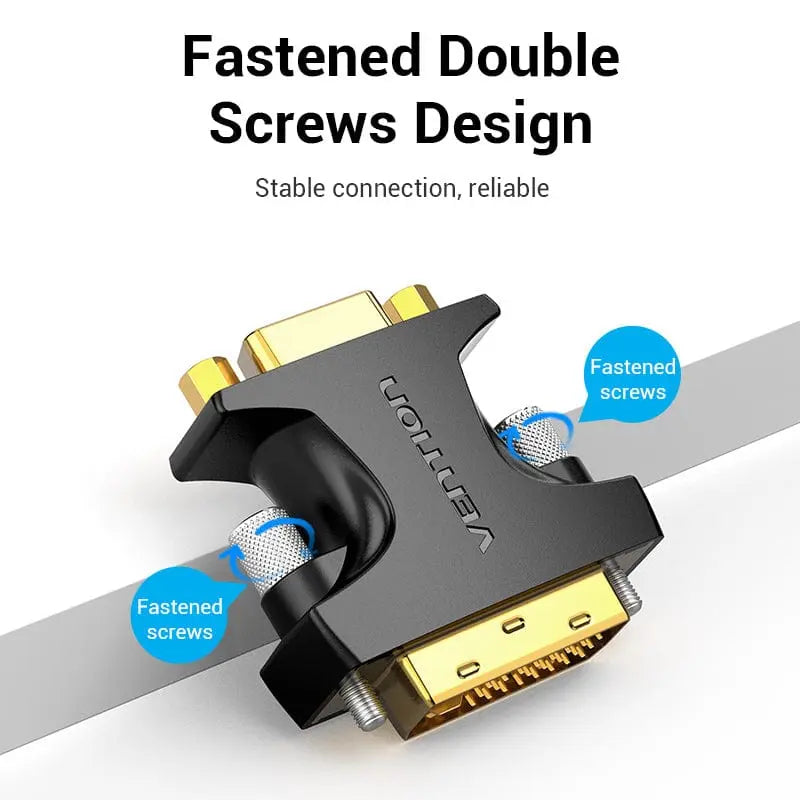

Simple adapter that does exactly what it says. Screws on both ends hold firm and the black finish matches our monitor cables.
