Ubiquiti UniFi Pro Max 24 PoE USW-Pro-Max-24-PoE Layer 3 Switch (400W)
Original price was: KSh 194,400.00.KSh 144,000.00Current price is: KSh 144,000.00. ex VAT
Ubiquiti UniFi Pro Max 24 PoE USW-Pro-Max-24-PoE Layer 3 Switch (400W)
| Feature | Specification |
|---|---|
| Ports | 24 RJ45 + 2 SFP+ |
| 2.5GbE PoE++ | 8 ports, up to 60W each |
| Gigabit PoE | 16 ports (8 PoE+, 8 PoE++) |
| SFP+ | 2 x 10G |
| Power Budget | 400W |
| Switching Capacity | 112 Gbps |
| Layer | Layer 3 |
| Mounting | 1U rack |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
24-Port Multi-Gig Layer 3 Switching

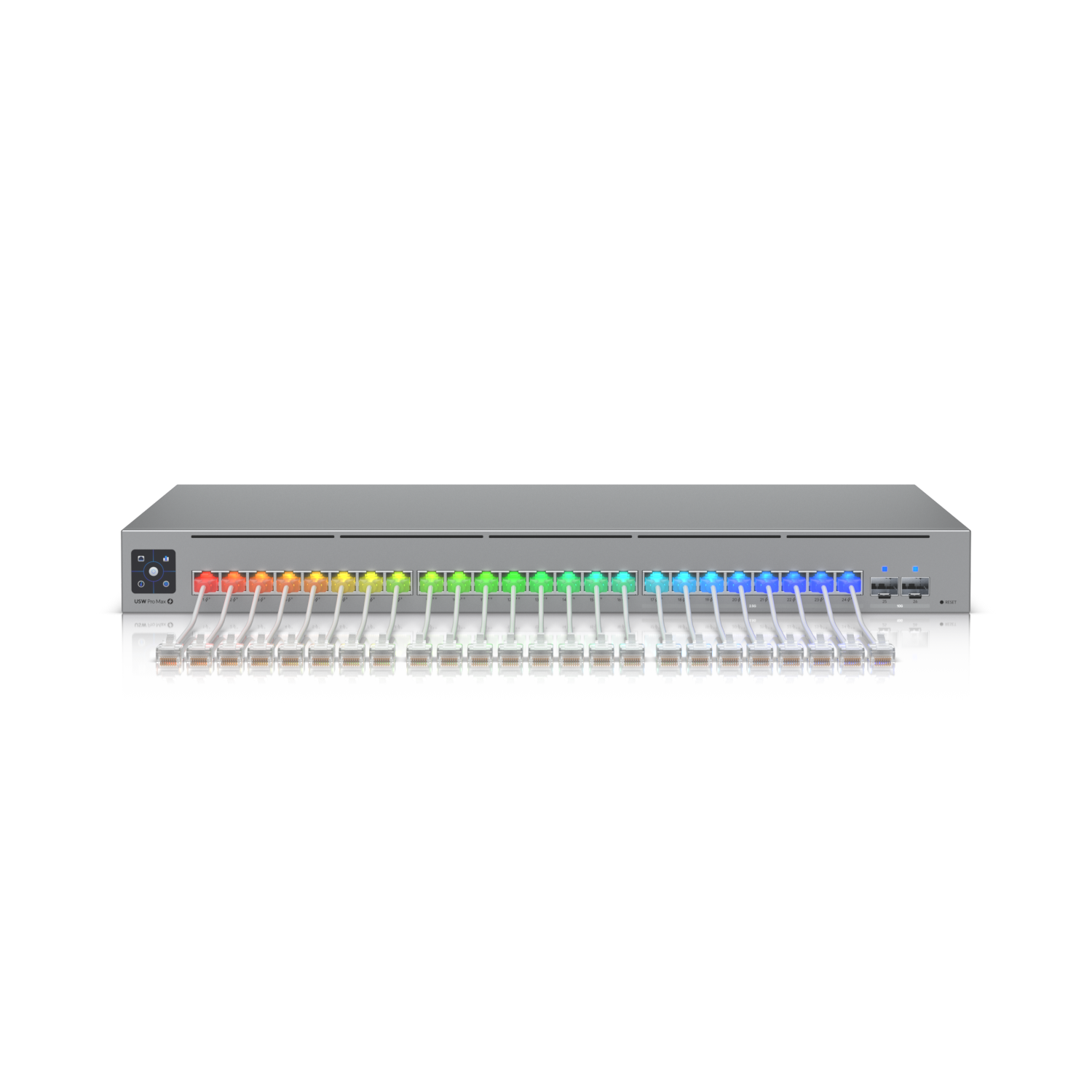

The Ubiquiti USW-Pro-Max-24-PoE is a rack-mountable Layer 3 switch with 24 RJ45 ports and a 400W power budget. It pairs 2.5GbE PoE++ delivery with Etherlighting status indication for WiFi 7 access points, cameras and high-draw edge hardware.
Eight 2.5GbE ports deliver PoE++ at up to 60W each. Sixteen Gigabit ports complete the array, split into eight PoE+ ports at 30W and eight PoE++ ports at 60W. Two 10G SFP+ cages carry uplinks or aggregation traffic. The shared 400W budget covers every powered port in the chassis.
Non-blocking throughput reaches 56 Gbps against a 112 Gbps switching capacity, so the array forwards at line rate. Layer 3 routing, static routes and inter-VLAN forwarding run through UniFi Network firmware. An internal 450W AC/DC supply feeds the unit from a single rack feed.
The 1U chassis measures 442 x 325 x 43.7 mm and weighs 5.1 kg without brackets. Front-to-rear airflow suits wiring closets and small server rooms. Etherlighting LEDs show port speed, link state and power draw at a glance.
Key Features
Multi-Gig PoE++ Port Bank
Eight 2.5GbE RJ45 ports each supply up to 60W for WiFi 7 APs and pan-tilt-zoom cameras.Shared 400W Power Allocation
The internal supply distributes 400W across all powered ports with per-port budgeting in the controller.Etherlighting Port Status
- Color-coded link speed and activity indication
- Per-port power draw visibility from the rack
Layer 3 Routing Engine
Hardware inter-VLAN forwarding and static routes reduce upstream router load on segmented networks.Dual 10G SFP+ Cages
Two SFP+ slots accept 10G optics or DAC cables for backbone and server uplinks.Rack-Mount Chassis
A 1U steel enclosure ships with mounting brackets for standard 19-inch cabinets.
Specifications
| Feature | Specification |
|---|---|
| Model | USW-Pro-Max-24-PoE |
| Total Ports | 24 RJ45 + 2 SFP+ |
| 2.5GbE PoE++ Ports | 8, up to 60W each |
| Gigabit RJ45 Ports | 16 (8 PoE+ at 30W, 8 PoE++ at 60W) |
| SFP+ Ports | 2 x 10G |
| Total Power Budget | 400W |
| Non-Blocking Throughput | 56 Gbps |
| Switching Capacity | 112 Gbps |
| Layer | Layer 3 |
| Management | UniFi Network |
| Power Supply | Internal AC/DC, 450W |
| Dimensions | 442 x 325 x 43.7 mm |
| Weight | 5.1 kg (without brackets) |
| Mounting | 1U rack |
What’s in the Box
Pro Max 24 PoE switch unit
Rack-mount brackets and screws
Power cord
Quick start guide
Why Choose Ubiquiti Pro Max 24 PoE
One 1U chassis covers 24 powered devices with mixed 2.5GbE and Gigabit access ports.
Layer 3 forwarding keeps inter-VLAN traffic off the core router in segmented deployments.
Dual 10G uplinks leave headroom for aggregation as access port counts grow.
Controller-based power budgeting prevents over-subscription of the 400W envelope.
