Ubiquiti U-PoE++ PoE++ Adapter (60W) – 802.3bt Gigabit Injector

60W 802.3bt PoE Injector

The Ubiquiti U-PoE++ supplies up to 60W over one Ethernet cable to UniFi PoE++ access points, cameras, and other 802.3bt devices. This 60W PoE injector removes dependence on a PoE switch port and provides a Gigabit LAN connection at the same time.

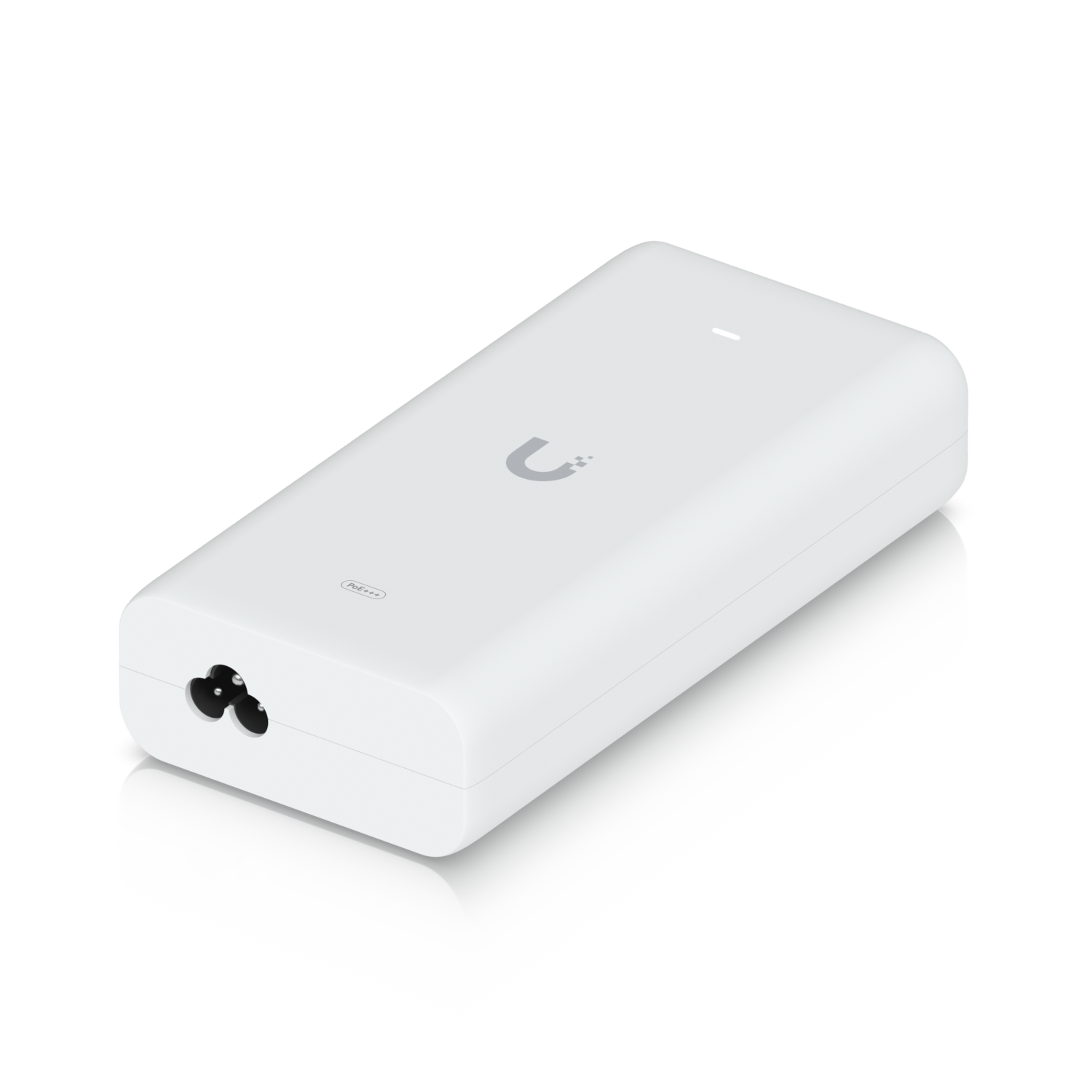

The adapter accepts 100–240V AC at 50/60Hz and outputs 48V DC at 1.25A. Four-pair powering uses pins 1, 2, 4, 5 positive and 3, 6, 7, 8 negative. An IEC-320 C6 inlet connects the included power cable.

Surge, peak-pulse, and overcurrent protection guard the link. The shielded RJ45 socket carries data and PoE output. Operating temperature spans 0 to 40°C, with storage from -30 to 70°C and 10–95% noncondensing humidity.

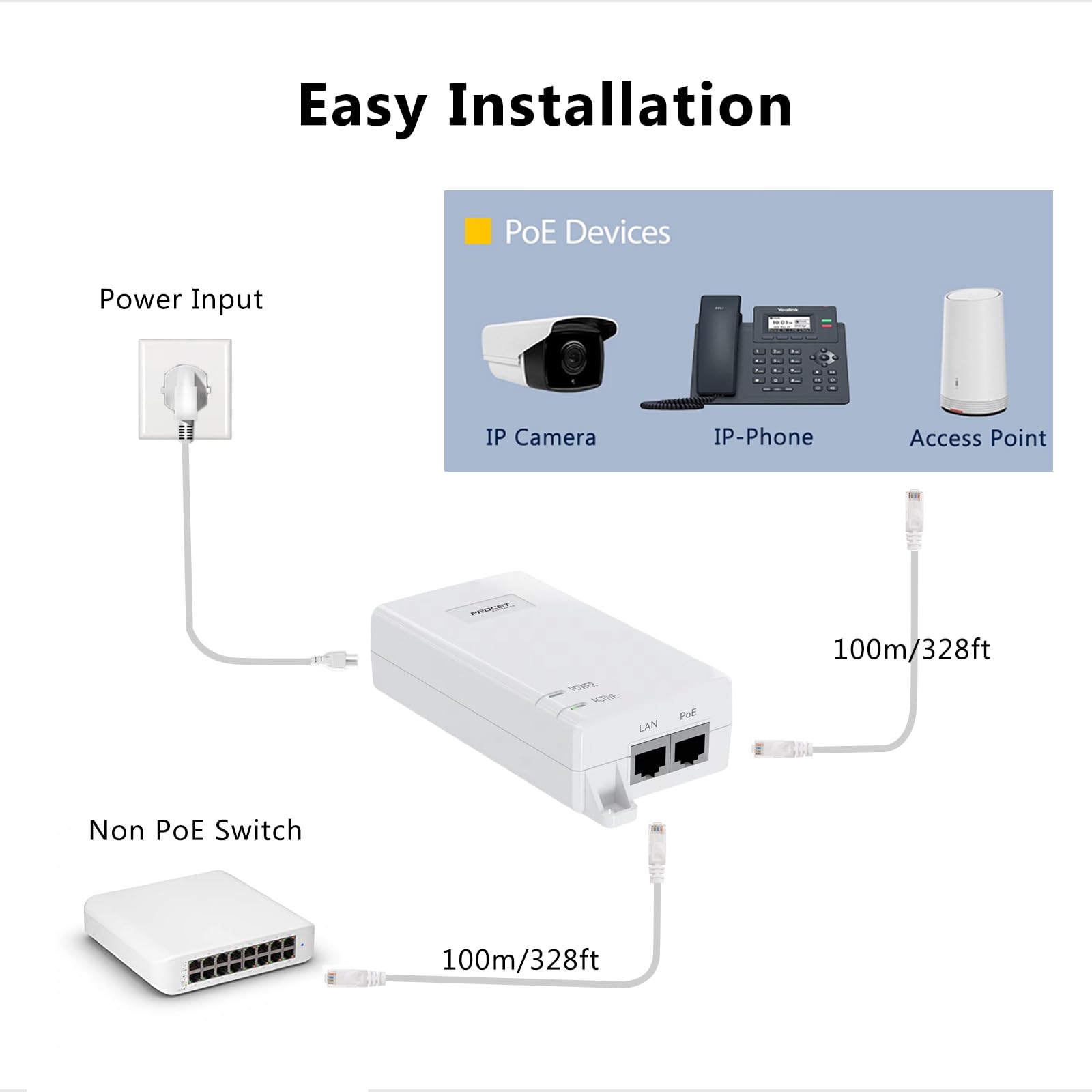

Deployment follows standard structured cabling practice. The injector sits between the LAN switch and the powered device, so the data run remains Gigabit while the adapter adds 60W. The compact housing fits tight telecom rooms and wall cabinets.

Key Features

• 60W 802.3bt Output
  The single-port PoE++ PSE delivers 48V DC at 1.25A for high-draw UniFi hardware.

• Four-Pair Powering
  Pins 1, 2, 4, 5 positive and 3, 6, 7, 8 negative carry power over the full cable pair set.

• Gigabit Data Path

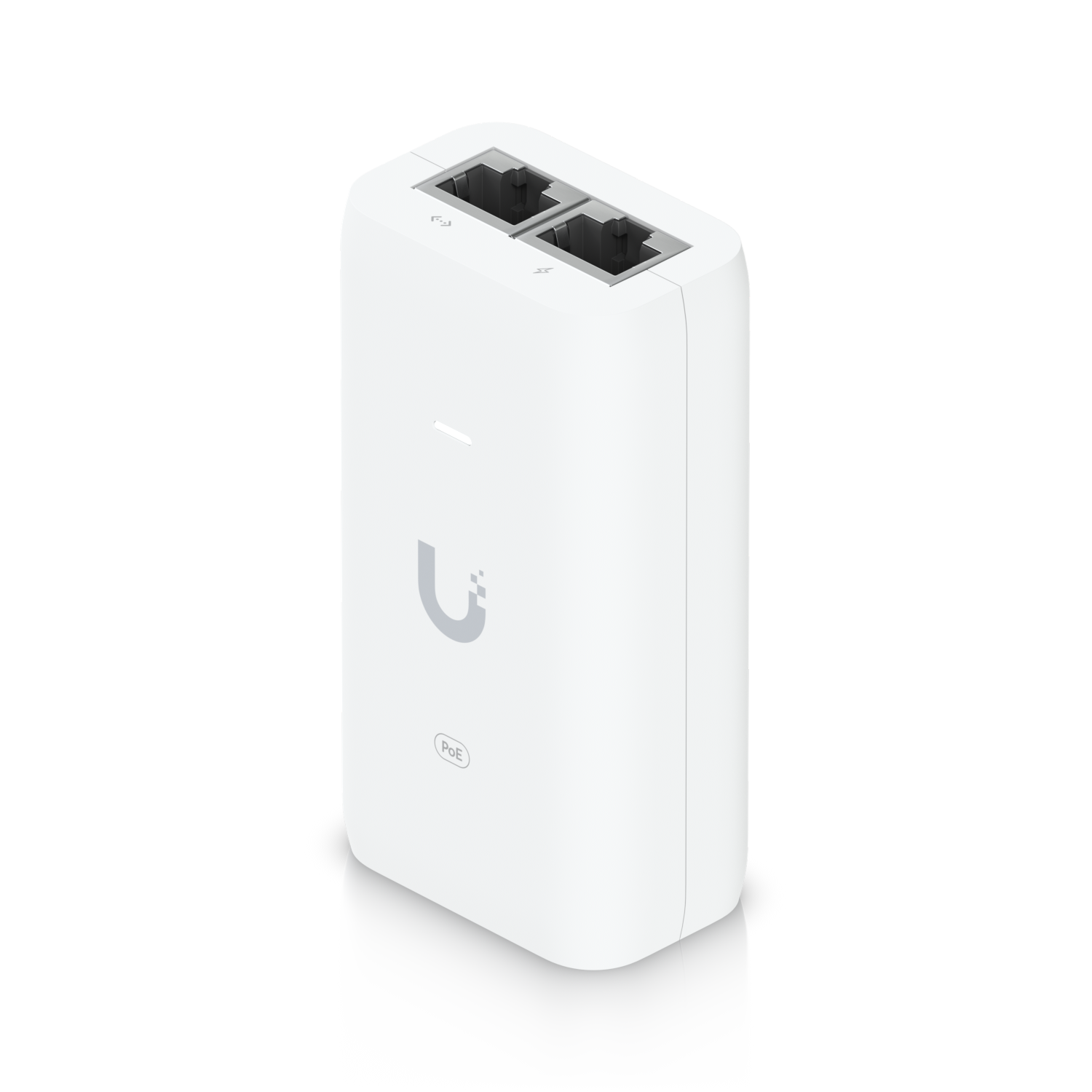

  A shielded RJ45 socket accepts LAN data and passes it to the powered device without a separate uplink.

• Integrated Electrical Protection
  Surge, peak-pulse, and overcurrent circuits limit fault energy on the power and data paths.

• Universal AC Input
  The 100–240V AC input at 50/60Hz supports regional power systems through an IEC-320 C6 inlet.

• Status Monitoring
  An LED indicator reports operating state without requiring a console connection.

• Compact Housing
  The 106 x 63 x 34 mm enclosure weighs 210 g.

Specifications

What’s in the Box

• PoE++ Adapter (60W) U-PoE++

• AC power cable

Why Choose Ubiquiti

• The 802.3bt adapter powers UniFi devices without replacing an existing non-PoE switch.

• A single-port PoE++ PSE simplifies wireless mesh and camera drops where local mains power is unavailable.

• The Gigabit PoE adapter preserves LAN throughput while adding 60W of remote power.

• Four-pair power injector design and 1500A surge discharge protection support demanding link paths.

• NDAA compliance and CE, FCC, IC, UKCA, KC, CCC, and RoHS certifications meet regulated procurement requirements.
