TP-Link Deco X20 AX1800 Whole Home Mesh Wi-Fi 6 System (3-Pack)

AX1800 Mesh Wi-Fi 6 Platform

The TP-Link Deco X20 AX1800 distributes Wi-Fi 6 across four to six-bedroom homes using three mesh nodes. Each unit carries two Gigabit Ethernet ports with WAN/LAN auto-sensing and supports wired backhaul.

The dual-band radio set delivers 1,201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz under 802.11ax. Internal antennas, beamforming and BSS Color extend reach, while OFDMA and MU-MIMO schedule parallel traffic from more than 150 clients.

Three nodes cover up to 5,800 square feet across floors and outbuildings. Each unit runs from a 12V adapter and operates between 0°C and 40°C. The Deco app handles setup, guest access, parental controls and firmware updates.

Key Features

• Dual-Band AX1800 Throughput
  The 5 GHz radio reaches 1,201 Mbps and the 2.4 GHz radio reaches 574 Mbps under 802.11ax.

• Two Gigabit Ports Per Node

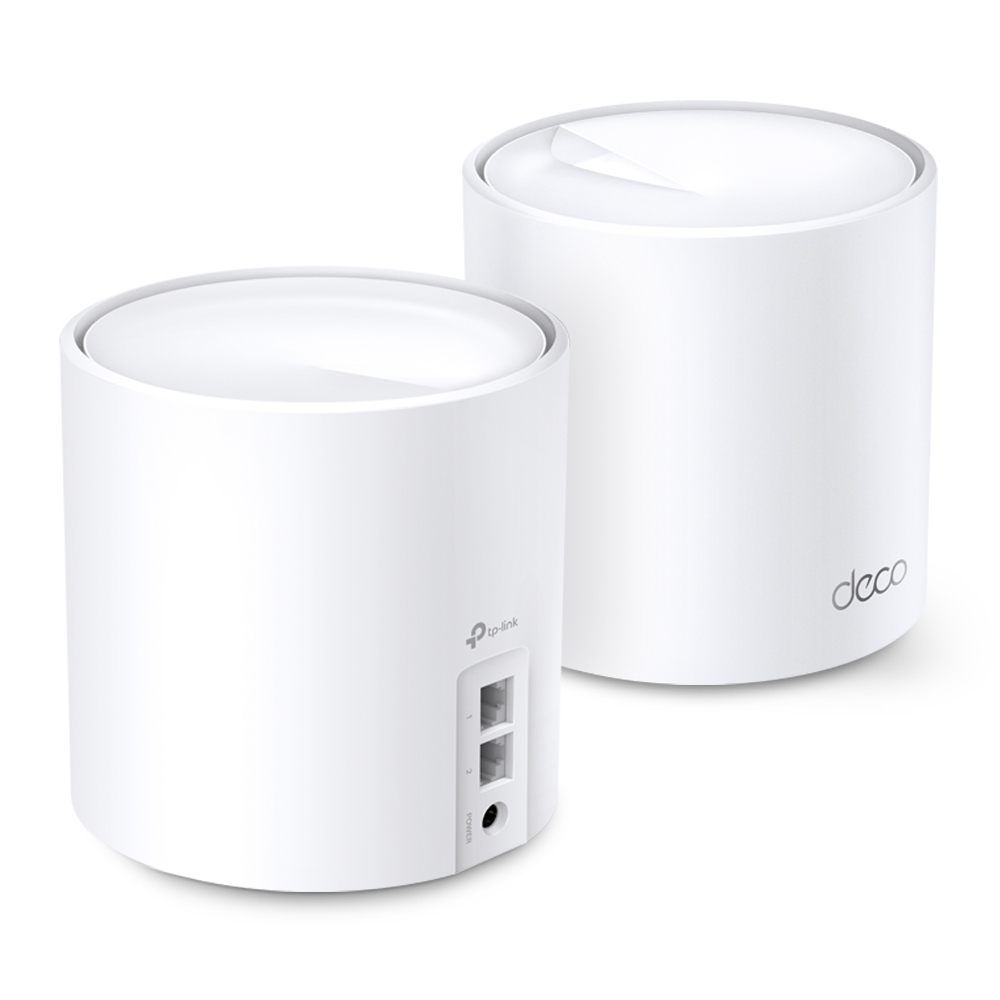

  Each unit provides two RJ45 ports with WAN/LAN auto-sensing for modems, switches and wired clients.

• Optional Ethernet Backhaul
  Wired links between nodes cut wireless overhead and hold throughput steady across floors.

• WPA3 and HomeCare Security
  The platform supports WPA3-Personal, an SPI firewall, antivirus and malicious site filtering.

• Beamforming and BSS Color

  • Concentrates signal energy toward active clients.
  • Reduces co-channel interference from neighbouring networks.

• MU-MIMO and OFDMA Scheduling
  Both features serve several devices in the same transmission window instead of queuing them.

• Seamless Roaming
  The mesh protocol hands clients between nodes without dropping the session or forcing a reconnect.

• Deco App Management
  The mobile app configures the network, sets parental controls, builds guest SSIDs and pushes firmware updates.

• Guest Network Separation
  Dedicated 2.4 GHz and 5 GHz guest SSIDs isolate visitor traffic from internal hosts.

Specifications

What’s in the Box

• 3 mesh units

• 1 RJ45 Ethernet cable

• 3 power adapters

• 1 quick installation guide

Why Choose Deco X20

• The AX1800 mesh system handles 150+ devices without queue collapse under OFDMA and MU-MIMO scheduling.

• Two auto-sensing ports on every node remove the need for a separate switch at each location.

• Ethernet backhaul preserves throughput across floors and outbuildings on larger properties.

• WPA3 encryption and HomeCare tools deliver network-level filtering without extra subscriptions.

• The 3-pack mesh network ships pre-paired, so the app finishes setup in a few minutes.
