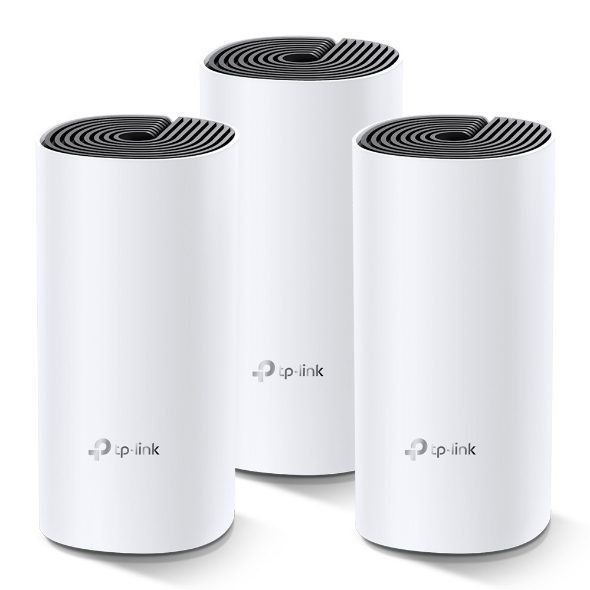

TP-Link Deco M4 (3-Pack) AC1200 Dual-Band Mesh Wi-Fi System with 2x Gigabit Ports per Unit

Three-Node Wireless Mesh Kit

The TP-Link Deco M4 3-pack builds one unified wireless network across a home using TP-Link Mesh technology. Three nodes share a single SSID and pass client traffic between units as devices move. The kit supports up to 100 connected devices and expands by adding further Deco units to the same network.

Each node runs a Qualcomm processor with two internal dual-band antennas. The 5 GHz radio delivers 867 Mbps under 802.11ac while the 2.4 GHz radio reaches 300 Mbps under 802.11n, giving an AC1200 combined rating. MU-MIMO, beamforming, band steering and AP steering manage airtime across both bands.

Two Gigabit Ethernet ports per unit auto-sense WAN or LAN, so any node serves as router or wired access point. Optional Ethernet backhaul links nodes over Cat5e or Cat6 cabling. Units measure 90.7 mm in diameter by 190 mm tall and draw power from a 12 V / 1.2 A adapter.

Key Features

• Self-Healing Mesh Backbone
  Nodes re-route traffic automatically if one unit loses power or link, keeping the network reachable.

• Dual-Band AC1200 Radios
  The 5 GHz chain carries 867 Mbps and the 2.4 GHz chain carries 300 Mbps for mixed-device loads.

• Two Gigabit Ports per Node

  • WAN/LAN auto-sensing removes uplink port confusion during install.
  • Wired backhaul bypasses the radio on nodes near existing cabling.

• Qualcomm Processor and Internal Antennas
  Two internal dual-band antennas per unit handle beamforming and MU-MIMO scheduling.

• Router and Access Point Modes
  A mode switch covers routed deployments and wired uplinks behind an existing gateway.

• WPA2-PSK Security and Guest Networks
  Separate 2.4 GHz and 5 GHz guest SSIDs isolate visitor traffic from the primary network.

• Deco App Management
  The app handles setup, per-device prioritisation, parental profiles, monthly reports and remote management.

Specifications

What’s in the Box

• 3 x Deco M4 units

• 3 x power adapters

• 1 x RJ45 Ethernet cable

• Quick installation guide

Why Choose This Mesh Kit

• Three nodes cover multi-storey and L-shaped layouts that a single router leaves with weak corners.

• Every unit carries the same port count, so any node can become the WAN edge during reconfiguration.

• Ethernet backhaul uses existing structured cabling to lift throughput between floors.

• The Qualcomm platform and dual-band antennas sustain 4K streaming and IP camera traffic together.

• Nodes from later Deco models join the same network, which protects the initial hardware outlay.
