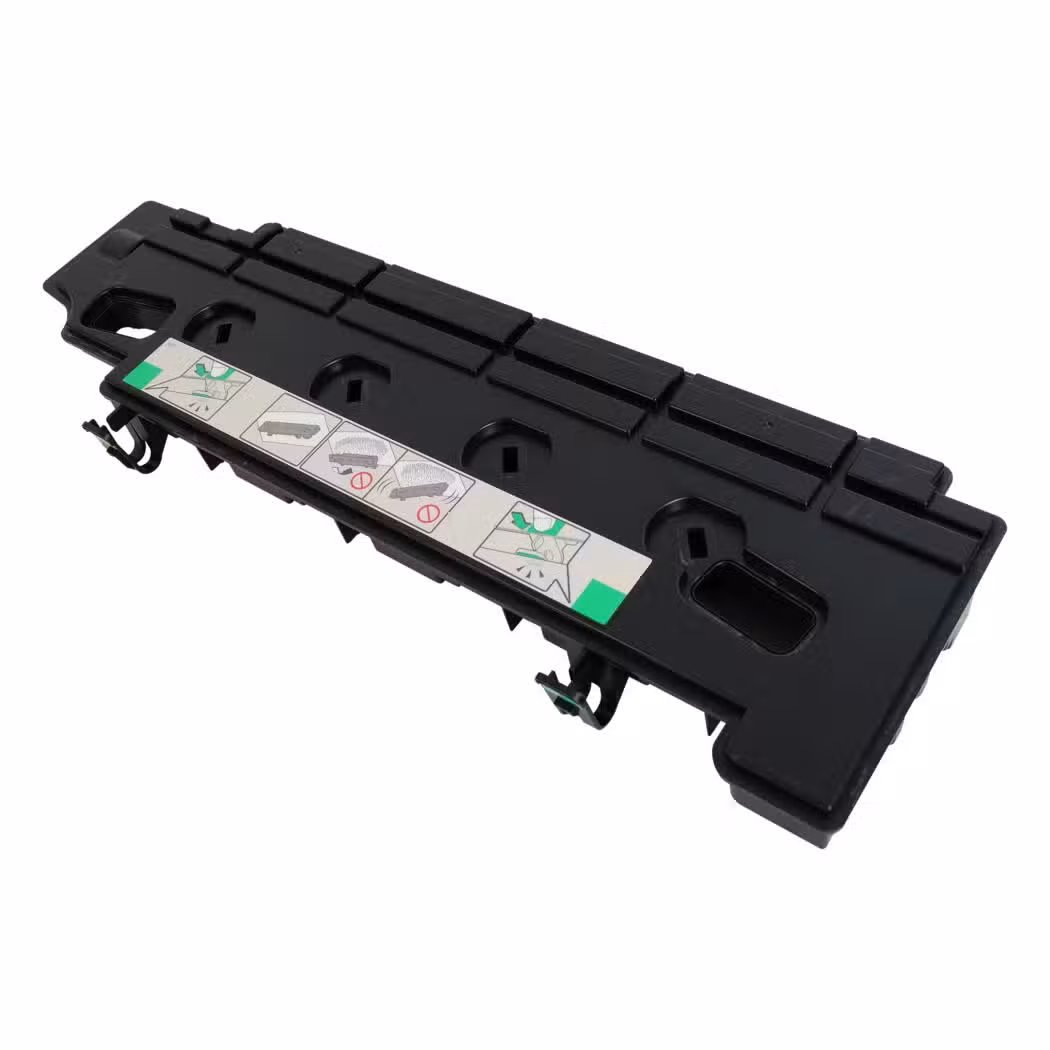

Toshiba TB-FC505E Waste Toner Collector 6AG00007690 56,000 Pages

Waste Toner Collection Unit for Colour e-STUDIO MFPs

The Toshiba TB-FC505E waste toner collector captures excess toner that the cleaning stations strip from the drums and the transfer belt. It fits a wide set of Toshiba e-STUDIO colour multifunction printers. The sealed container keeps waste toner away from the paper path and the imaging components.

The container carries Toshiba part number 6AG00007690 and the model code TB-FC505E. Toshiba rates the duty cycle at 56,000 pages. A full container triggers a message on the control panel, and the machine stops until the unit is replaced. The collector seats at the front of the engine and connects to the waste toner transport path from the cleaning blade assemblies.

Fitment covers the e-STUDIO 2505AC, 2515AC, 2555CSE, 3005AC, 3015AC, 3055CSE, 3505AC, 3508LP, 3515AC, 3555CSE, 4505AC, 4515AC, 4555CSE, 5005AC, 5015AC and 5055CSE. The unit measures 575 x 205 x 135 mm and weighs about 0.95 kg. Replace the collector when the panel flags it full or during a scheduled maintenance visit. Do not reuse a container after emptying it, because the seal and internal auger wear with each cycle.

Installation requires powering the machine down and opening the front cover. Release the retaining clip, slide the full collector out, and fit the new unit until it clicks. Reset the waste toner counter through the service menu before returning the machine to users. Store spare containers upright and sealed to keep the internal auger clear.

Key Features

• Sealed Collection Chamber
  The closed container traps fine toner dust and limits contamination inside the engine bay.

• 56,000 Page Duty Cycle

  • Rated capacity for high-volume colour print runs
  • Fewer replacement stops on a busy MFP
  • Panel warning before the container reaches full

• Broad e-STUDIO Coverage
  One part number fits sixteen colour models from the 2505AC through the 5055CSE.

• Front Access Fitment
  The collector slides out of the front rail without removing the fuser or transfer belt.

• Retaining Clip
  A spring clip holds the unit in place and releases by hand for a tool-free swap.

• Internal Auger
  A screw conveyor moves waste toner evenly into the chamber instead of letting it pile at the inlet.

• Genuine Toshiba Part
  The unit carries the original 6AG00007690 number and the TB-FC505E model code.

Specifications

What’s in the Box

• One waste toner collector

• Protective packaging

Why Choose the TB-FC505E

• A genuine collector matches the engine firmware, so the full-level warning reads correctly.

• The 56,000 page rating suits workgroup machines running colour documents all day.

• Front rail access keeps replacement inside a routine operator task.

• Sealed construction limits toner dust around the imaging components.

• One part number covers sixteen e-STUDIO models, which simplifies spares holding.

• The internal auger prevents toner packing at the inlet on long print runs.
