Toshiba T-FC200P-M Magenta Toner Cartridge 33,600 Pages for e-STUDIO 2000AC 2500AC

Colour Toner for e-STUDIO 2000AC and 2500AC

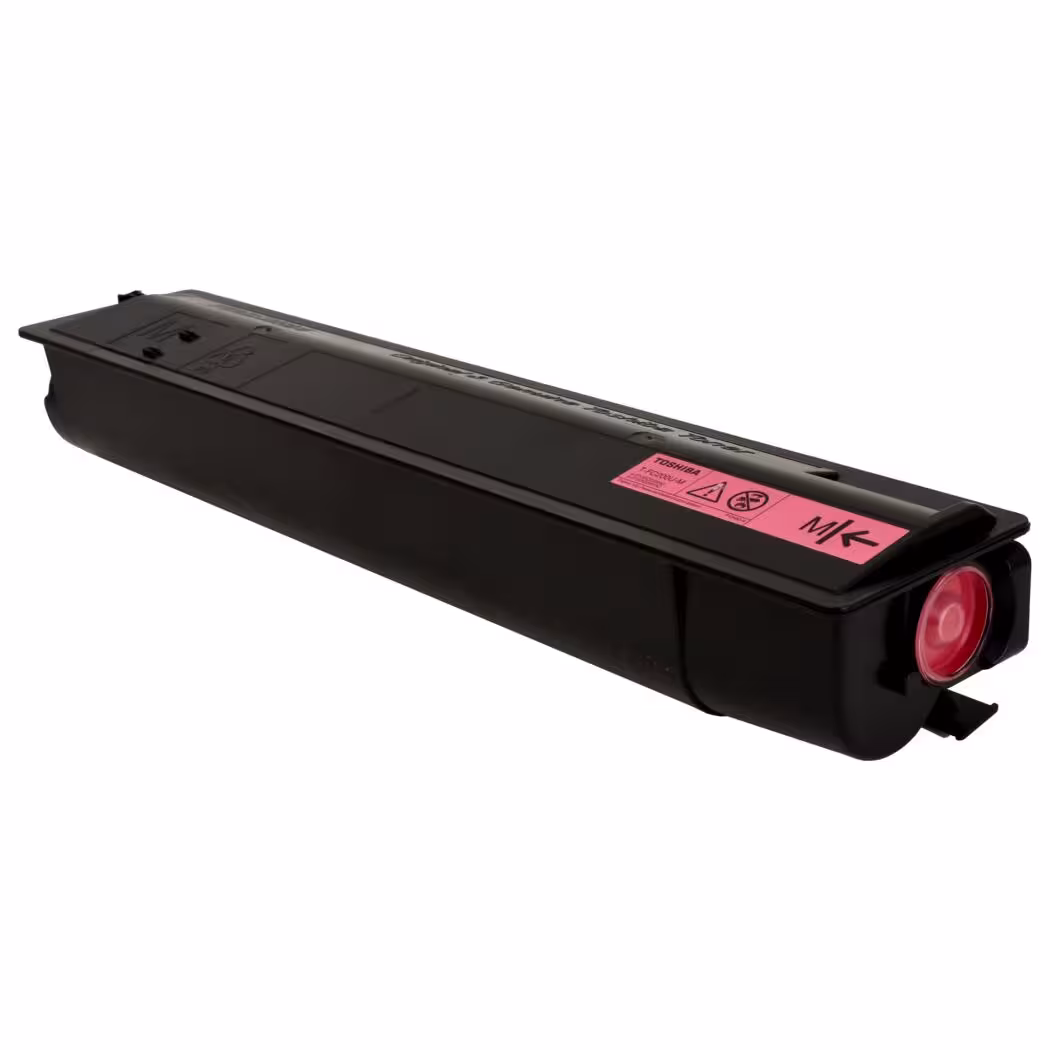

The Toshiba T-FC200P-M toner is the magenta cartridge for the e-STUDIO 2000AC and 2500AC colour multifunction printers. It carries part number 6AG00006805. Toshiba rates the cartridge at approximately 33,600 A4 pages at 5 percent coverage.

The cartridge ships with a 570 g toner load. A sealed toner outlet and an integrated ID chip let the machine track remaining volume. The chip reports magenta consumption separately from cyan, yellow and black. This keeps colour balance stable across a long print run. Toshiba specifies the yield under ISO/IEC 19798 for colour cartridges.

Technicians release the front cover, pull the empty cartridge straight out, and slide the new unit along its guide rails until it clicks. The machine resets the magenta counter automatically after the chip handshake. Confirm colour registration by running a test pattern after the swap. Keep the cartridge in its sealed bag until the machine is ready.

Storage conditions matter for colour toner. Heat and direct sunlight cause the powder to clump inside the hopper. Store cartridges between 10 and 35 degrees Celsius and away from humidity. Do not shake the cartridge violently, because the developer bead mixture separates from the toner. A gentle side-to-side rock before fitting is enough to loosen settled powder.

The e-STUDIO 2000AC and 2500AC accept the same T-FC200P family across all four colours. Service teams can stock one magenta box per machine and replace it independently. That approach avoids discarding a partly used three-colour set when only magenta runs out.

Key Features

• Magenta Toner Load
  The cartridge carries 570 g of magenta toner for colour copier output.

• ID Chip Consumption Tracking

  • The chip reports magenta volume separately from the other colours.
  • The machine resets the magenta counter after the handshake.

• ISO/IEC 19798 Colour Yield
  Toshiba rates the cartridge at roughly 33,600 A4 pages at 5 percent coverage.

• Sealed Toner Outlet
  The outlet contains powder during transport and fitting.

• Tool-Free Cartridge Swap
  Guide rails seat the unit without fasteners or adjustment.

Specifications

What’s in the Box

• One T-FC200P-M magenta cartridge

• Protective bag

• Installation note

Why Choose the T-FC200P-M

• The chip reports magenta volume independently, so colour balance stays predictable.

• The 33,600-page rating matches the duty cycle of workgroup colour copiers.

• Guide rails and a sealed outlet keep the swap clean and tool-free.

• Separate colour boxes avoid discarding unused cyan, yellow and black toner.

• Genuine Toshiba toner keeps particle size and charge within design tolerances.
