Toshiba OD-2505 Black Drum Unit 6LJ83358000 for e-STUDIO 55k Pages

Photoconductor Drum for Toshiba Mono Copiers

The Toshiba OD-2505 drum is the black photoconductor cylinder for a broad range of Toshiba e-STUDIO mono multifunction machines. Toshiba codes the part as 6LJ83358000 and OD-2505. The unit carries a rated yield of approximately 55,000 pages at 5 percent coverage on A4.

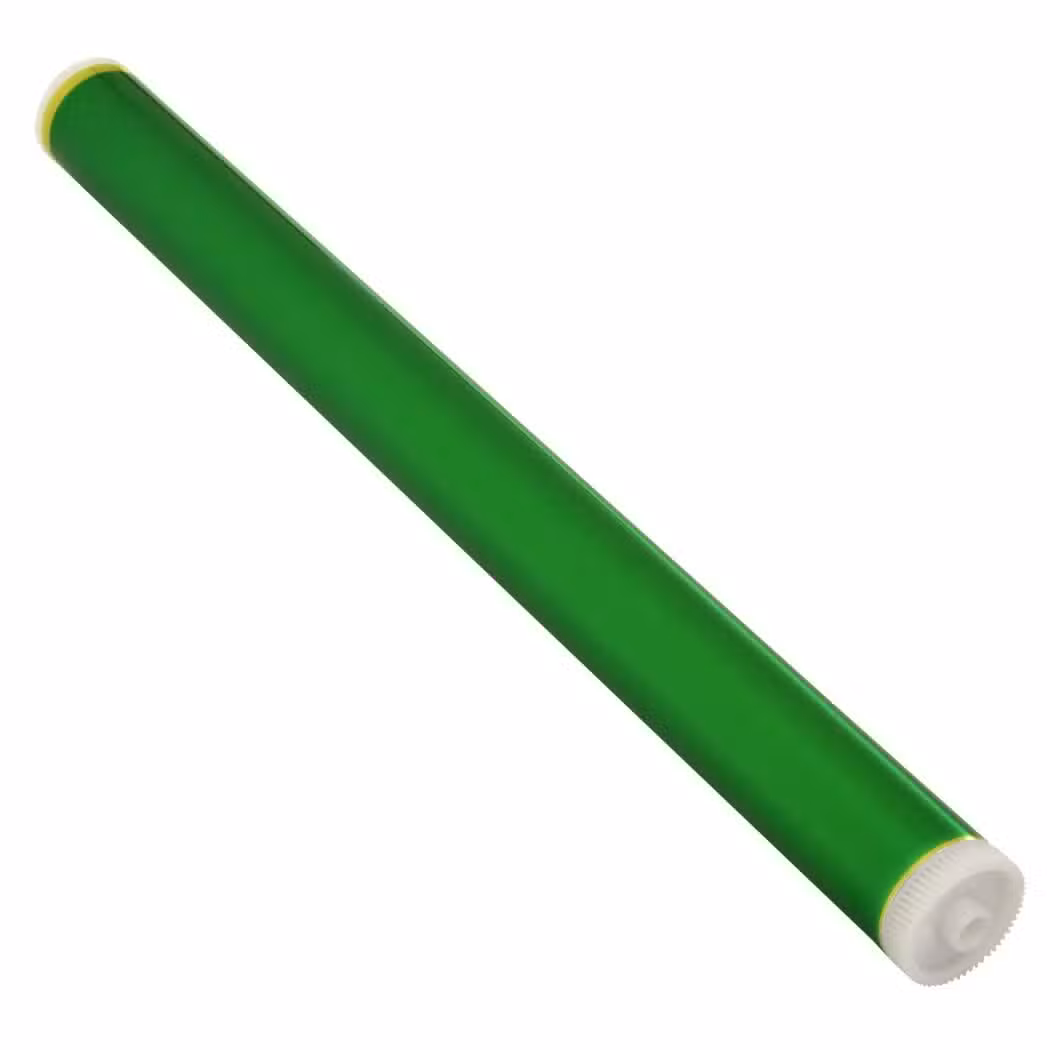

The drum uses an organic photoconductor coating on an aluminium cylinder. The layer holds a uniform charge across the page width, which keeps black text and line art sharp. A protective shutter covers the surface during handling and transport. The cylinder seats on the existing drum shaft inside the imaging housing.

Technicians fit the drum after removing the imaging unit from the machine. Release the drum lock, slide the old cylinder out, and seat the new one on the shaft. Confirm the drum turns freely before closing the housing. The machine resets the drum counter through the service menu after installation.

Store the drum in its sealed bag until fitment. Exposure to light degrades the photoconductor coating over time. Handle the cylinder by its ends and avoid touching the coated surface. Clean the drum with a dry lint-free cloth only if visible dust settles during service. Check the drum shaft and the imaging housing for toner buildup before fitting the new part.

Compatible models include the e-STUDIO 2006, 2007, 2306, 2307, 2505, 2505F, 2505H, 2506, 2507, 2303A, 2303AM, 2309A, 2323AM, 2523A, 2523AD, 2802AF, 2802AM, 2803A and 2809A. Confirm the machine plate before ordering, because Toshiba uses different drum assemblies across model years. A mismatch will cause poor image quality and premature wear on the drum surface.

Key Features

• Black OPC Cylinder
  The organic photoconductor coating holds a uniform charge across the page width.

• Rated Page Yield

  • Approximately 55,000 pages at 5 percent coverage
  • Yield measured on A4 at standard text density
  • Drum counter resets through the service menu

• Protective Shutter
  A sliding cover shields the coated surface during handling and storage.

• Aluminium Substrate
  The cylinder body resists deformation and holds shaft alignment.

• Broad Model Coverage
  Fits e-STUDIO 2006 through 2809A series mono copiers.

Specifications

What’s in the Box

• OD-2505 black drum cylinder

• Protective packaging

Why Choose the OD-2505

• A single cylinder restores image quality on supported mono copiers.

• The 55,000-page rating suits workgroup print volumes.

• Sealed packaging protects the coating before installation.

• Genuine Toshiba supply keeps charge behaviour within design tolerances.

• Broad model coverage spans the 2006 to 2809A range.
