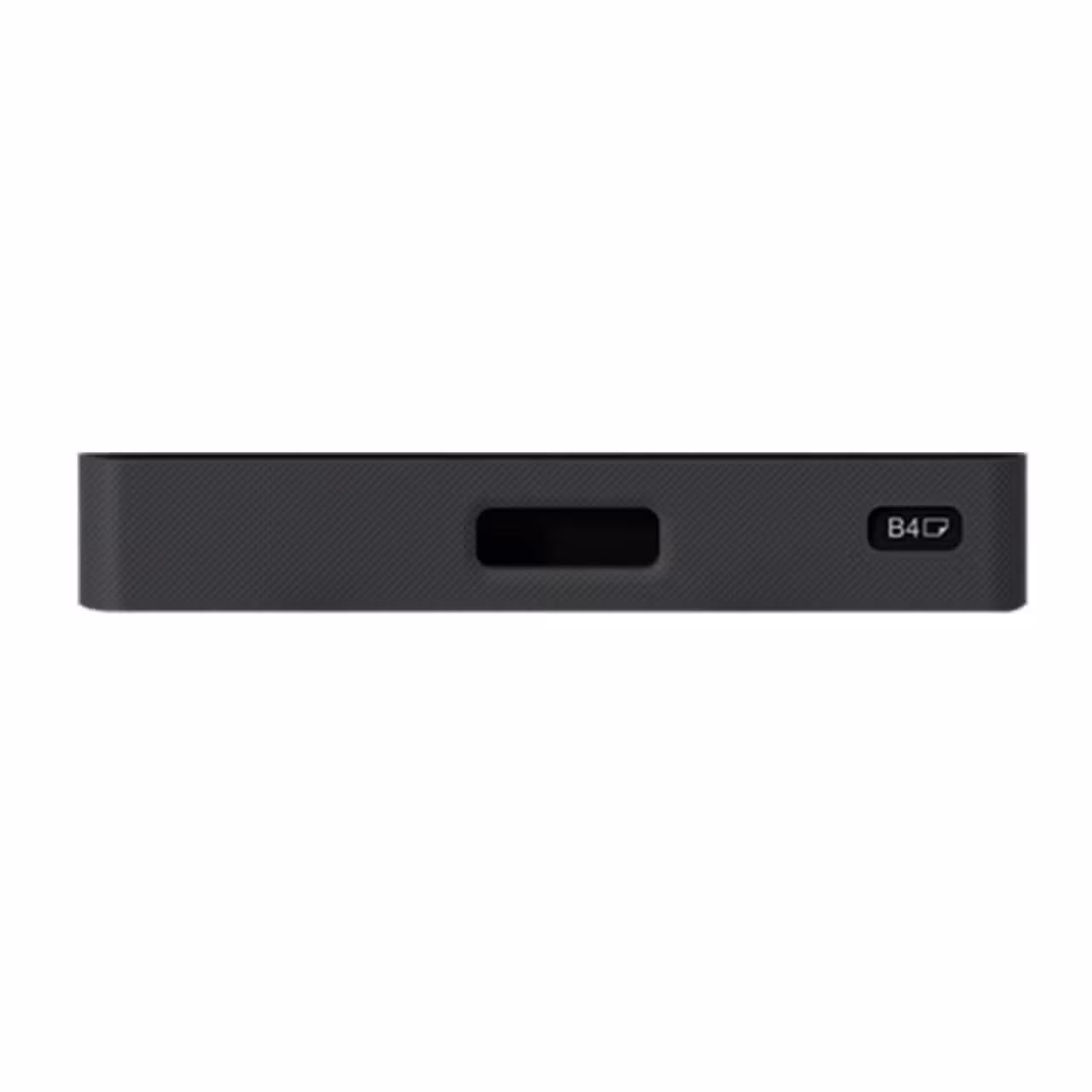

Toshiba MY-1051-B 550-Sheet Paper Feed Unit for e-STUDIO MFP Jet Black

Additional 550-Sheet Drawer for e-STUDIO Multifunction Systems

The Toshiba MY-1051-B paper feed adds a 550-sheet drawer beneath the second tray of a compatible e-STUDIO MFP. It accepts A5R through A3 sheets at 60 to 163 g/m². Jet black housing matches the main unit finish.

The unit measures 575 mm wide, 583 mm deep and 163 mm high, with protrusions excluded from those figures. Net weight sits at 9.6 kg. Power comes from the MFP supply at DC 3.3 V, 5 V and 24 V, with AC 100 V feeding the damp heater circuit.

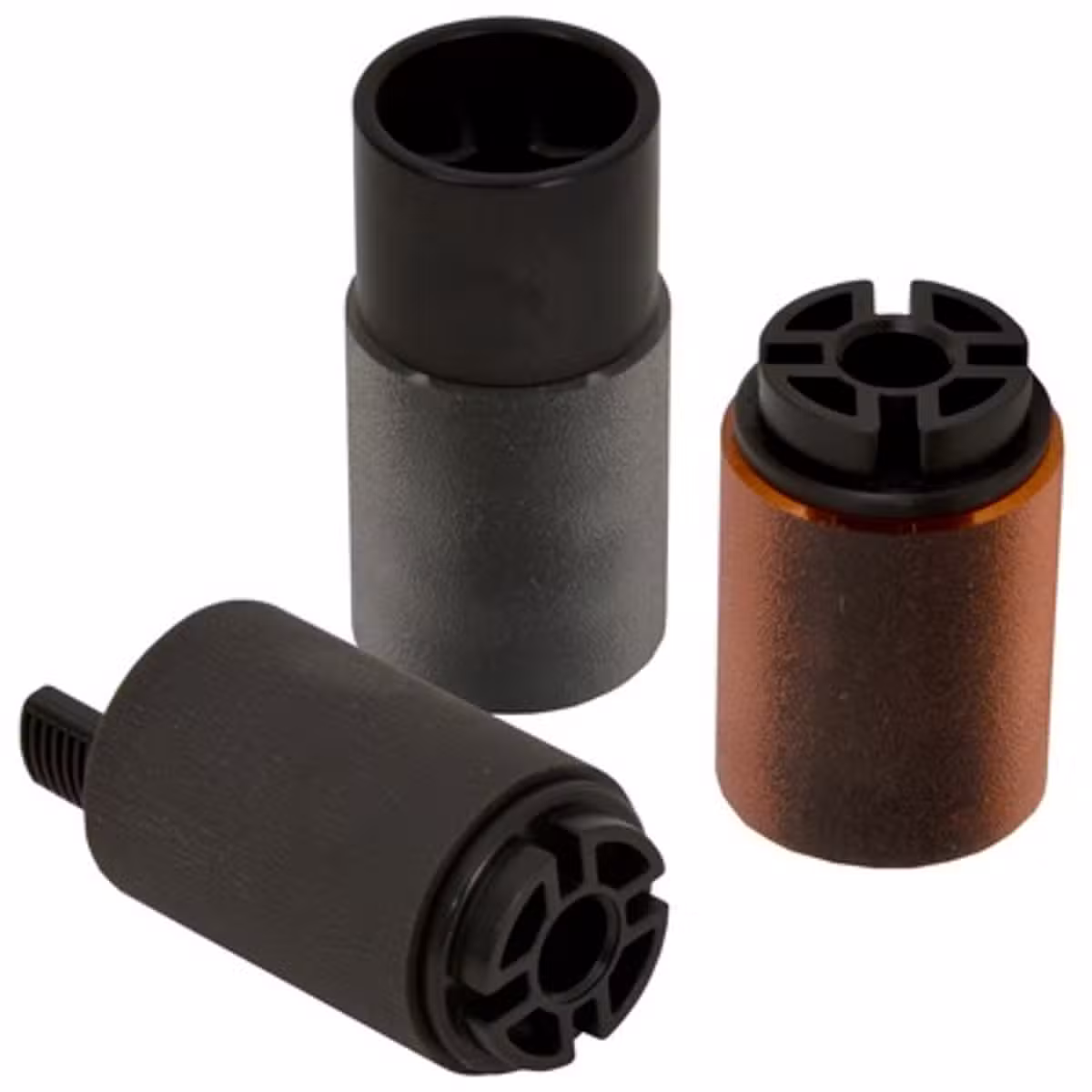

The drawer carries four sensors, four switches and three magnetic clutches. A tray-up motor lifts the stack once the drawer seats, and the MFP gear train drives the pickup, feed and transport rollers. Paper separates at the separation roller before it enters the main transport path.

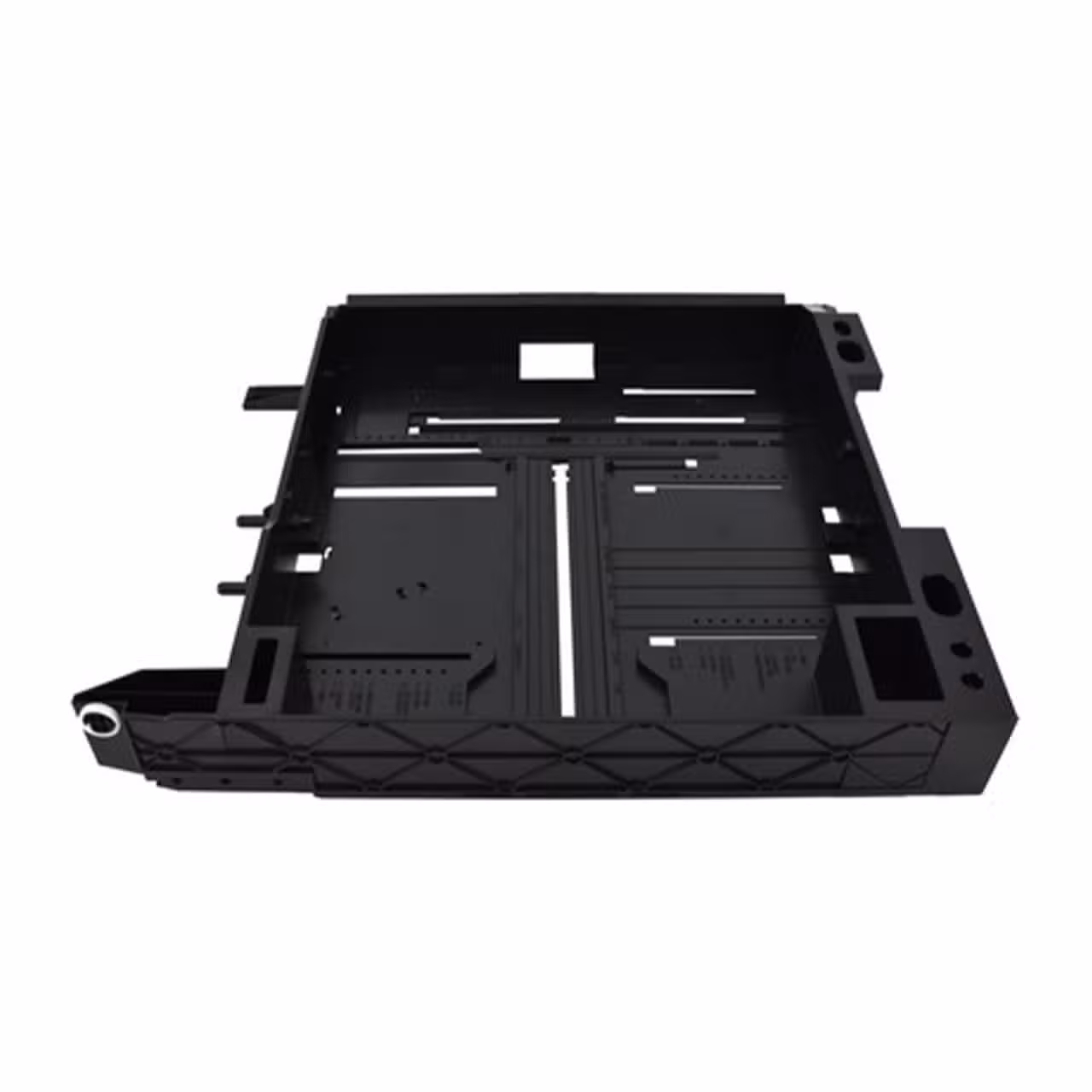

Installation requires a qualified technician and follows the bundled unpacking procedure. Side guides adjust for the loaded paper size, and a clearance setting controls skew at the feed point. The drawer locks into the base of the MFP and forms one unit with the chassis, so floor footprint grows by the drawer depth only.

Key Features

• 550-Sheet Drawer Capacity
  The tray holds 550 sheets at 80 g/m², which extends unattended print runs on the host MFP.

• Wide Media Support

  • A5R, A4, A4R, A3, B4 and B5 sizes
  • Custom sizes handled with side guide adjustment
  • Paper weight range of 60 to 163 g/m²

• MFP-Driven Transport
  The drawer carries no feed motor; the host gear train drives pickup and transport rollers through three clutches.

• Sensor and Switch Set
  Four sensors and four switches report drawer position, paper level and feed status to the MFP controller.

• Tray-Up Motor
  A dedicated motor raises the paper stack to the pickup roller after the drawer closes.

• Damp Heater Circuit
  An AC 100 V heater limits moisture absorption in humid print rooms.

• Chassis-Matched Finish
  The jet black housing aligns with the e-STUDIO body and locks into the base frame.

Specifications

What’s in the Box

• 1 x MY-1051-B paper feed unit

• Unpacking and setup booklet

• Mounting hardware

Why Choose Toshiba

• The extra cassette cuts refill interruptions on long departmental print jobs.

• Separate trays let one hold plain A4 while the other carries letterhead or A3.

• The unit draws drive force from the host, so no separate motor or controller is needed.

• Four sensors report paper level and drawer state to the MFP panel.

• The damp heater protects stored stock in humid coastal print rooms.
