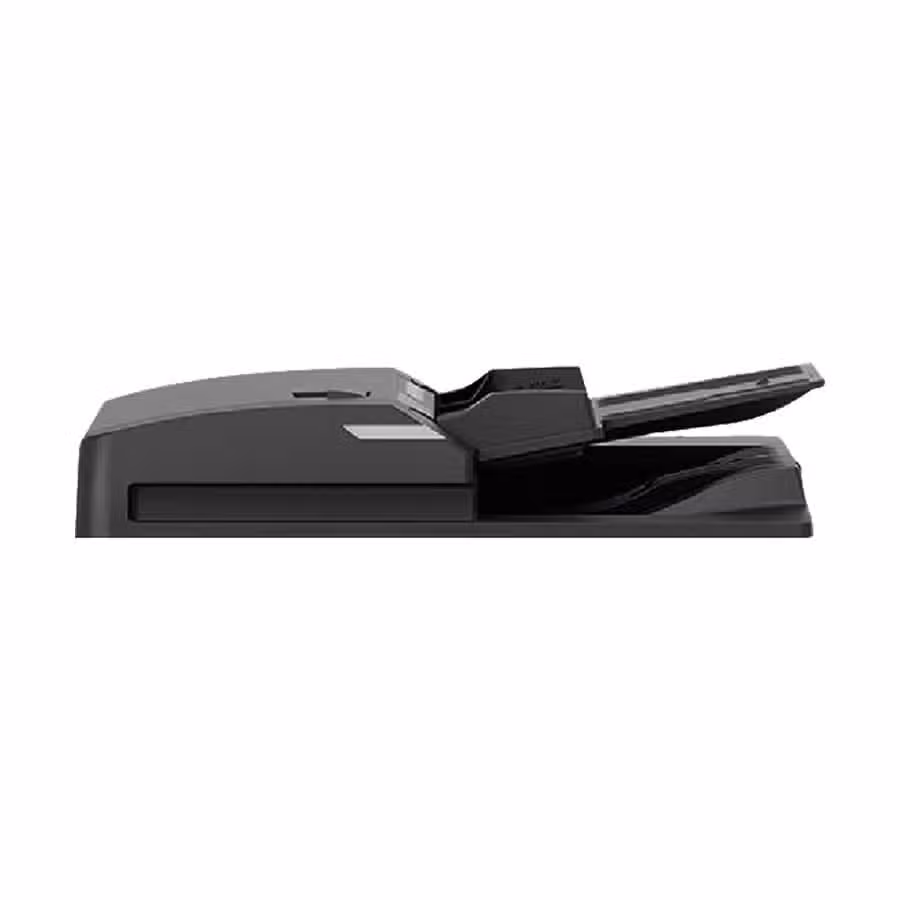

Toshiba MR-3033 RADF Reversing Automatic Document Feeder 100-Sheet A5-A3

Reversing Duplex Feeder for e-STUDIO Copiers

The Toshiba MR-3033 RADF is a reversing automatic document feeder that adds duplex scanning to compatible e-STUDIO machines. It holds 100 sheets and turns originals inside the unit for two-sided capture in one pass. An LED lamp shows feeder status at the tray.

The tray accepts A5 through A3 sheets at 35 to 157 gsm, covering plain and mime paper stocks. Scan throughput reaches up to 72 images per minute in duplex mode. The feeder mounts on the platen and connects through the host machine interface.

The unit measures 575 x 531 x 144 mm and weighs about 11 kg. It fits e-STUDIO 2020AC, 2520AC, 2528A, 3028A, 3528A, 4528A and 5028A series machines. Installation needs a qualified technician to align the hinge set and set the document stop height.

Key Features

• Reversing Duplex Path
  The feeder flips each original inside the unit, so the scanner captures both sides without manual reload.

• 100-Sheet Input Tray

  • Holds 100 sheets at 80 g/m²
  • Handles A5 through A3 media
  • Supports 35 to 157 gsm paper weights

• 72 IPM Scan Throughput
  Duplex capture reaches up to 72 images per minute on supported e-STUDIO models.

• LED Status Lamp
  An indicator at the tray shows feeder state and flags a paper jam or open cover.

• Plain and Mime Paper Support
  The feed rollers handle standard copier stock as well as lighter mime paper from 35 gsm.

• Chassis-Matched Housing
  The black cover aligns with the e-STUDIO body and sits flush on the platen glass.

Specifications

What’s in the Box

• 1 x MR-3033 reversing document feeder

• Hinge and mounting hardware

• Setup instructions

Why Choose Toshiba

• The reversing path removes manual page turning from duplex scan jobs.

• A 100-sheet tray keeps batch scanning running without constant reloads.

• Wide media support covers A5 slips through A3 drawings in one device.

• The LED lamp gives operators a quick fault indication at the tray.

• Genuine Toshiba hardware keeps the host machine within its supported configuration.
