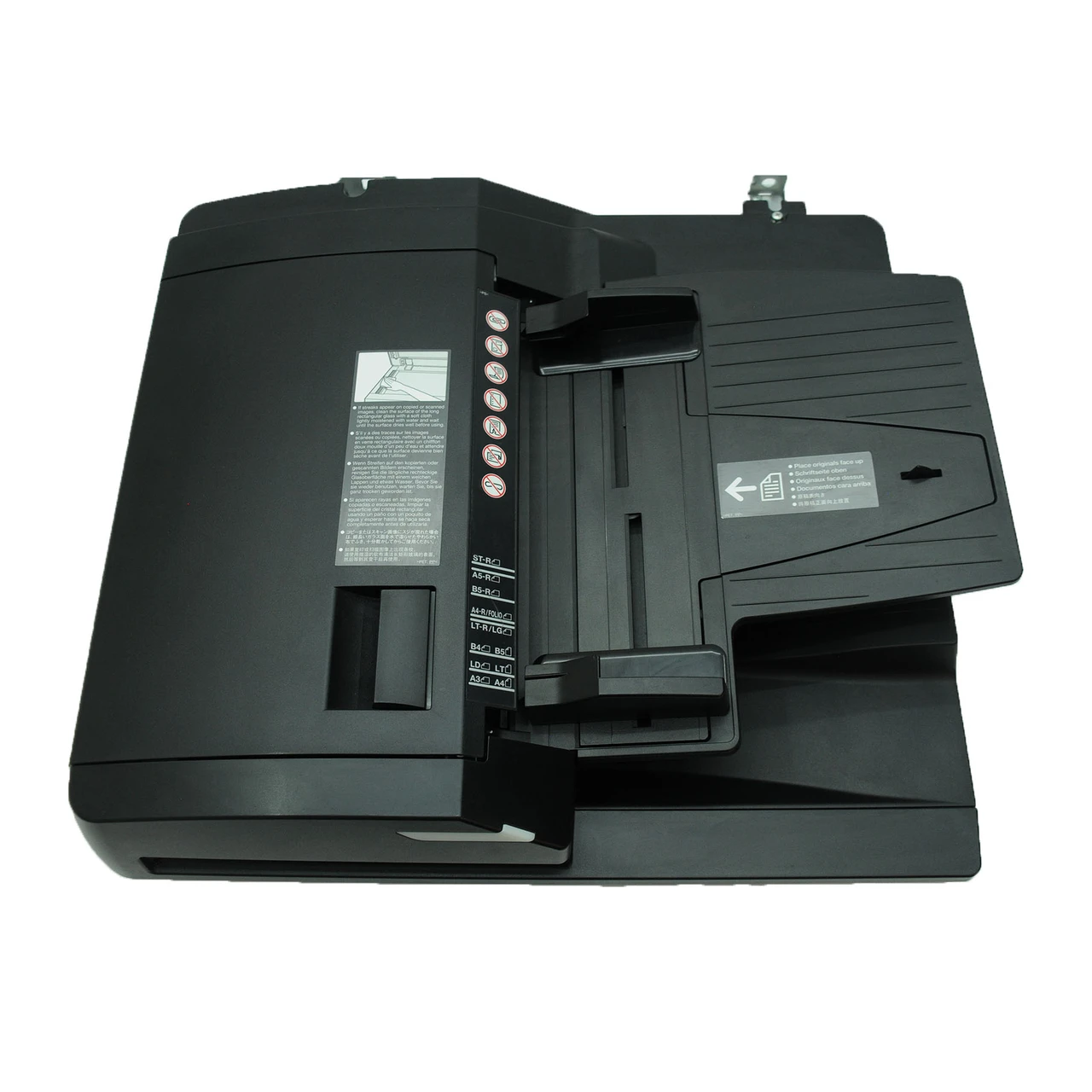

Toshiba MR-3031-B RADF 100-Sheet Reversing Automatic Document Feeder

Duplex Document Feeder for e-STUDIO Multifunction Systems

The Toshiba MR-3031-B RADF is a reversing automatic document feeder that mounts on compatible e-STUDIO multifunction printers. It holds 100 A4 or Letter originals and processes both single-sided and duplex sheets without manual turning. A reversing mechanism flips each original so the host MFP captures the reverse side in the same job.

Feed speed reaches more than 73 sheets per minute at 300 dpi and more than 50 sheets per minute at 600 dpi on single-sided work. Duplex feeding runs at approximately 25 sheets per minute at 600 dpi. The unit accepts paper from 35 to 157 g/m² on single-sided jobs and 50 to 157 g/m² on double-sided jobs.

Supported original sizes cover A3, A4, A4-R, A5-R, B4, B5, B5-R, Folio, Ledger, Legal and Letter. The feeder draws DC 5V and DC 24V from the host machine and consumes 5 W or less. It measures 575 x 531 x 135 mm and weighs about 11 kg. A jam access cover and LED notification lamp speed up clearing and status checks.

Key Features

• 100-Sheet Input Tray
  The feeder holds up to 100 A4 or Letter originals between 35 and 80 g/m² for long copy and scan runs.

• Reversing Duplex Path

  • Feeds one side, reverses the sheet and processes the opposite face
  • Handles single-sided and double-sided originals without operator intervention
  • Duplex throughput near 25 sheets per minute at 600 dpi

• Feed Speed Ratings
  Single-sided output exceeds 73 sheets per minute at 300 dpi and 50 sheets per minute at 600 dpi.

• Wide Media Support
  The paper path accepts A3, A4, A4-R, A5-R, B4, B5, B5-R, Folio, Ledger, Legal and Letter sizes.

• Host-Powered Operation
  The unit takes DC 5V and DC 24V from the MFP and draws 5 W or less, so no separate supply is needed.

• Jam Access Cover
  A hinged cover and LED status lamp give technicians quick access to the paper path.

• Tool-Free Fitment
  The feeder seats on the e-STUDIO scanner bed and connects through the host interface cable.

Specifications

What’s in the Box

• MR-3031-B RADF unit

• Interface cable

• Installation instructions

Why Choose the MR-3031-B

• The 100-sheet tray cuts reload stops on long contract, invoice and records batches.

• Reversing duplex handling removes the manual step of turning originals between passes.

• Host-powered operation keeps the feeder off a separate mains outlet and simplifies placement.

• The paper path covers A3 down to A5-R, so mixed-format office sets run without swaps.

• An 11 kg frame and 135 mm height keep the feeder stable while leaving the scanner bed accessible.

• Direct fitment on listed e-STUDIO models avoids brackets or third-party adapters.
