Toshiba FR-KIT-FC556-FU Fuser Maintenance Kit 6LK42666000 – 220V for e-STUDIO 5506AC 6506AC 7506AC
Original price was: KSh 50,300.00.KSh 40,900.00Current price is: KSh 40,900.00. ex VAT
Toshiba FR-KIT-FC556-FU Fuser Maintenance Kit 6LK42666000 – 220V for e-STUDIO 5506AC 6506AC 7506AC
| Part number | 6LK42666000 |
| Kit code | FR-KIT-FC556-FU |
| Product type | Fuser maintenance kit |
| Supply voltage | 220–240 V |
| Components | Fuser belt, pressure roller, belt pad, lubricating sheet, oil recovery sheets |
| Compatible models | e-STUDIO 5506AC, 6506AC, 7506AC, 5508A, 6508A, 7508A, 8508A, 5518A, 6518A, 7518A, 8518A, 5540C, 6540C, 6550C |
| Calibration required | No |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Fuser Rebuild Set for High-Volume e-STUDIO Copiers
The Toshiba FR-KIT-FC556-FU kit 6LK42666000 rebuilds the fusing unit on e-STUDIO 5506AC, 6506AC and 7506AC series machines. It bundles the fuser belt, pressure roller, belt pad, lubricating sheet and front and rear oil recovery sheets. The kit operates on a 220–240 V supply.
The fuser belt transfers heat to the toner image under pressure from the roller. The belt pad applies even contact across the page width, and the lubricating sheet reduces friction between the belt and pad. Front and rear oil recovery sheets manage release agent distribution. All parts match original Toshiba dimensions.
Compatible chassis include e-STUDIO 5506AC, 6506AC, 7506AC, 5508A, 6508A, 7508A, 8508A, 5518A, 6518A, 7518A, 8518A, 5540C, 6540C and 6550C. The kit suits preventive maintenance schedules in production print rooms and central reprographics departments. Technicians replace the worn fuser components without swapping the entire fuser unit.
Key Features
Complete Fuser Rebuild Set
The kit bundles the fuser belt, pressure roller, belt pad, lubricating sheet and oil recovery sheets in one package.220–240 V Supply
The kit is specified for European and African mains voltages on the supported e-STUDIO chassis.Fuser Belt and Pressure Roller
- Fuser belt transfers heat to the toner image
- Pressure roller applies even nip force across the page
- Belt pad maintains uniform contact pressure
- Lubricating sheet reduces belt-to-pad friction
- Oil recovery sheets manage release agent distribution
Wide e-STUDIO Coverage
The kit fits 5506AC, 6506AC, 7506AC, 5508A, 6508A, 7508A, 8508A, 5518A, 6518A, 7518A, 8518A, 5540C, 6540C and 6550C models.Preventive Maintenance Part
The kit supports scheduled fuser rebuilds in high-volume print environments.Direct Replacement Fit
Components match original Toshiba dimensions and seat in the fuser frame without modification.
Specifications
| Feature | Specification |
|---|---|
| Part number | 6LK42666000 |
| Kit code | FR-KIT-FC556-FU |
| Product type | Fuser maintenance kit |
| Supply voltage | 220–240 V |
| Components | Fuser belt, pressure roller, belt pad, lubricating sheet, front and rear oil recovery sheets |
| Compatible models | e-STUDIO 5506AC, 6506AC, 7506AC, 5508A, 6508A, 7508A, 8508A, 5518A, 6518A, 7518A, 8518A, 5540C, 6540C, 6550C |
| Installation | Fuser unit strip-down |
| Calibration required | No |
| Packaging | Single kit |

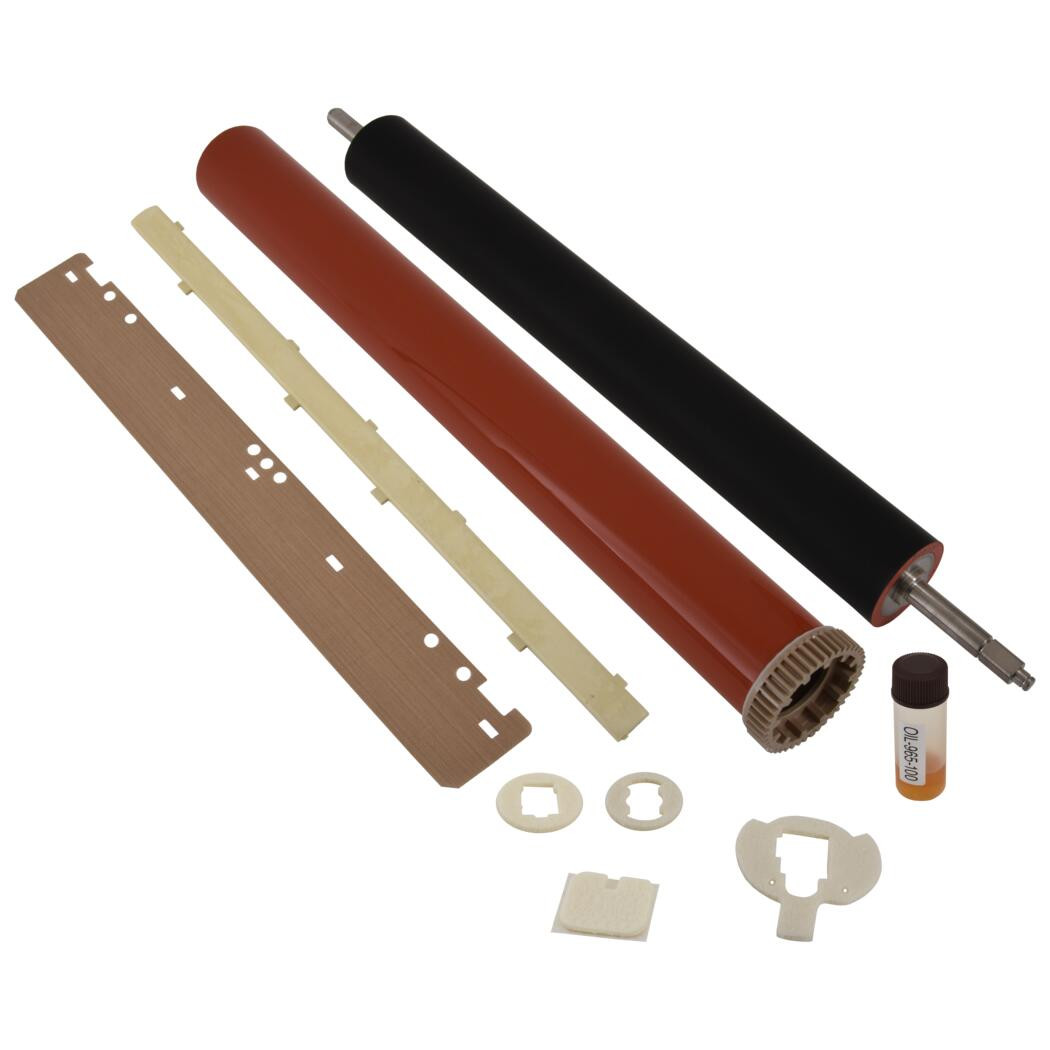

What’s in the Box
Fuser belt
Pressure roller
Fuser belt pad
Fuser belt lubricating sheet
Front fuser belt oil recovery sheet
Rear fuser belt oil recovery sheet
Why Choose This Fuser Kit
One kit supplies every wear component needed for a full fuser rebuild.
The 220–240 V rating matches the mains supply in most deployment regions.
Components match original dimensions for correct belt tracking and nip pressure.
Preventive replacement reduces unexpected fuser failures in high-volume print rooms.
The kit covers fourteen e-STUDIO models, which simplifies spare-parts stock.
Installation follows the standard fuser strip-down procedure with no calibration step.
