Toshiba FR-KIT-5008A Fuser Maintenance Kit 6LK72103100

Fuser Rebuild Pack for e-STUDIO 3508A to 5008A Series

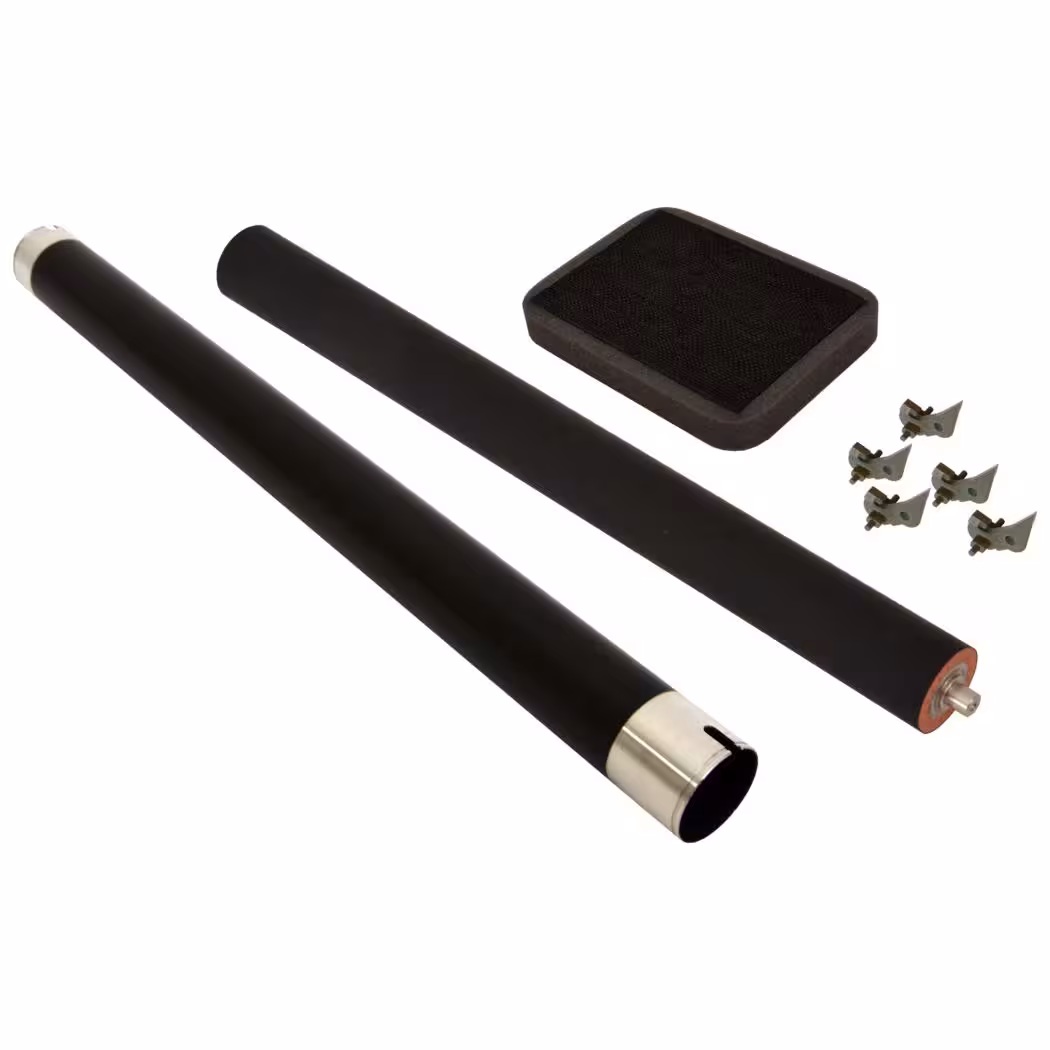

The Toshiba FR-KIT-5008A fuser kit is a complete fuser rebuild pack for Toshiba e-STUDIO 3508A, 3518A, 4508A, 4518A, 5008A, 5018A and related colour MFDs. It carries part number 6LK72103100 and the FR-KIT-5008A designation. The kit ships as one service pack containing developer material, the fuser roller, the pressure roller and five separation fingers for the fuser roller.

The fuser roller uses a coated sleeve over a quartz lamp and bonds toner to the sheet under heat and pressure. The pressure roller applies the nip force that holds the sheet against the fuser roller during the fusing cycle. Five separation fingers strip the printed page from the fuser roller after fusing, which prevents wrap jams and image smearing. The developer material in the pack refreshes the developer station at the same service interval.

Technicians replace these items when output shows repeat marks, gloss variation, fuser wrap jams or developer density loss. The kit also restores the correct fusing nip width after the pressure roller has flattened with age. All parts fit the fuser unit and developer station without modification. The pack covers the 35 ppm to 50 ppm colour chassis and the related 2505AC, 3005AC, 4505AC and 5005AC models.

Order by the Toshiba part number because the FR-KIT-5008A code also appears under 6LK72103100 and FRKIT5008A in different catalogues. The rated yield reaches approximately 250,000 pages, and coverage varies with media mix and print density. Store the kit flat and keep the coated rollers free of oil before installation.

Key Features

• Complete fuser rebuild pack
  The kit bundles developer material, fuser roller, pressure roller and five separation fingers in a single service unit.

• Coated fuser roller
  The coated sleeve releases toner cleanly and resists surface wear across the fusing cycle.

• Pressure roller and separation fingers

  • Pressure roller restores the correct fusing nip width
  • Five separation fingers strip the sheet from the fuser roller
  • Both parts fit the original fuser frame without modification

• Developer material included
  The pack refreshes the developer station at the same service interval as the fuser parts.

• 250,000-page yield
  The rated capacity reaches approximately 250,000 pages under standard coverage.

• Cross-referenced part numbers
  The kit ships under 6LK72103100 and is also listed as FRKIT5008A.

Specifications

What’s in the Box

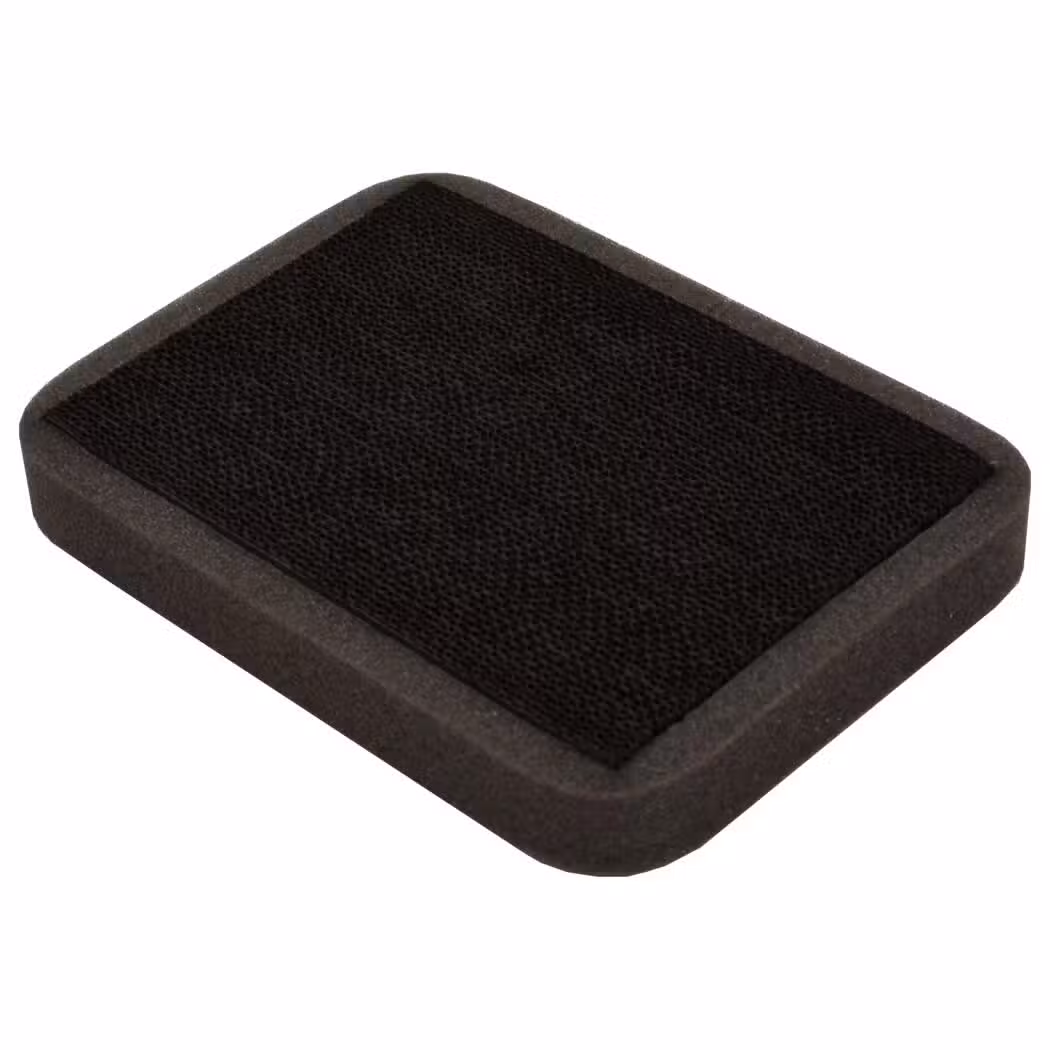

• Developer material

• Fuser roller

• Pressure roller

• Five separation fingers for fuser roller

Why Choose This Fuser Kit

• One pack covers the fuser wear items and developer refresh in a single service visit.

• Genuine Toshiba rollers match the original coating and nip specification.

• Five separation fingers reduce wrap jams after the fuser is rebuilt.

• Cross-referenced codes simplify stock checks against supplier catalogues.

• The 250,000-page rating reduces maintenance frequency on high-volume fleets.
