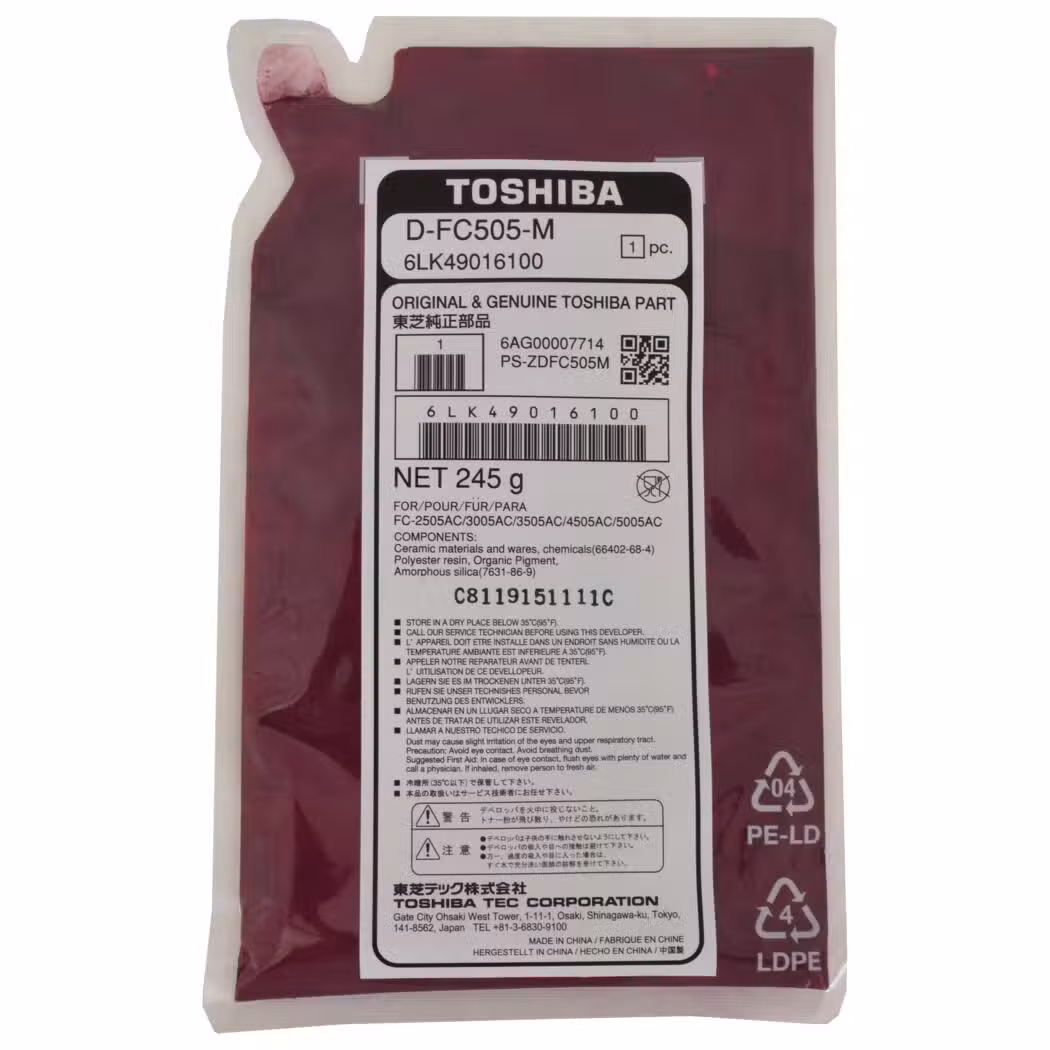

Toshiba D-FC505-M Magenta Developer Unit 6LK49016100 for e-STUDIO 2505AC 3005AC 3505AC 4505AC 5005AC

Magenta Developer Unit for e-STUDIO Colour Copiers

The Toshiba D-FC505-M developer is a genuine magenta developer unit for the e-STUDIO 2505AC, 3005AC, 3505AC, 4505AC, 5005AC and 5015AC colour multifunction copiers. It carries a yield rating of up to 150,000 pages at 5% coverage. The unit ships pre-filled with developer material and installs as a complete cartridge.

The developer station meters toner onto the magnetic brush and presents it to the photoconductor drum. A magenta developer unit controls the colour balance of the cyan, magenta, yellow and black image. A worn developer causes faded magenta output, colour shift and background scatter on the page. Replacing the unit restores the original colour density and reduces toner waste.

The part number 6LK49016100 appears on the unit label and in the copier consumables menu. Confirm the model code on the machine rating plate before ordering, because earlier e-STUDIO generations use a different developer series. The D-FC505 range covers the 2505AC through 5015AC families in K, C, M and Y colour variants.

Installation follows the consumable replacement procedure in the service manual. Open the front cover, release the developer drawer and pull the old unit out along its rails. Remove the protective cover from the new unit and slide it into position until it seats. Close the drawer and run the automatic developer setup from the service menu. The copier performs a stirring cycle and stores a fresh reference value for the new developer.

Store spare units in the original packaging away from direct sunlight and high humidity. Do not open the sealed bag until installation, because moisture degrades the developer material. Dispose of the old unit through an authorised copier consumables recycling stream. The sealed housing contains iron carrier particles and toner, so keep it upright during transport.

Key Features

• Genuine Toshiba Developer
  The unit is manufactured by Toshiba for the e-STUDIO 2505AC to 5015AC colour copier families.

• Magenta Colour Station
  The D-FC505-M unit supplies the magenta channel of the CMYK imaging process.

• 150,000-Page Yield

  • Rated at 5% coverage per colour
  • Matches the yield of the companion cyan, yellow and black units

• Pre-Filled Cartridge
  The unit ships with developer material loaded and ready for installation.

• Service-Menu Calibration
  The copier runs an automatic developer setup after replacement and stores a new reference value.

• Colour Density Stability
  A fresh developer station restores magenta density and reduces toner scatter on the page.

Specifications

What’s in the Box

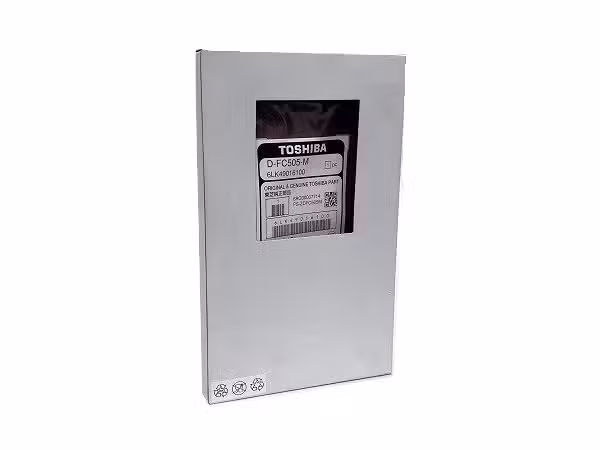

• Toshiba D-FC505-M magenta developer unit

• Protective packaging

• Installation reference

Why Choose This Developer Unit

• The genuine Toshiba part matches the original colour profile of the e-STUDIO copier.

• A 150,000-page yield supports predictable consumable planning in busy print rooms.

• The pre-filled cartridge removes the need to handle loose developer powder on site.

• Service-menu calibration confirms the new reference value after fitting.

• Model-specific fitment prevents incorrect parts on earlier e-STUDIO generations.

• Sealed packaging protects the developer material from humidity before installation.
