Toshiba BL-2320D Blade Assembly – Drum Cleaning Wiper for e-Studio Copiers
Original price was: KSh 6,500.00.KSh 5,600.00Current price is: KSh 5,600.00. ex VAT
Toshiba BL-2320D Blade Assembly – Drum Cleaning Wiper for e-Studio Copiers
| Part number | 6LA27845000 |
| Alternative numbers | BL-2320D, BL2320D, 6LL39101000 |
| Product type | Drum cleaning blade assembly |
| Machine section | Photoconductor |
| Compatible brand | Toshiba |
| Compatible models | e-Studio 163–355 series, Oce IM2330, IM2830 |
| Packaged weight | 170 g |
| Packaged dimensions | 2.5 x 4 x 36.5 cm |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Copier Drum Wiper for e-Studio Machines

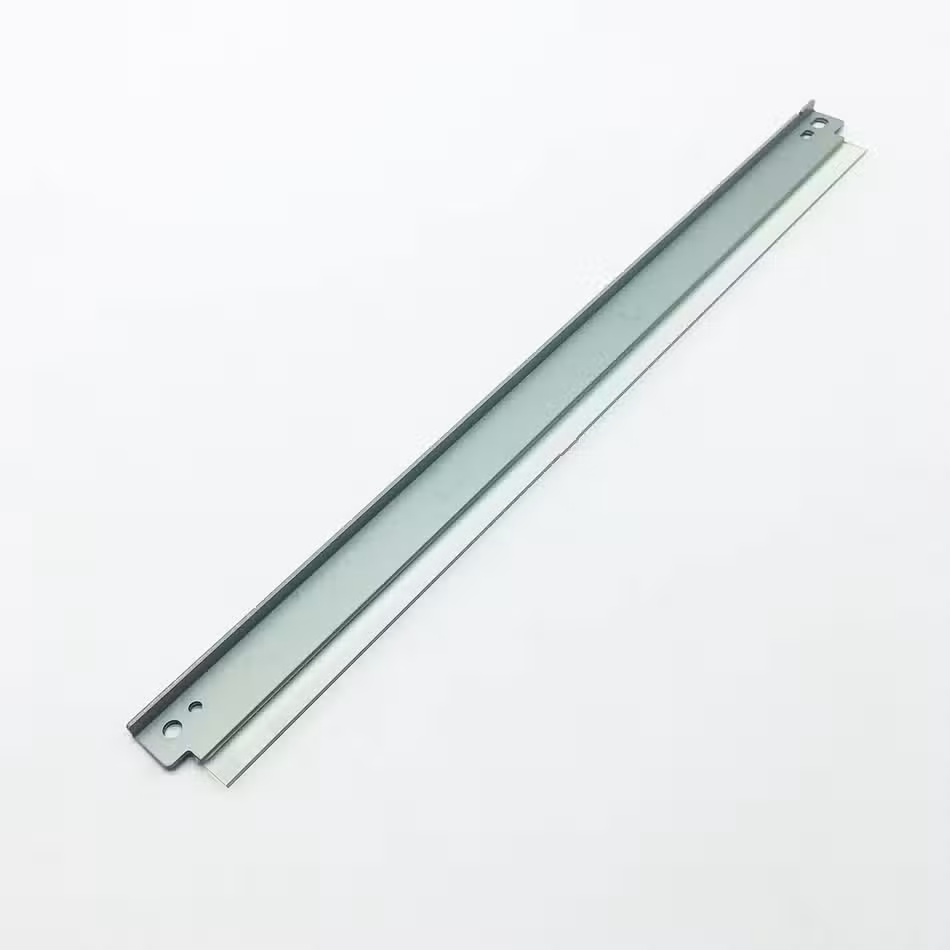

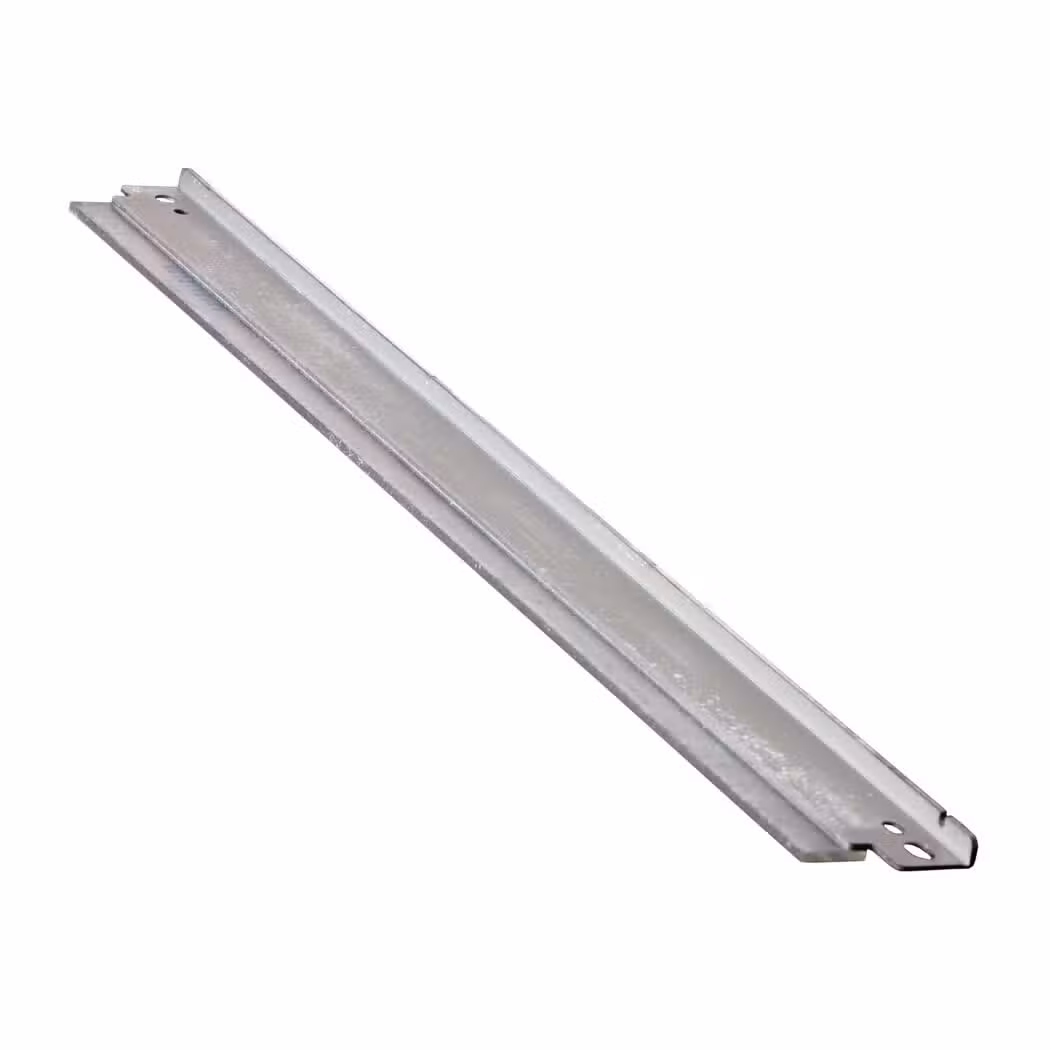

The Toshiba BL-2320D blade is a drum cleaning wiper for Toshiba e-Studio copiers and multifunction printers. It scrapes residual toner from the photoconductor surface after each transfer cycle. The assembly ships as a complete metal bracket with the polyurethane blade bonded in place.
The wiper contacts the drum along its full width and lifts toner that the transfer belt leaves behind. A stamped metal frame holds the polyurethane edge at a fixed angle. The part mounts in the photoconductor section and fits without adhesives or shims.
Packaged weight is roughly 170 g, and the box measures 2.5 x 4 x 36.5 cm. Service teams fit the part when output shows streaks, ghosting or a repeating mark down the page. Genuine Toshiba stock keeps blade angle and hardness within the original tolerance.
Key Features
Polyurethane Wiper Edge
The blade material holds a consistent contact angle against the photoconductor drum through the cleaning cycle.Stamped Metal Carrier
The frame locates on the drum unit mounting points and keeps the blade edge straight under load.Genuine Toshiba Part
The assembly carries part number 6LA27845000 and matches the original blade geometry.Wide Model Coverage
- e-Studio 163, 165, 166 and 167
- e-Studio 182, 212 and 242
- e-Studio 225, 230, 232, 233, 237 and 245
- e-Studio 255, 256, 257, 282 and 355
- Oce IM2330 and IM2830
Photoconductor Section Fit
The part sits inside the drum unit and needs the drum cover removed for access.Streak Correction
A worn wiper leaves toner trails on the drum, and a new blade restores a clean surface.Protected Packaging
The 36.5 cm carton keeps the blade edge clear of the walls during transport.
Specifications
| Feature | Specification |
|---|---|
| Part number | 6LA27845000 |
| Alternative numbers | BL-2320D, BL2320D, 6LL39101000 |
| Product type | Drum cleaning blade assembly |
| Machine section | Photoconductor |
| Blade construction | Polyurethane edge on stamped metal carrier |
| Compatible brand | Toshiba |
| Compatible models | e-Studio 163, 165, 166, 167, 182, 212, 242, 225, 230, 232, 233, 237, 245, 255, 256, 257, 282, 355 |
| Additional models | Oce IM2330, Oce IM2830 |
| Packaged weight | 170 g (6 oz) |
| Packaged dimensions | 2.5 x 4 x 36.5 cm |
| Shipping dimensions | 14.4 x 1.7 x 1.1 in |
| Condition | New |
| Origin | China |
What’s in the Box
Drum cleaning blade assembly
Protective sleeve
Why Choose This Drum Wiper
The wiper clears residual toner before the next imaging cycle starts.
A new edge removes streaks and repeating marks caused by a worn cleaning blade.
One part number covers a broad range of e-Studio and Oce machines in a fleet.
The rigid carrier keeps blade pressure even across the drum width.
Compact packaging suits service van shelves and technician tool cases.
