Toshiba ASYS-ROL-F32 Feed Roller Assembly 6LJ75249000 80,000 Pages

Feed Roller Assembly for e-STUDIO Copiers

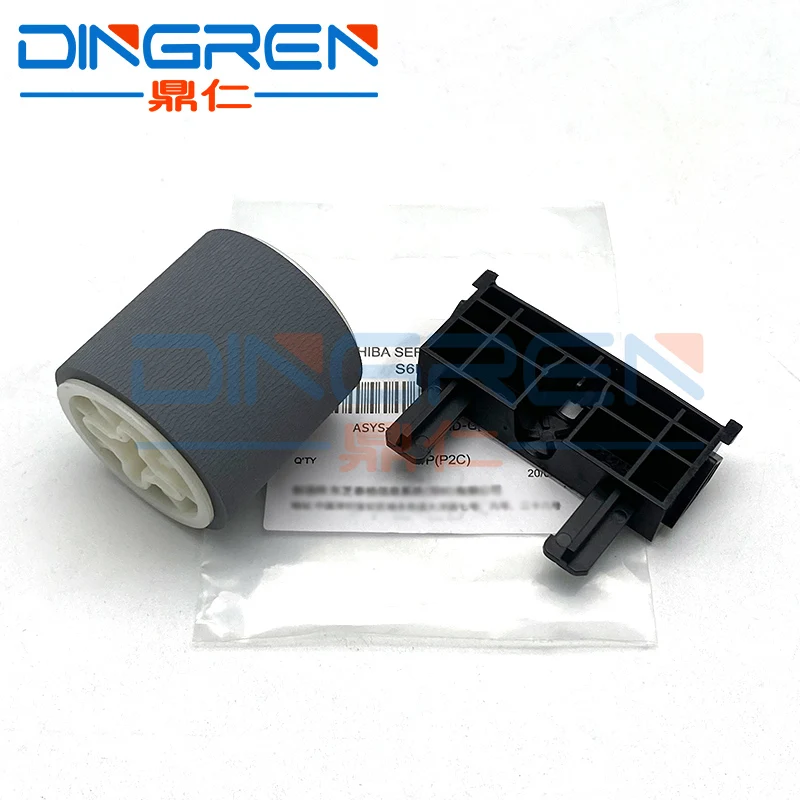

The Toshiba ASYS-ROL-F32 roller is a feed and pickup assembly for the e-STUDIO 2505, 2505F, 2505H, 2006 and 2007 copiers. It restores reliable sheet pickup from the main cassette and the side tray. The assembly carries part number 6LJ75249000 and a rated service life of 80,000 pages.

The roller uses a high-friction rubber compound that grips the top sheet without marking it. A spring-loaded pickup arm presses the roller against the paper stack. The separation pad downstream strips double feeds before they reach the registration unit. Wear shows as slipping, misfeeds or false paper-out messages with a loaded tray.

Replacement requires removing the cassette and the side tray cover. The roller clips onto the feed shaft without specialist tools. Technicians should clean the separation pad and check the retaining clips after fitting. The part suits maintenance contracts that schedule roller changes at the 80,000-page interval.

Key Features

• Dual-Position Feed Coverage
  The assembly services both the main cassette and the side tray on supported chassis.

• High-Friction Rubber Surface
  The compound grips coated and plain stock without leaving transfer marks.

• 80,000-Page Service Rating
  The stated life matches the preventive maintenance interval on the e-STUDIO series.

• Tool-Free Retaining Clips

  • Roller seats on the feed shaft without screws
  • Clips release with light pressure from a flat tool
  • No shaft alignment or calibration step after fitting

• OEM Part Number 6LJ75249000
  The number cross-references directly to the ASYS-ROL-F32 assembly code.

• Compact Assembly Format
  The single-piece unit ships ready to install with no loose springs.

Specifications

What’s in the Box

• 1 x ASYS-ROL-F32 feed roller assembly

Why Choose This Assembly

• The rated life aligns with scheduled maintenance on the e-STUDIO 2505 and 2006 families.

• One assembly covers both the cassette and side tray feed points.

• The rubber compound resists glazing that causes double feeds.

• Clips allow replacement during a routine service call without shaft removal.

• The OEM number removes ambiguity when ordering against a parts list.

• The compact format keeps spare-parts stock simple for multi-machine fleets.
