Toshiba 6LK49079000 Developer Kit DEV-KIT-FC200CLR 67,200 Pages for e-STUDIO

Preventive Developer Maintenance Kit for e-STUDIO Colour Copiers

The Toshiba 6LK49079000 developer kit is a preventive maintenance kit for Toshiba e-STUDIO colour multifunction printers. Toshiba codes the kit DEV-KIT-FC200CLR and lists a rated yield of approximately 67,200 pages. The package carries the consumable parts that wear during normal developer operation.

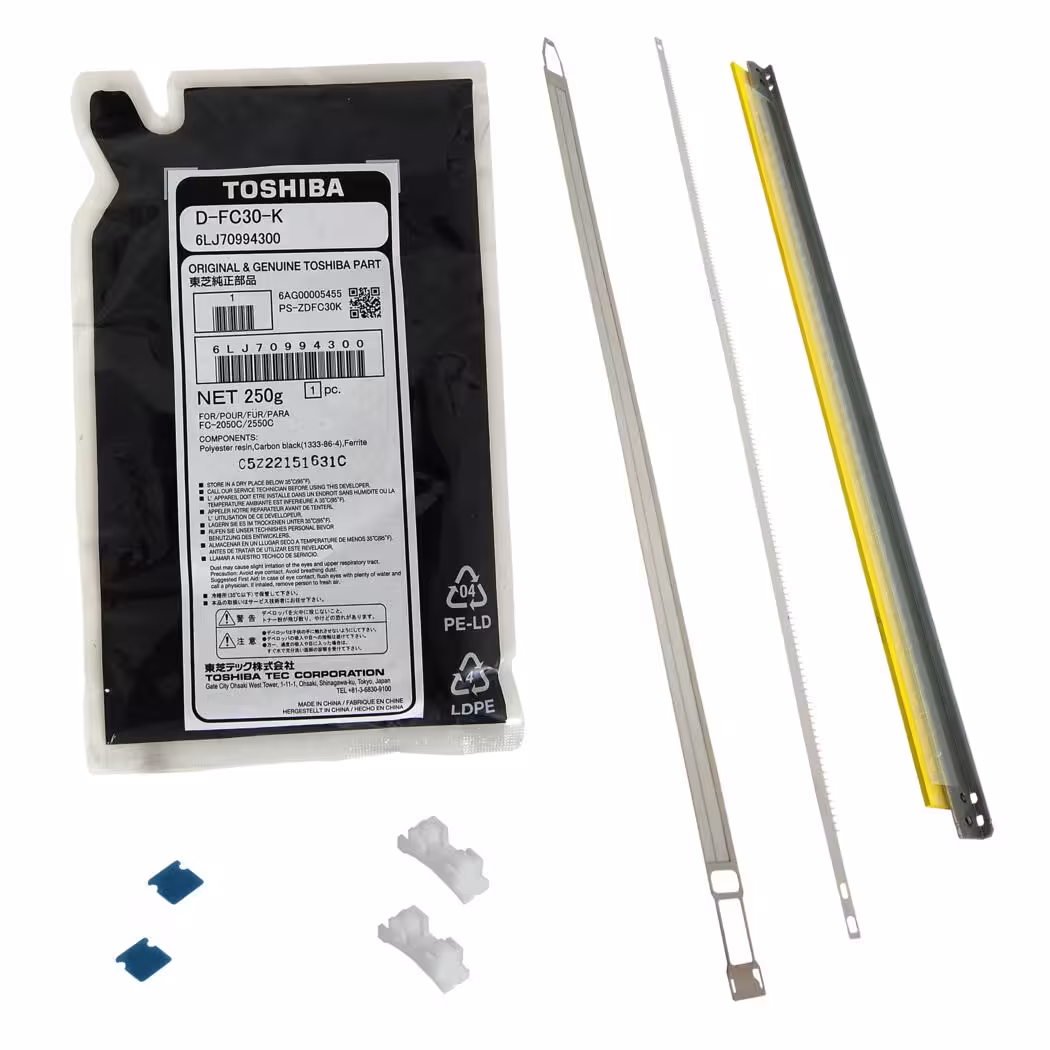

Each kit includes one developer unit, one main charge grid, one drum cleaning blade, one saw-tooth charger, two charger cleaner holders and two charger cleaner films. These parts restore charge stability and developer transfer across the drum surface. Technicians fit the kit during scheduled maintenance or when print density drops and background fog appears.

Fitment covers the e-STUDIO 2000AC, 2050C, 2051C, 2500AC, 2550C and 2551C. Confirm the model plate against the parts list before ordering. The service manual lists the removal order for the developer, charger and cleaning blade. The kit does not include a drum or fuser unit, so order those separately when the machine logs wear on those assemblies.

Key Features

• Complete Developer Maintenance Set
  The kit bundles the developer unit, charge grid and cleaning blade in one part number.

• Rated Yield

  • Approximately 67,200 pages per kit
  • Yield measured at 5 percent coverage on A4
  • Matches the scheduled maintenance interval

• Charger Service Parts

  • One saw-tooth charger
  • Two charger cleaner holders
  • Two charger cleaner films

• Charge and Cleaning Components
  A main charge grid and a drum cleaning blade restore charge uniformity and remove residual toner.

• Model Coverage
  The kit fits the e-STUDIO 2000AC, 2050C, 2051C, 2500AC, 2550C and 2551C chassis.

• Service Manual Procedure
  Toshiba documents the removal order for the developer, charger and blade in the model service manual.

Specifications

What’s in the Box

• Developer unit

• Main charge grid

• Drum cleaning blade

• Saw-tooth charger

• Two charger cleaner holders

• Two charger cleaner films

Why Choose the 6LK49079000

• One part number covers the developer, charge grid and cleaning blade, so a single service visit restores image quality.

• The 67,200-page rating aligns with the scheduled maintenance interval on workgroup colour copiers.

• Charger cleaner films and holders address the wear that causes streaking and background fog.

• Genuine Toshiba components keep charge and developer behaviour within design tolerance.

• The kit excludes drum and fuser units, so technicians order only the parts that need replacement.
