Toshiba 6LJ80668000 Separation Pad Assembly – SP-PAD-ASSY for e-STUDIO 2505 Series

Document Feeder Separation Component

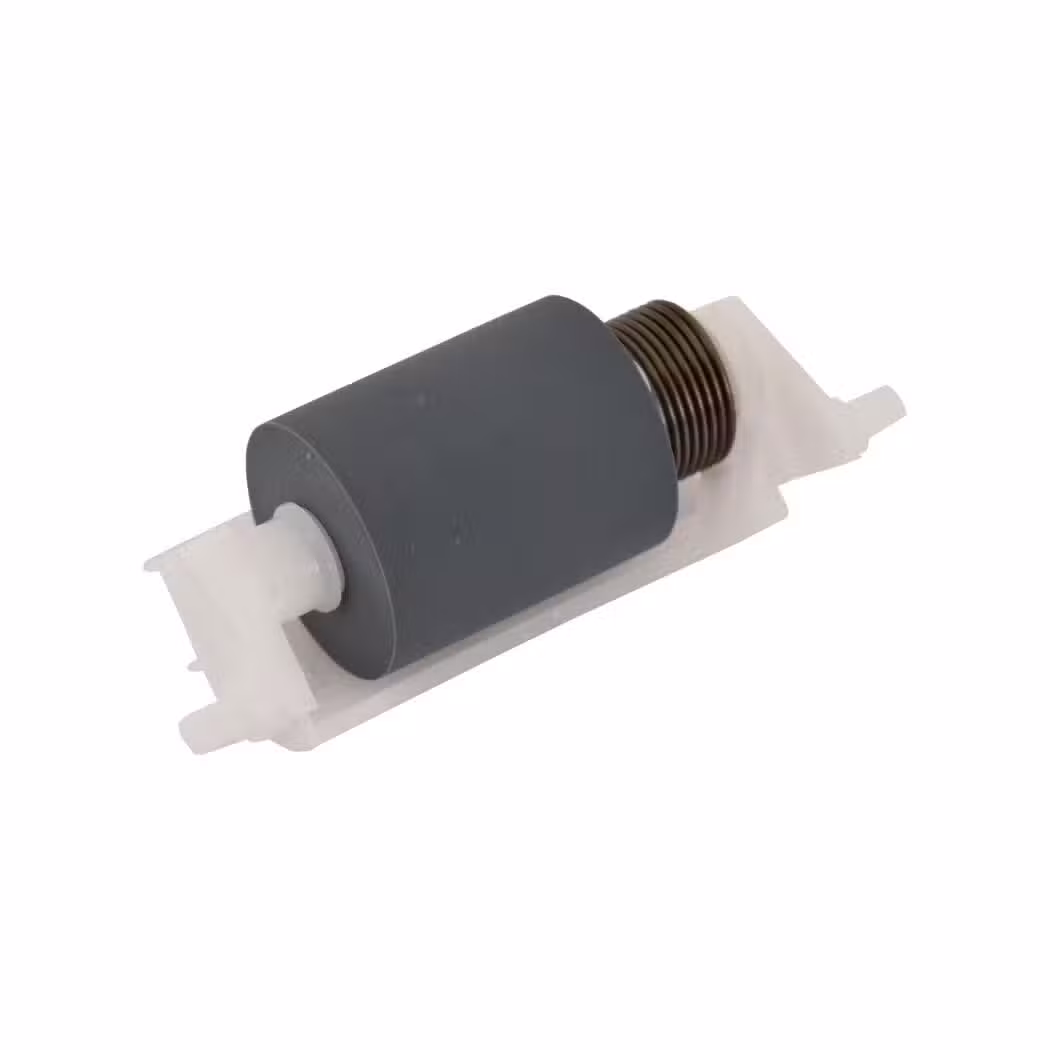

The Toshiba 6LJ80668000 separation pad is a genuine replacement assembly for the automatic document feeder in e-STUDIO 2505 series copiers. It provides the friction surface that separates individual originals from the pickup roller. The part carries the model designation SP-PAD-ASSY and is also listed under the roller code 6LJ80615000.

The assembly includes the separation pad and its mounting spring, which presses the pad against the feed roller to create a controlled nip. This friction interface prevents double feeds and misfeeds as documents pass through the ADF. Wear on the pad surface leads to skewed scans, repeated jams, or multi-sheet pickup, especially on thin or recycled paper.

Replace the pad when the friction face shows glazing, grooves, or flat spots. Clean the feed path before installation to remove paper dust and toner residue. The assembly clips into the feeder housing without adhesives. After fitting, run a duplex scan test to confirm single-sheet separation across the ADF tray.

The part fits e-STUDIO 2505, 2505F, 2505H, MR2021, and MR3027 models. Technicians should verify the feed roller condition at the same time; a worn roller accelerates pad wear. The separation pad is a consumable item and should be stocked alongside pickup rollers and feed tyres. Each unit ships as a single assembly in factory packaging.

Key Features

• Genuine Toshiba replacement
  The OEM assembly holds the original friction coefficient and mounting geometry.

• Friction separation surface
  The pad material creates a controlled nip that releases one sheet at a time.

• Model compatibility

  • e-STUDIO 2505, 2505F, 2505H
  • e-STUDIO MR2021, MR3027

• Integrated spring
  The assembly includes the tension spring that maintains pad pressure against the roller.

• Tool-free fitment
  The pad clips into the feeder housing without adhesives or screws.

• Single-unit packaging
  Each assembly ships individually for straightforward spares inventory.

Specifications

What’s in the Box

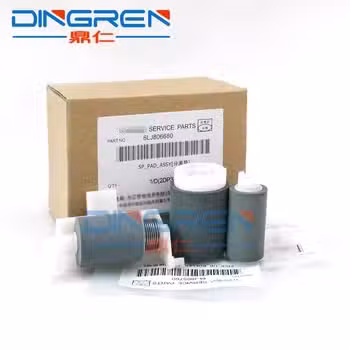

• One Toshiba separation pad assembly, part 6LJ80668000

Why Choose This Feed Pad

• The OEM friction surface restores reliable single-sheet pickup in the document feeder.

• Direct replacement for the 6LJ80615000 roller reference simplifies parts ordering.

• The clip-in mount removes the need for adhesives during field service.

• Single-unit packaging keeps spare-parts stock simple to count and reorder.

• Fits the listed e-STUDIO and MR series variants without modification.
