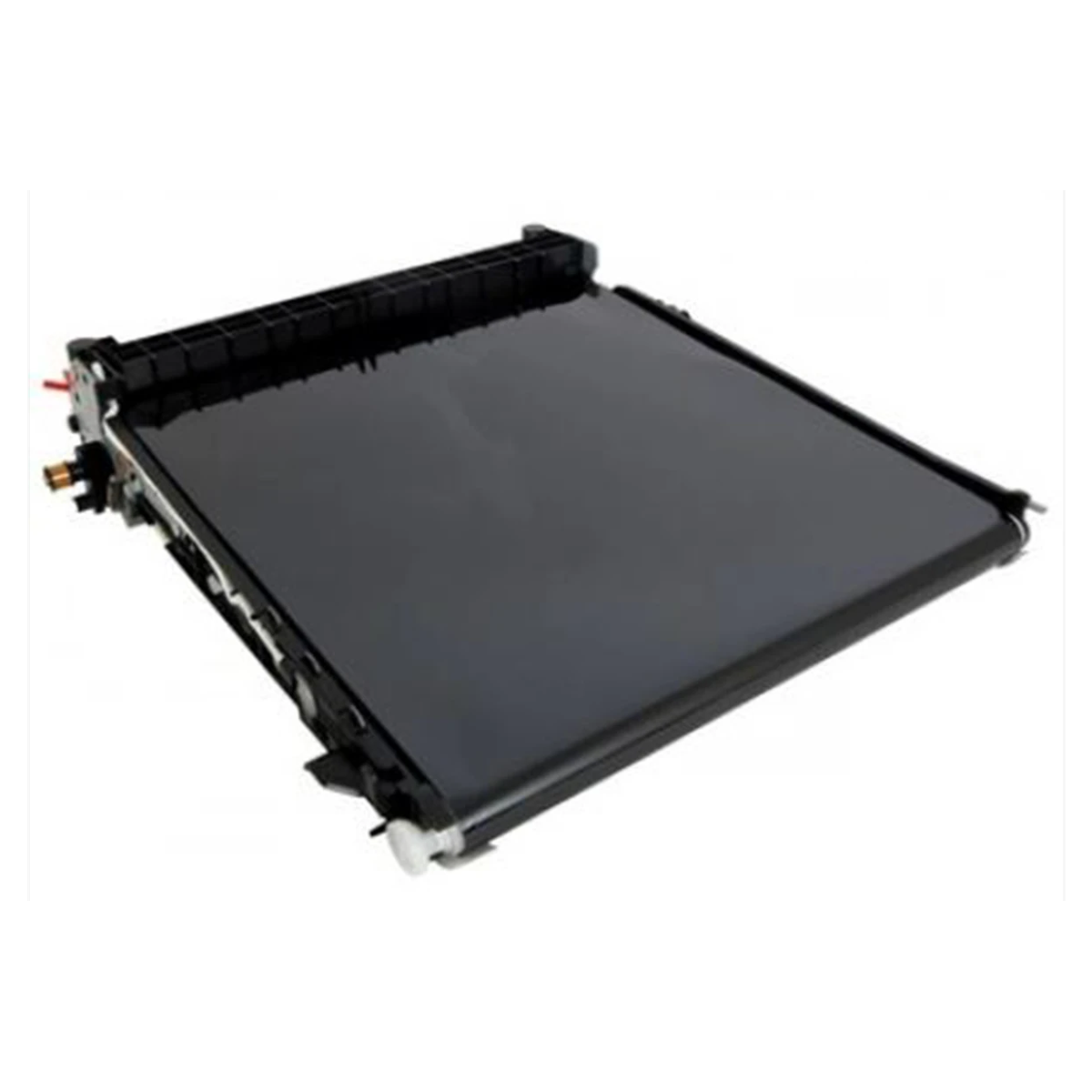

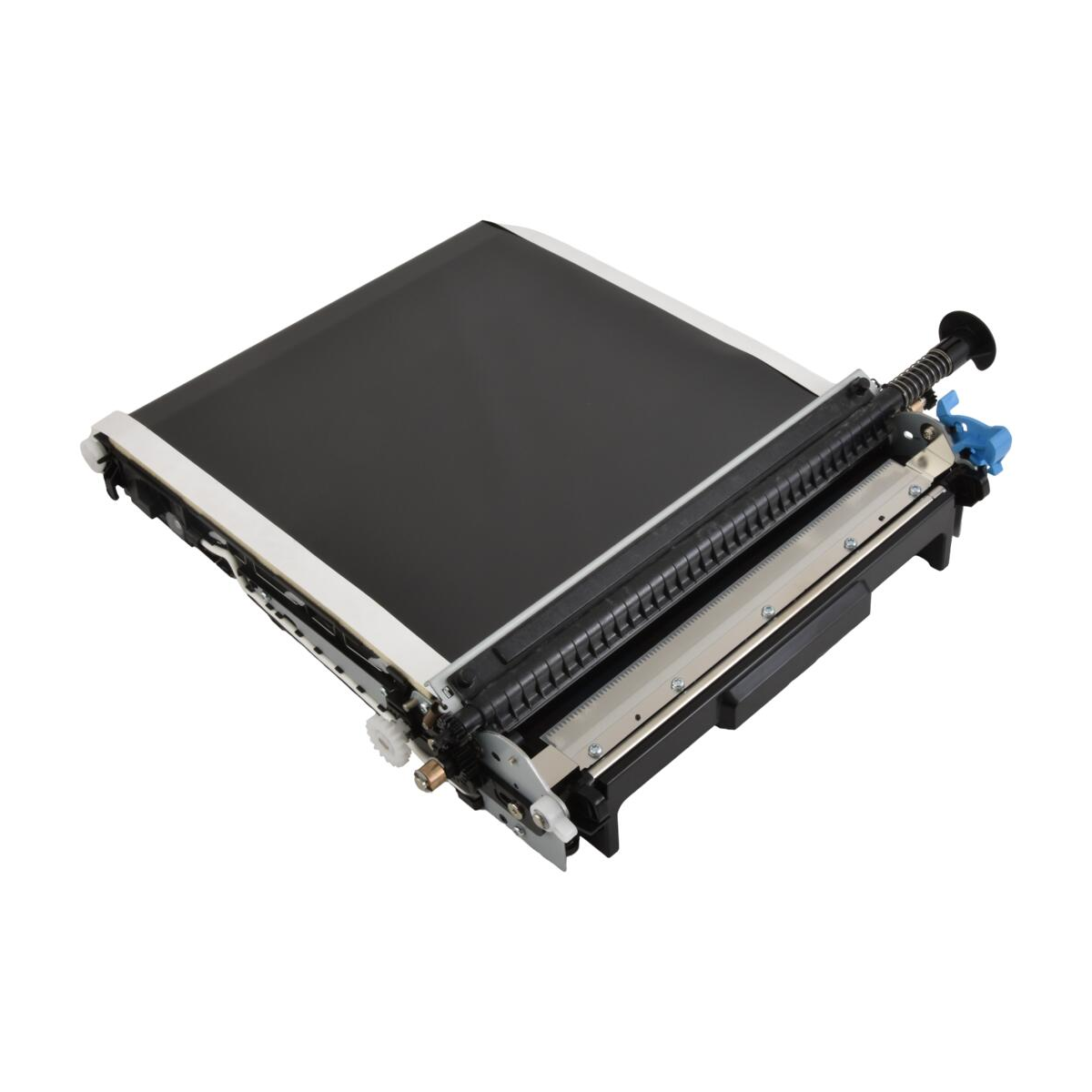

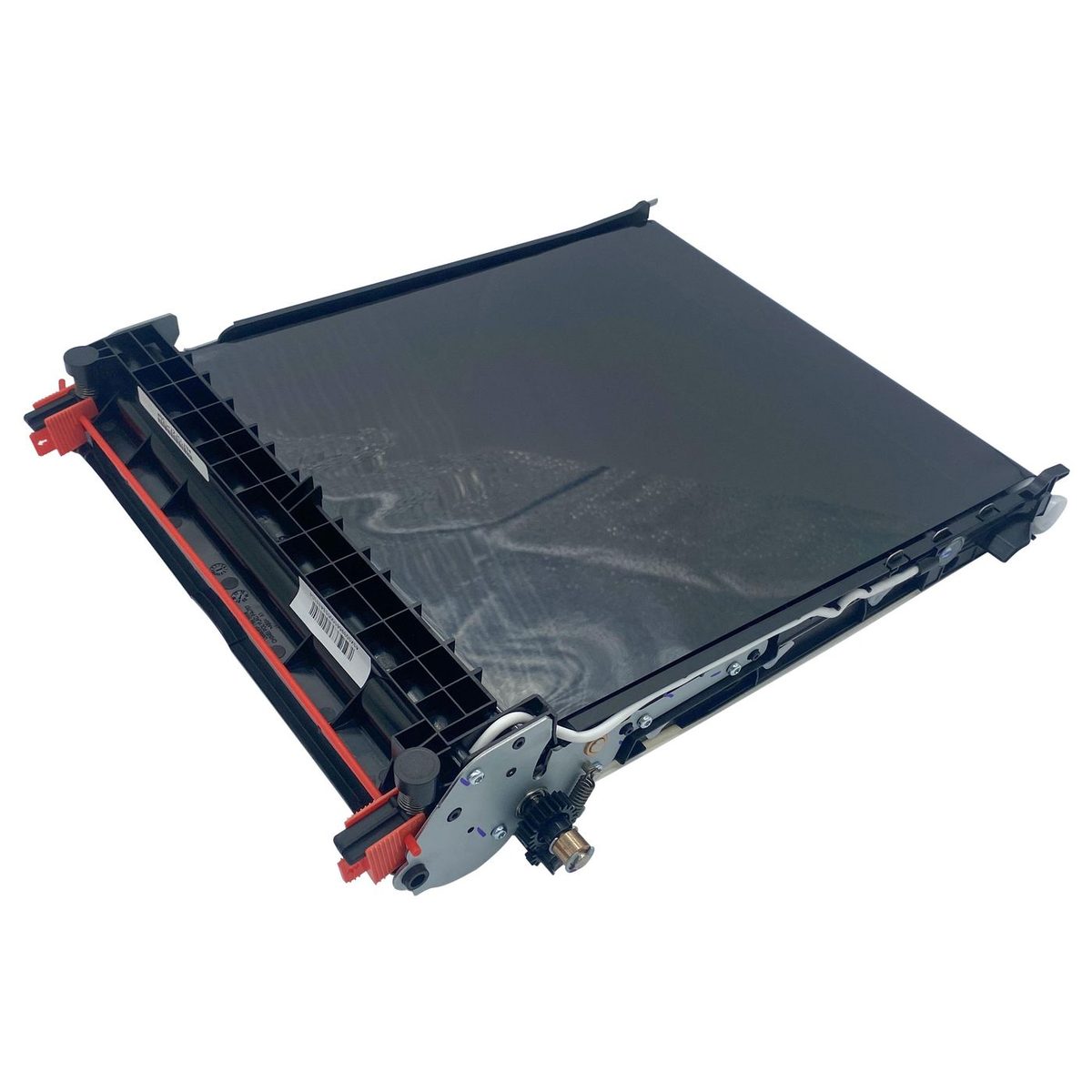

Toshiba 41X1039 Transfer Module

The Toshiba transfer module 41X1039 governs movement of toned images from the photoreceptor drum to paper or intermediate media within the electrophotographic engine. Transfer efficiency directly influences print density, background cleanliness, and the occurrence of ghost images when previous patterns partially re-deposit on subsequent sheets. Modules of this class integrate rollers, belts, or bias elements configured to apply controlled electrostatic fields during the instant of contact between drum and paper.

Wear on transfer surfaces manifests as light prints, toner scatter in the paper path, or repeated shadow images spaced according to drum or belt circumference. The 41X1039 replacement unit restores manufacturer-intended bias levels and mechanical tension that keep paper flat against the drum during transfer, which is especially important for duplex jobs where second-side timing must align with first-side registration marks. Installation procedures often require releasing tension springs in a specific order and re-zeroing sensors that track belt or roller position after reassembly.

Contamination from airborne toner, paper dust, and fuser off-gassing accumulates on transfer components over time. While cleaning can extend service life between replacements, hardened deposits or micro-scratches on contact surfaces eventually mandate module exchange to avoid permanent quality defects. Technicians document impressions before and after replacement to confirm recovery of density targets measured with test charts or onboard calibration utilities.

Electrical connections on the transfer module carry bias voltages supervised by the high-voltage power supply. Faulty connectors or cracked insulation can produce arcing audible as clicking during print cycles and may trigger interlock shutdowns to protect operators and adjacent electronics. Replacement therefore includes inspection of mate connectors on the machine side for corrosion or heat discoloration that could compromise the new module immediately after installation.

Compatibility with specific engine subvariants ensures correct roller hardness and bias profiles; using an incorrect transfer module can over-toner sheets or fail to attract toner from the drum, yielding blank areas. The 41X1039 is specified for documented Toshiba platforms where service literature lists it as the authorized assembly for field replacement rather than component-level rebuild.

Fleet operators tracking cost per impression allocate transfer module life alongside drum and fuser metrics to forecast annual maintenance budgets. Keeping modules in climate-controlled stockrooms prevents rubber aging prior to deployment and supports same-day repairs when quality monitoring systems flag sustained transfer-related defects across multiple devices in a shared location.
