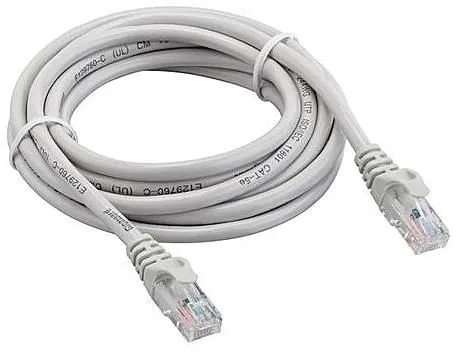

Siemon CAT6 Patch Cord 1m U/UTP 24 AWG Stranded RJ45

Copper Patch Lead for Rack and Desk

The Siemon patch cord 1m links switches, patch panels and workstations across a short channel. Four twisted pairs terminate in RJ45 plugs at both ends. Factory assembly removes field termination work from the cabinet build.

Stranded 24 AWG copper conductors carry the signal over the short run. The cord rates to 250 MHz and supports 1000BASE-T plus PoE Type 1 and Type 2. A patented cross-pair isolator sits inside each plug and holds near-end crosstalk down at higher frequencies.

A 360-degree crimp secures the plug body to the cable without deforming the pairs. The snagless boot covers the latch during pulls through cable managers. Contacts carry 50-micron gold plating, and the CM-rated PVC jacket meets indoor flame spread limits.

Key Features

• 250 MHz Rated Cordage
  Every factory-assembled cord is transmission tested to 250 MHz before packing.

• Patented Cross-Pair Isolator
  A metallic isolator shields the pairs inside each plug for stronger NEXT margin.

• 360-Degree Crimp Termination

  • Even crimp pressure around the plug barrel
  • Strain relief that avoids pair deformation
  • Improved plug-to-cable retention under pull load

• Snagless Boot
  The moulded latch guard stops the clip catching on pathways and cable managers.

• Gold-Plated Contacts
  50-micron plating resists corrosion from humidity and airborne contaminants.

• CM-Rated Jacket
  The lead-free PVC compound meets indoor flame spread requirements.

• T568A and T568B Wiring
  The cord works with either colour code on patch panels and outlets.

• Power over Ethernet Support

  • PoE Type 1 and Type 2
  • UPoE and Power over HDBaseT

• Backward Compatibility
  The assembly runs Cat 6 performance through Siemon Cat 5e outlets and panels.

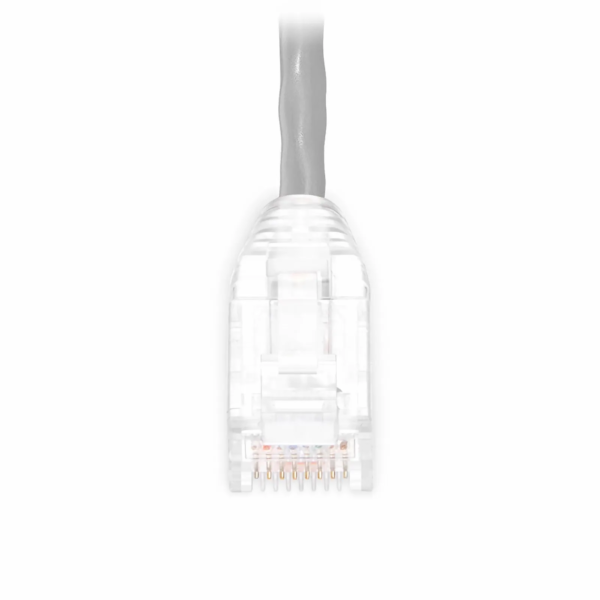

• Plug Geometry
  RJ45 bodies meet FCC 68.500 and IEC 60603-7 dimensions for reliable seating.

Specifications

What’s in the Box

• 1 m Cat 6 U/UTP modular patch cord with snagless boots

Why Choose the MC6 Cord

• Pre-terminated ends cut installation time on new cabinet builds and moves.

• The 250 MHz rating leaves headroom for Gigabit links over the full channel.

• Stranded conductors tolerate repeated patching during moves and changes.

• The isolator design keeps crosstalk controlled when cords bundle tightly.

• Clear boots let technicians inspect termination quality at a glance.

• Gold contacts hold signal integrity in humid equipment rooms.

• PoE and UPoE support covers access points and IP phones on the same lead.

• Colour-coded boots and jackets simplify port tracing during audits.
