SC APC to SC APC OS2 Single Mode Patch Cord 5m Simplex 2.0mm LSZH
Limited Stock
SC APC to SC APC OS2 Single Mode Patch Cord 5m Simplex 2.0mm LSZH
| Connectors | SC/APC to SC/APC, 8-degree angled |
| Fiber Mode | Single mode OS2, 9/125µm G.657.A2 |
| Fiber Count | Simplex |
| Length | 5m |
| Cable Diameter | 2.0mm |
| Jacket | LSZH, yellow |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥60 dB |
| Operating Temperature | -20°C to +70°C |
| Connector Standard | IEC 61754-4 |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Angled Single Mode Fiber Jumper

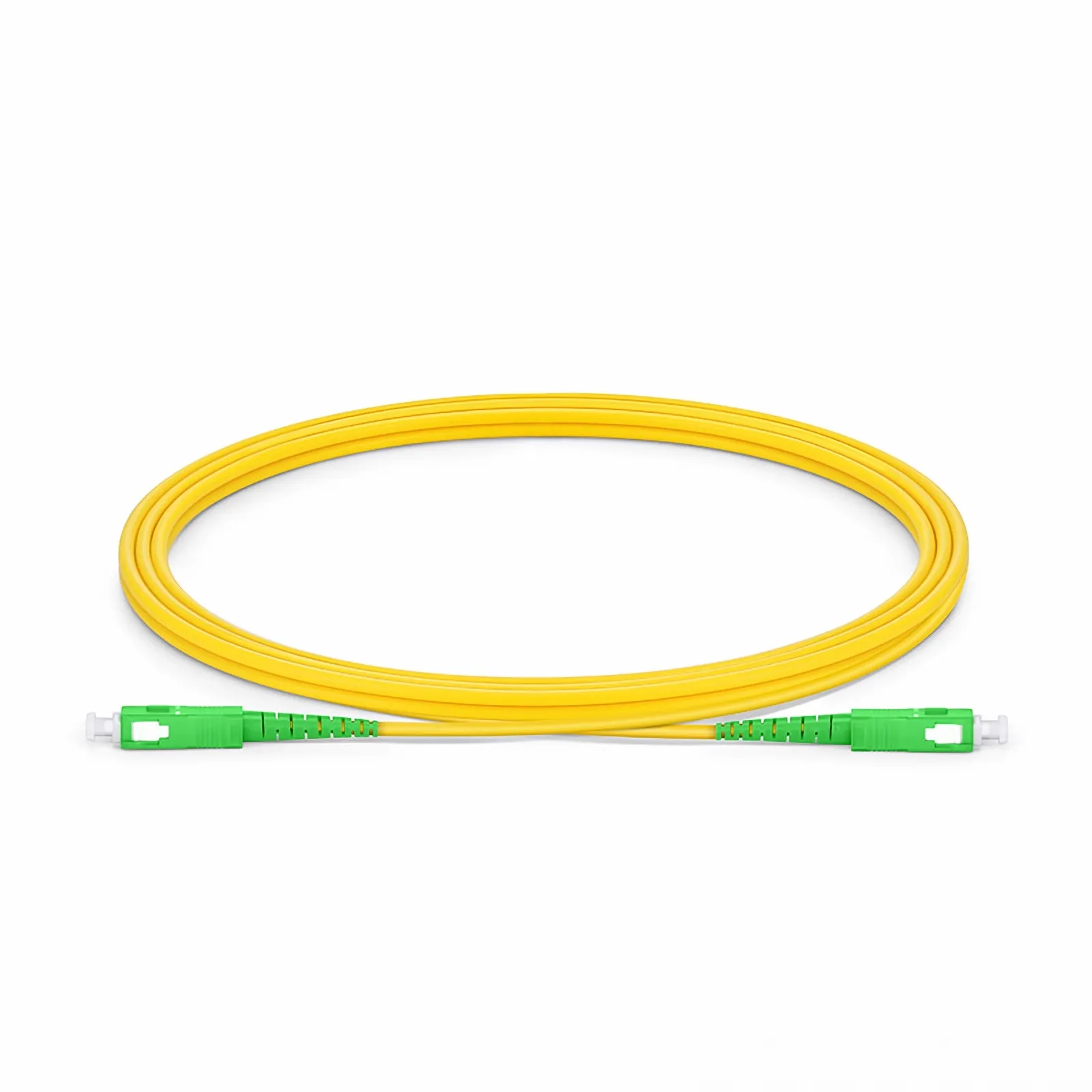

The SC APC patch cord links single mode ports across a 5m simplex run. An 8-degree angled ferrule on both ends suppresses back reflection into transmitters. Yellow LSZH jacketing marks the OS2 grade at a glance.
9/125µm G.657.A2 fiber carries 1310nm and 1550nm traffic across the assembly. Each connector holds insertion loss at or below 0.3 dB and return loss at or above 60 dB. The 2.0mm cable diameter suits high-density patch panels and shallow cable managers.
SC push-pull housings latch without a tool and release on the outer shell. Technicians can route the cord through 1U enclosures and FTTx ONT cabinets. Operating range spans -20 to 70°C, and the LSZH sheath limits smoke and halogen output in occupied rooms.
Every assembly is tested against IEC 61300-3-4 for attenuation and IEC 61300-3-6 for reflectance. APC endfaces require clean mating surfaces, so inspect and clean both ferrules before connection. The yellow jacket separates this single mode lead from multimode stock in a mixed rack.
Key Features
Angled Physical Contact Endface
The 8-degree APC polish diverts reflected light away from the transmitter core.Simplex OS2 Construction
One 9/125µm G.657.A2 fiber runs the full 5m length with a 2.0mm outer diameter.Optical Test Data
- Insertion loss maximum 0.3 dB per mated pair
- Return loss minimum 60 dB at 1310nm and 1550nm
- Verified to IEC 61300-3-4 and IEC 61300-3-6 methods
Push-Pull SC Housing
The outer shell releases the latch, which protects the ferrule during dense panel work.LSZH Jacket
Low smoke zero halogen compound meets IEC 60332-1-2 flame propagation requirements.Bend-Tolerant Fiber
G.657.A2 core geometry tolerates tighter routing radii than standard G.652.D fiber.
Specifications
| Feature | Specification |
|---|---|
| Connector A | SC/APC, 8-degree angled |
| Connector B | SC/APC, 8-degree angled |
| Polish Type | APC (angled physical contact) |
| Fiber Mode | Single mode OS2 |
| Fiber Geometry | 9/125µm, G.657.A2 |
| Fiber Count | Simplex (1 fiber) |
| Assembly Length | 5m |
| Cable Diameter | 2.0mm |
| Jacket Material | LSZH |
| Jacket Colour | Yellow |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥60 dB |
| Wavelength Range | 1310nm and 1550nm |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Flammability | IEC 60332-1-2 |
| Connector Standard | IEC 61754-4 |
| Crush Resistance | 200 N/100mm short term |
| Compliance | RoHS |
What’s in the Box
5m SC/APC to SC/APC OS2 simplex patch lead
Dust caps fitted to both connectors
Why Choose This Singlemode Lead
The angled endface geometry protects GPON and XGS-PON receivers from reflected energy.
Tested attenuation figures let engineers budget link loss before commissioning.
Bend-tolerant fiber survives tight cabinet routing without added loss.
LSZH compound suits indoor risers, comms rooms and customer premises installations.
Push-pull latching reduces ferrule damage during moves and changes on loaded panels.
Dennis Kariuki (verified owner) –
APC connectors fit the ODF cleanly. Signal’s been stable since install.
Njeri Muthoni (verified owner) –
Arrived on time.
Otis Were (verified owner) –
Sawa
Winnie Achieng (verified owner) –
5m length worked for the rack run. Loss readings looked fine on the tester.
