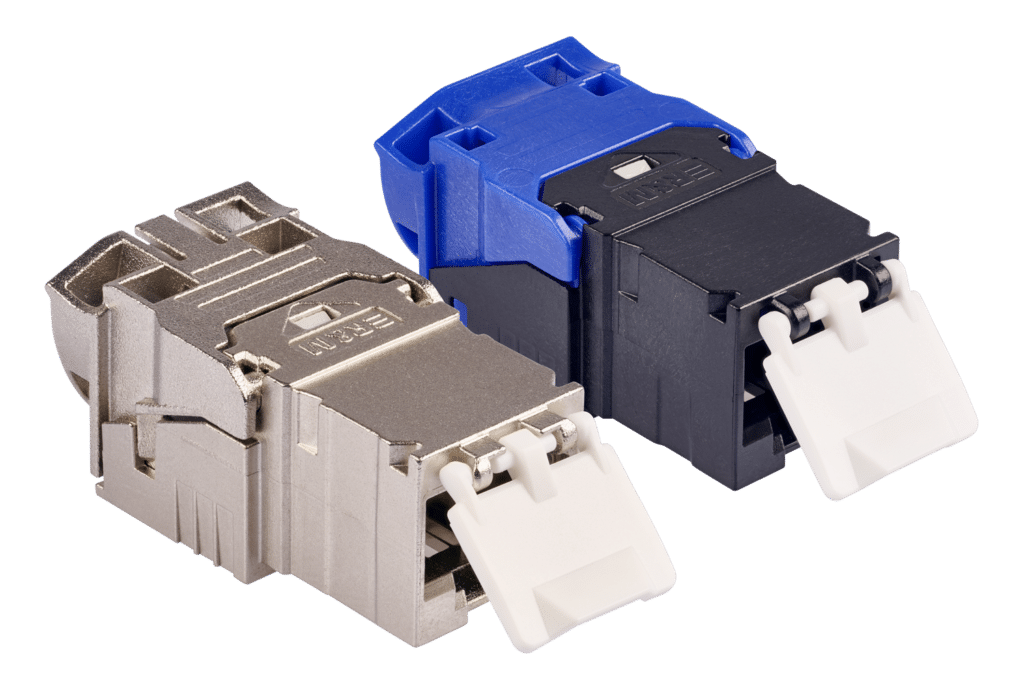

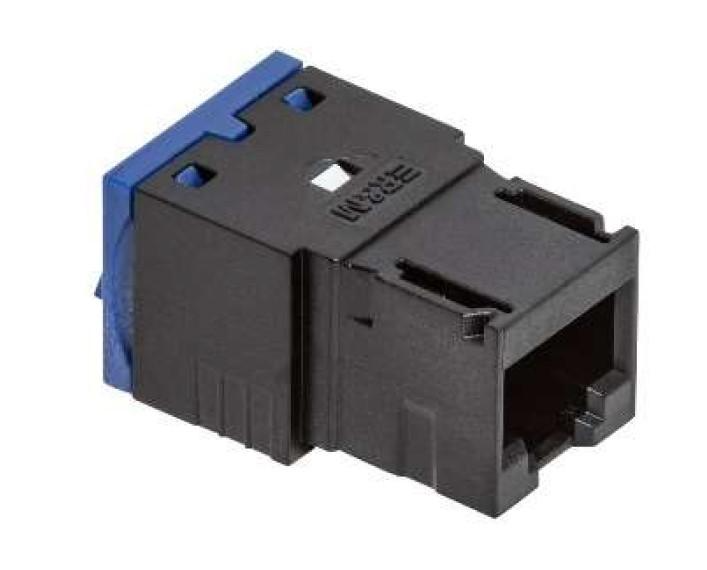

R&M R878843 Cat.6 Unshielded RJ45 Module, 10-Pack
Original price was: KSh 1,600.00.KSh 1,200.00Current price is: KSh 1,200.00. ex VAT
R&M Cat.6 Unshielded RJ45 Module, 10-Pack
| Product type | RJ45 connection module |
| Category | Cat.6 CL |
| Shielding | Unshielded |
| Wiring standard | TIA/EIA 568A/B |
| Wire diameter | AWG 22-26 |
| Housing material | Zinc die-cast |
| Protection class | IP20 |
| PoE support | IEEE 802.3af/at/bt |
| Delivery unit | 10 pieces |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Category 6 Connection Hardware
The R&M Cat.6 RJ45 module terminates solid or stranded UTP cable in structured LAN outlets and patch panels. It delivers Category 6 performance up to 250 MHz for voice and data links. The unshielded body fits indoor horizontal cabling.
An IDC termination block accepts AWG 22 to AWG 26 conductors. TIA/EIA 568A and 568B wiring maps are printed on the module. Gold-plated bronze contacts limit contact resistance below 20 mΩ.
The zinc die-cast housing survives -10 °C to +60 °C operating temperatures. IP20 protection suits controlled indoor enclosures. PowerSafe approval covers IEEE 802.3af, 802.3at and 802.3bt remote power.
Key Features
Category 6 Electrical Headroom
The module meets Cat.6 component requirements for 1000BASE-T, 2.5GBASE-T and 5GBASE-T links.UTP Keystone Module
The unshielded plastic-compatible footprint installs in R&M ELISO outlets and third-party panels with optional adapters.Termination Flexibility
- Accepts solid and stranded AWG 22-26 conductors.
- Supports TIA/EIA 568A and 568B pinouts.
- Uses insulation displacement contacts with tin plating.
Power over Ethernet Ready
PowerSafe approval and IEC 60512-99-001/002 compatibility support PoE, PoE+ and 4PPoE loads.Contact Durability
Gold plating over nickel resists corrosion, and the connector survives more than 750 mating cycles.
Specifications
| Feature | Specification |
|---|---|
| Product type | RJ45 connection module |
| Category | Cat.6 CL |
| Shielding | Unshielded |
| Connector type | RJ45 |
| Wiring standard | TIA/EIA 568A/B |
| Wire diameter | AWG 22-26 |
| Contact material | Bronze (CuSn) |
| Contact plating | Gold over nickel |
| Housing material | Zinc die-cast |
| Protection class | IP20 |
| Mating cycles | > 750 |
| Operating temperature | -10 °C to +60 °C |
| Storage temperature | -40 °C to +70 °C |
| Input-output resistance | < 200 Ω |
| Insulation resistance | > 500 MΩ at 100 V DC |
| Contact resistance | < 20 mΩ |
| PoE support | IEEE 802.3af/at/bt |
| Delivery unit | 10 pieces |
What’s in the Box
10 x Cat.6 unshielded RJ45 modules
QR-linked installation guide on the product label
Why Choose R&M
The Cat.6 outlet module provides backward compatibility with Cat.5e cabling and standard patch cords.
The 8P8C termination module uses capacitive and inductive compensation to maintain signal integrity across the re-embedded plug range.
The unshielded LAN connector supports fast field termination without special tools for UTP cable.
Halogen-free materials and RoHS II compliance suit enterprise LAN installations.
Kevin Mwangi (verified owner) –
Bought these to redo the data points in our Westlands office. The keystone clips snap in firmly and the Cat.6 terminations passed our Fluke test at 250 MHz without retries. Ten in a pack covered our floor nicely.
Achieng’ Odhiambo (verified owner) –
Good modules, colour coding on the punch-down block is clear. Only issue is the pack has no spare, so plan your terminations carefully.
Brian Kiptoo (verified owner) –
Ordered on a Tuesday, got them the next afternoon in Nairobi CBD. Used them to fix six faceplates in a cyber cafe and the contacts held up well with daily plugging.
Wanjiru Kamau (verified owner) –
These are genuine R&M, not the copycat ones we got last year that kept dropping links. Terminated ten points on a Saturday and all negotiated at 1 Gbps on first test.
Otieno Ochieng (verified owner) –
Solid unshielded module. Good enough for our small office LAN and cheap enough to keep a few spare on the shelf.
Mercy Njeri (verified owner) –
The 10-pack worked out well for my home setup. I ran Cat.6 to three bedrooms and the lounge. Punch-down guides are labelled T568A and T568B so no guessing. Contacts feel tight on the patch cords too.
Hassan Abdalla (verified owner) –
Fit is good and the snap-in clips hold the module steady in a UK-style faceplate. Build quality is a step above the unbranded ones we used before on a client install in Mombasa.
Faith Chebet (verified owner) –
Ordered for our school computer lab. The ten modules terminated cleanly and the cables clip in with a proper click. One module had a slightly stiff clip but it still seated fine.
