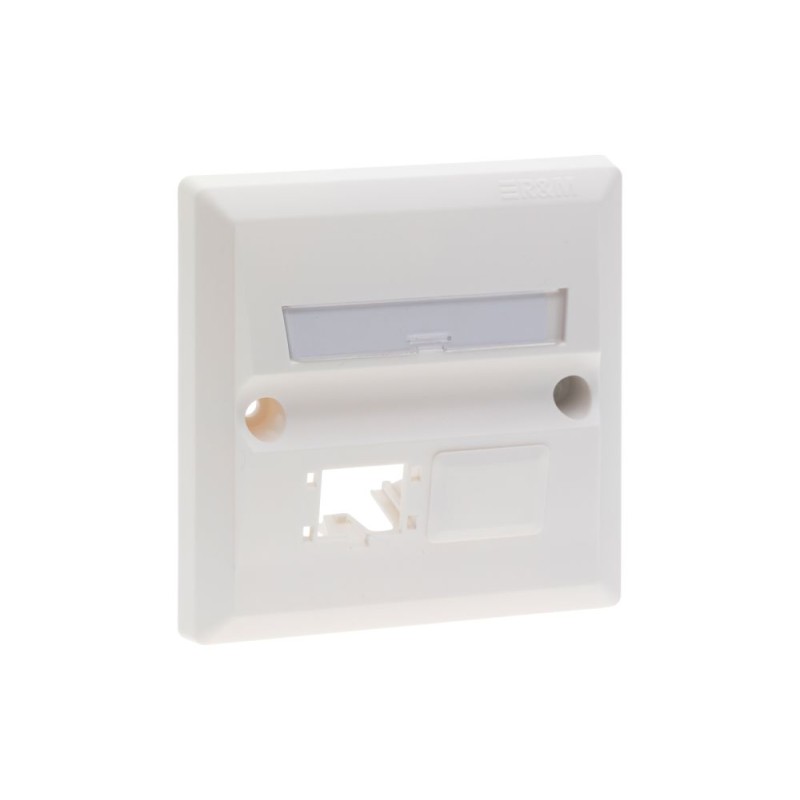

R&M R795068 BS Faceplate 86×86 2×1 Port Pure White
Original price was: KSh 227.00.KSh 180.00Current price is: KSh 180.00. ex VAT
R&M R795068 BS Faceplate 86×86 2×1 Port Pure White
| Article Number | R795068 |
| EAN / GTIN | 7611821046707 |
| Outlet Type | Faceplate |
| Capacity (Ports) | 2 x 1 |
| Dimensions (W x H) | 86 mm x 86 mm / 3.386 in x 3.386 in |
| Colour Code | RAL 9010 pure white |
| Material | Plastic: PC + ABS |
| Protection Class | IP 20 |
| Application Area | Flush mounting (FM) |
| Assembly | Empty |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
BS 86×86 Front Plate for Structured Cabling
The R&M R795068 faceplate mounts into British Standard 86 x 86 mm back boxes and accepts two 1-port RJ45 modules. It ships empty so installers fit the modules on site. The plate suits flush mounting and, with a mounting frame, surface mounting.
Two cut-outs accept RJ45 connection modules and fibre optic connectors carried on a plate. Angled outlets route patch cords downward to protect the cable bend radius. A minimum module depth of 10.5 mm keeps the assembly compatible with shallow back boxes.
The PC/ABS body carries RAL 9010 pure white and resists UV exposure. IP20 protection covers indoor office, retail, and laboratory environments. R&M recommends a back box or floor box depth of at least 70 mm.
Key Features
Two 1-Port Module Bays
The 2 x 1 capacity accepts RJ45 connection modules, ISDN modules, and fibre connectors with carrier plates.Flush and Surface Mounting
The plate clips into an 86 x 86 mm BS box or fits a surface frame for exposed cabling runs.Angled Outlet Geometry
Sloped module seats direct patch cords downward and reduce lateral strain on the jack contacts.Labelling and Security Options
- Label window with exchangeable label strips for port identification
- Ready for the R&M security system, including plug guard accessories
Halogen-Free Construction
The PC/ABS blend meets DIN/VDE 0472/815 halogen-free requirements for confined spaces.
Specifications
| Feature | Specification |
|---|---|
| Article Number | R795068 |
| EAN / GTIN | 7611821046707 |
| Outlet Type | Faceplate |
| Capacity (Ports) | 2 x 1 |
| Application Area | Flush mounting (FM) |
| Assembly | Empty (modules ordered separately) |
| Protection Class | IP 20 |
| Dimensions (W x H) | 86 mm x 86 mm / 3.386 in x 3.386 in |
| Colour Code | RAL 9010 pure white |
| Material | Plastic: PC + ABS |
| Standard | Halogen-free, in accordance with DIN/VDE 0472/815 |
| Minimum Module Depth | 10.5 mm |
| Recommended Box Depth | 70 mm or more |
| Mounting Options | Flush mounting; surface mounting with mounting frame |
| Delivery Unit | 1 piece |
What’s in the Box
BS front plate 86×86, 2×1 port, pure white
Label window with exchangeable label strips
Why Choose R&M BS Faceplate
The 2 x 1 module bay accepts copper and fibre connectors, so one plate covers mixed outlet designs.
PC/ABS construction and UV-resistant pigment hold colour and mechanical strength in daylit spaces.
The angled module seat protects patch cord jackets from kinks at the jack entry point.
Exchangeable label strips simplify re-labelling during moves, adds, and changes.
