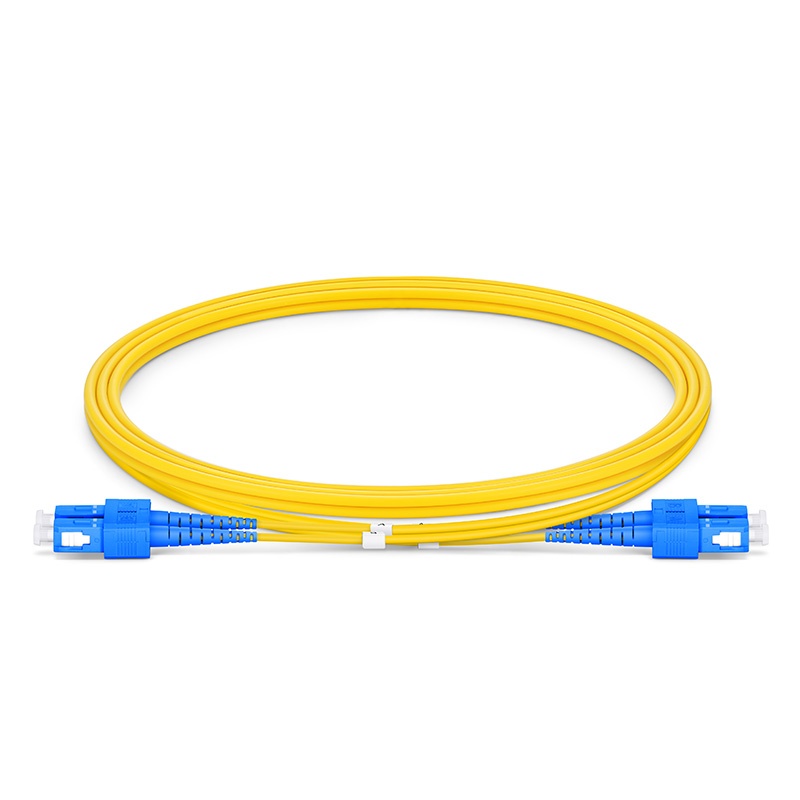

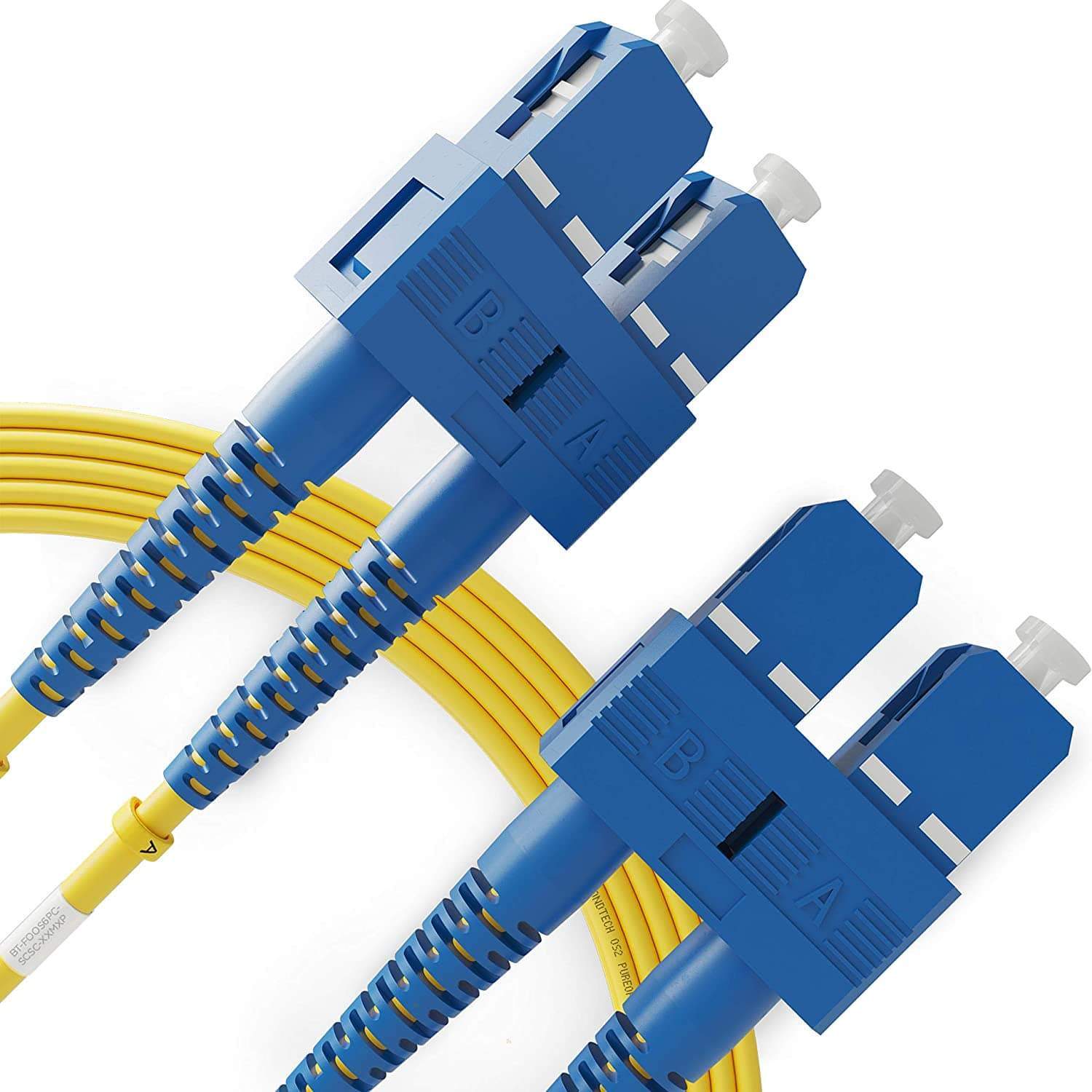

OEM OS2 Single Mode SC-SC UPC Fiber Patch Cord
WhatsApp for availability
OEM OS2 Single Mode SC-SC UPC Fiber Patch Cord
| Feature | Detail |
|---|---|
| Fiber Grade | OS2 Single Mode |
| Connectors | SC to SC |
| Polish | UPC |
| Core/Cladding | 9/125μm |
| Insertion Loss | ≤ 0.3 dB |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
OEM OS2 Single Mode Patch Cord
The OEM OS2 SC-SC UPC provides high-bandwidth data transmission over long distances. This optical fiber assembly utilizes 9/125 micron single-mode glass. It supports 10Gbps, 40Gbps, and 100Gbps Ethernet protocols. The SC to SC connectors feature Ultra Physical Contact polishing. This reduces back reflection and optimizes signal integrity.
The core of the fiber consists of high-quality silica glass. Cladding measures 125 microns in diameter. These dimensions ensure compatibility with standard single-mode networking equipment. SC connectors utilize a push-pull latching mechanism. This design prevents accidental disconnects in high-density patch panels. The UPC finish minimizes signal degradation. It reflects less light back toward the source compared to standard PC finishes. Network engineers utilize these jumpers for backbone cabling. They link core switches to distribution frames. The OS2 rating allows for distances up to 10 kilometers at 1310nm. At 1550nm, the reach extends significantly further. Each cable undergoes rigorous testing for insertion loss.
Additionally, the outer jacket uses Low Smoke Zero Halogen materials. This reduces toxic gas emission during combustion. It meets safety requirements for plenum or riser environments. The cable maintains a minimum bend radius of 30mm. This flexibility aids in cable management within tight enclosures. Ceramic ferrules provide precise alignment for the fiber cores. This alignment is critical for maintaining low attenuation. The manufacturing process adheres to ITU-T G.652.D specifications. This ensures low water peak performance. It allows for operation across the entire E-band to L-band spectrum. Engineers can deploy these in Coarse Wavelength Division Multiplexing environments. The cables withstand temperature fluctuations from -20°C to +70°C. This thermal stability prevents signal fluctuations in unconditioned spaces.
Key Features
Connector Precision
Ceramic ferrules ensure accurate fiber alignment to minimize signal loss during transmission.Optical Performance
- Insertion loss remains below 0.3dB across all tested wavelengths.
- Return loss exceeds 50dB due to the Ultra Physical Contact polishing.
Standard Compliance
The assembly meets TIA/EIA-568-C.3 and ISO/IEC 11801 standards for optical fiber cabling.
Specifications
| Feature | Specification |
|---|---|
| Fiber Type | OS2 Single Mode 9/125μm |
| Connector Type | SC to SC |
| Polish Type | UPC (Ultra Physical Contact) |
| Wavelengths | 1310nm / 1550nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Operating Temp | -20°C to +70°C |
What’s in the Box
OS2 Single Mode SC-SC UPC Fiber Patch Cord
Individual Test Report
Protective Dust Caps
Why Choose OEM OS2 Patch Cord
High-purity glass reduces chromatic dispersion for clear signal reproduction over extended spans.
LSZH construction ensures compliance with stringent fire safety regulations in commercial buildings.
Factory-terminated connectors provide superior reliability compared to field-terminated optical links.
