OEM Advanced ZL Bracket 280kg Magnetic Lock Mount
Original price was: KSh 2,300.00.KSh 1,800.00Current price is: KSh 1,800.00. ex VAT
OEM Advanced ZL Bracket 280kg Magnetic Lock Mount
| Feature | Specification |
|---|---|
| Material | Anodized Aluminum |
| Compatibility | 280kg (600lbs) Locks |
| Application | Inward Opening Doors |
| Bracket Type | Z & L Assembly |
Shipping & Delivery
Delivery
We deliver to the address you provide. Nairobi CBD is often same-day on business days.
Nairobi CBD or Kenya-wide
Free CBD ≥ KES 20,000; else from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Advanced ZL Bracket

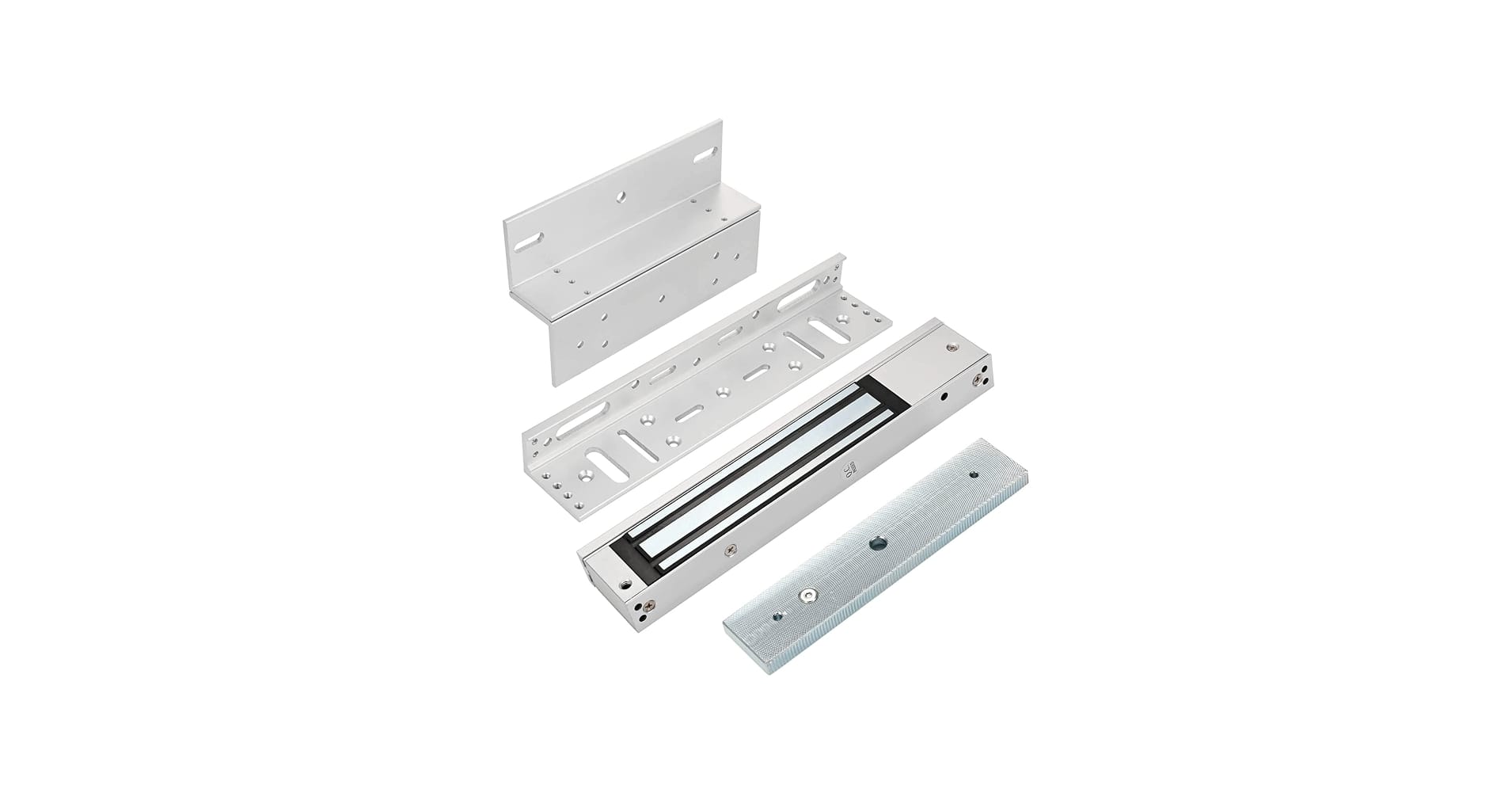

The OEM Advanced ZL Bracket facilitates the mounting of electromagnetic locks on doors that swing inward. This configuration protects the locking hardware from external tampering. It keeps all components inside the secure perimeter. Engineers utilize this hardware when the door frame lacks space for a standard installation. The system consists of a reinforced L-bracket and a modular Z-bracket assembly.
The L-section attaches directly to the door header. It provides a stable flat surface for the magnetic lock body. Installers must ensure the header supports the shear force during forced entry. The Z-section mounts to the door leaf. It creates the offset to align the armature plate with the magnet. This alignment remains critical for maintaining the rated holding force.
The manufacturing process utilizes high-strength aluminum alloy. This material ensures the bracket remains lightweight yet resistant to deformation. Anodized finishes provide a protective layer against environmental corrosion. This surface treatment hardens the exterior for long-term durability. The bracket includes pre-drilled holes that follow industry-standard patterns. This standardization reduces installation time for technicians.
Adjustability serves as a core design principle for this mounting kit. The Z-bracket consists of two interlocking pieces. Technicians can adjust the depth to accommodate varying door thicknesses. Proper adjustment ensures the armature plate makes full contact with the magnet. Any air gap between these surfaces significantly degrades the magnetic flux. This degradation reduces the overall security of the access point.
This mounting hardware integrates with most 280kg magnetic locks. It supports standard DC12V and DC24V lock models. The kit includes necessary machine screws and hex bolts. Procurement managers should verify the door material before installation. Metal doors may require blind nuts or specialized anchors. Wood doors require heavy-duty lag screws for secure attachment.
Key Features
High-Strength Alloy
The assembly uses 6061-T6 aluminum to maintain structural integrity under high pressure.Modular Z-Assembly
- Two-piece design allows for depth adjustment
- Accommodates door thicknesses from 35mm to 55mm
Surface Protection
- Anodized finish prevents oxidation in humid environments
- Sandblasted texture resists visible scratching during maintenance
Specifications
| Feature | Specification |
|---|---|
| Material | 6061-T6 Aluminum Alloy |
| Lock Compatibility | 280kg / 600lbs Series |
| Door Type | Inward-Swing (90 Degrees) |
| L-Bracket Dimensions | 250 x 48 x 30 mm |
| Z-Bracket Dimensions | 180 x 50 x 50 mm |
| Surface Treatment | Anodized Sandblast |
What’s in the Box
1 x L-Bracket
1 x Z-Bracket Assembly (2 Parts)
Mounting Screw Kit
Installation Template
Why Choose Advanced ZL Bracket
Internal installation prevents unauthorized access to the lock body from the exterior.
Slotted mounting holes allow for fine-tuned horizontal and vertical armature alignment.
High-grade aluminum maintains structural rigidity under constant mechanical stress cycles.
