Nexa Desk Socket Silver Pop-up Multifunction with CAT6, HDMI, VGA and USB-C

Retractable Desk Connectivity Hub

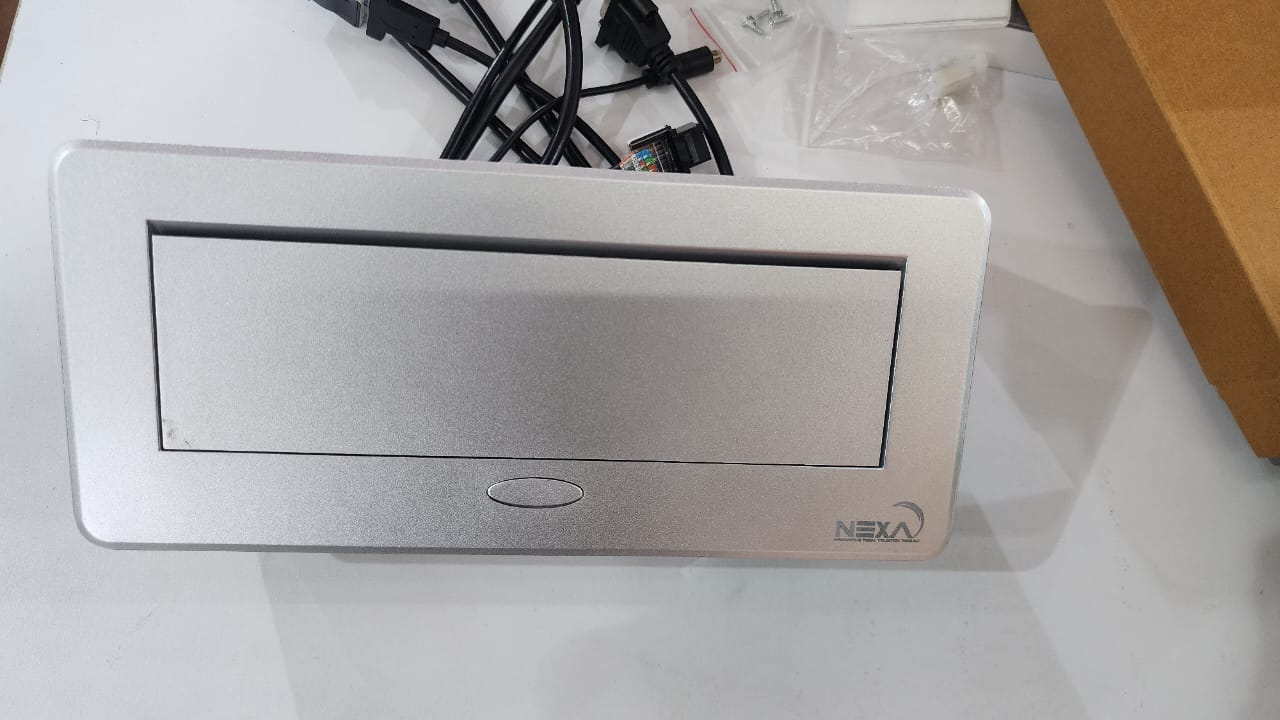

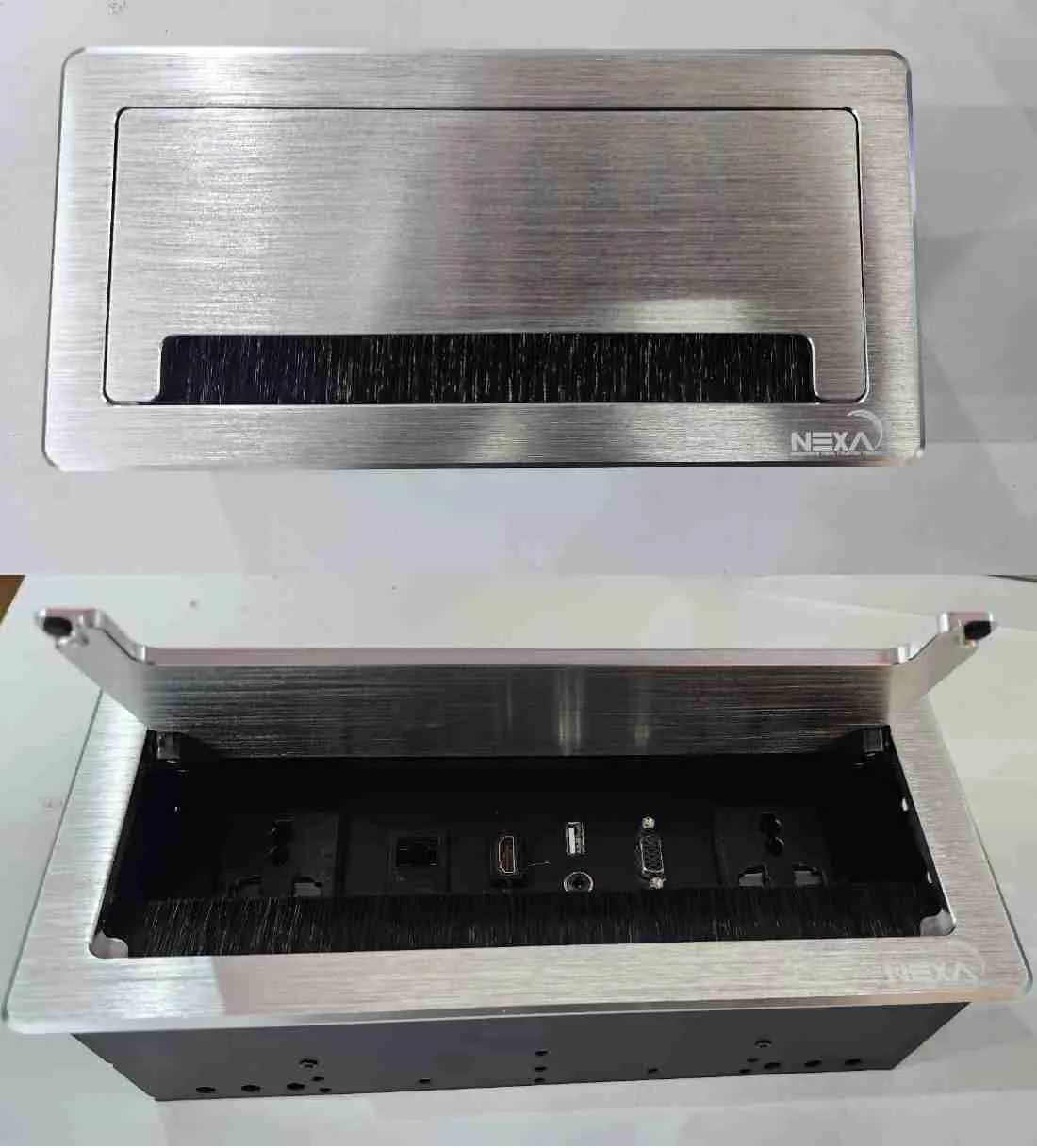

The Nexa desk socket integrates two universal AC outlets with AV, data and charging interfaces in a silver zinc alloy housing. The spring-loaded column retracts flush with the worktop and rises for access.

An HDMI 1.4/2.0 port carries digital video and audio up to 4K at 30 Hz. A VGA port keeps legacy projectors connected, and a 3.5 mm stereo jack handles analogue input and output. The USB Type-A port supplies 5V/2A charging to handsets and tablets.

Two CAT6 RJ45 ports support Gigabit Ethernet links for laptops and conference hardware. One USB Type-C 2.0 port transfers data at 480 Mbps. Each interface ends in a 30 cm pre-attached cable that routes to a floor box or under-desk switch.

Key Features

• Spring-Loaded Column
  A manual pop-up mechanism lifts the port plate clear of the surface and locks it at full extension.

• Metal Housing
  Zinc alloy and iron form a rigid body with a silver metallic finish that resists scratches on shared desks.

• Interface Set

  • 2x universal AC sockets rated 13A at 250V
  • 1x HDMI 1.4/2.0, 1x VGA, 1x 3.5mm stereo audio
  • 1x USB Type-A at 5V/2A, 1x USB Type-C 2.0 at 480 Mbps
  • 2x CAT6 RJ45 for Gigabit Ethernet

• Pre-Attached Cables
  All ports ship with 30 cm leads, so installers avoid field termination and crimp tools.

• Compact Footprint
  The retracted body measures 150 x 90 x 60 mm and requires 38 mm of mounting depth.

• Dust Protection
  The closed plate shields contacts and ports when the unit sits flush between meetings.

• Audio Passthrough
  The 3.5 mm jack accepts stereo input and output for headsets and conference speakers.

Specifications

What’s in the Box

• Pop-up multifunction socket unit

• Mounting screws

• Cutout template

• Quick start guide

Why Choose Nexa Silver Pop-up Socket

• Two AC outlets and eight data or AV ports cover a full workstation from one cutout.

• The retractable column keeps the worktop clear between sessions.

• CAT6 RJ45 ports carry Gigabit traffic without an external adapter.

• USB-C 2.0 and USB-A cover modern and legacy charging devices.

• HDMI and VGA outputs serve both current and older projectors.

• 30 cm leads reach under-desk patch panels and power distribution units.

• Silver finish matches aluminium laptop bodies and docking stations.
