Mercusys MS110CMP 10-Port Desktop Switch with 8 PoE+ Ports, 115 W Budget
Original price was: KSh 19,300.00.KSh 14,400.00Current price is: KSh 14,400.00. ex VAT

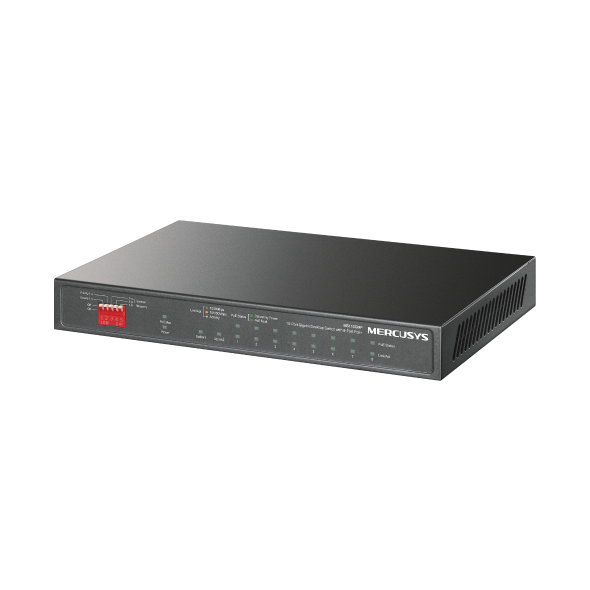

Mercusys MS110CMP 10-Port Desktop Switch with 8 PoE+ Ports, 115 W Budget
| Model | MS110CMP |
| Ports | 8× 10/100 Mbps PoE+ (802.3af/at) + 2× Gigabit non-PoE uplink |
| PoE Budget | 115 W total, 30 W per port maximum |
| Switching Capacity | 5.6 Gbps |
| MAC Table | 2K entries |
| Power Supply | External adapter 53.5 V / 1.31 A |
| Extend Mode | PoE reach up to 250 m (ports drop to 10 Mbps) |
| Dimensions | 171 × 98 × 27 mm, metal fanless casing |
| Installation | Desktop or wall mount |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Unmanaged PoE+ Switching for Small Networks
The Mercusys MS110CMP is a fanless desktop switch that carries data and DC power over a single Ethernet run to eight powered devices. Two dedicated Gigabit uplink ports feed the core network and a recorder. A 115 W power budget covers cameras, access points and IP phones.
Ports 1 to 8 negotiate at 10/100 Mbps and comply with IEEE 802.3af and 802.3at. Each port delivers up to 30 W, so a pan-tilt-zoom camera or a Wi-Fi 6 access point runs without a local injector. Auto-negotiation and Auto MDI/MDIX remove crossover cable requirements on every run.
The chassis measures 171 × 98 × 27 mm and ships with an external 53.5 V / 1.31 A adapter. A metal shell dissipates heat without a fan, which keeps acoustic noise out of offices and reception areas. Installers mount the unit on a desk or a wall bracket.
Key Features
Eight PoE+ Ports plus Two Uplinks
Eight Fast Ethernet ports supply 802.3af/at power, while two Gigabit ports carry uplink traffic at 10/100/1000 Mbps.115 W Shared Power Budget
The external adapter reserves 115 W across all powered ports, with a 30 W ceiling per port for higher-draw devices.Extend Mode and Isolation Control

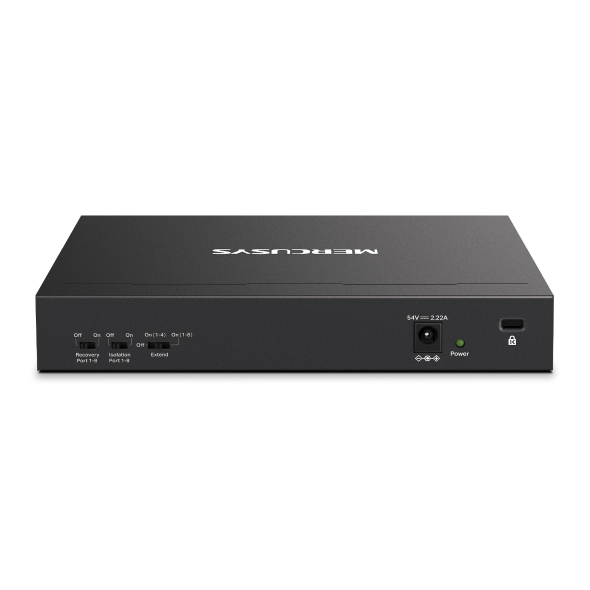

- Extend mode stretches PoE reach to 250 m and drops affected ports to 10 Mbps for long cable runs.
- Isolation mode separates ports 1 to 8 from one another to block broadcast storms and snooping.
- With isolation active, both Gigabit ports act as uplinks: one to the LAN, one to the NVR.
PoE Auto Recovery
The switch watches for silent powered devices and reboots a port when the connected node stops replying.Store-and-Forward Forwarding
A 2K MAC table with automatic learning and aging, plus 2 KB jumbo frames, keeps surveillance streams in order.
Specifications
| Feature | Specification |
|---|---|
| Model | MS110CMP |
| Total Ports | 10 |
| PoE+ Ports | 8× RJ45 10/100 Mbps (ports 1-8), IEEE 802.3af/at |
| Uplink Ports | 2× RJ45 10/100/1000 Mbps, non-PoE |
| PoE Power Budget | 115 W total, 30 W maximum per PoE port |
| Switching Capacity | 5.6 Gbps |
| MAC Address Table | 2K entries, auto learning and aging |
| Jumbo Frame | 2 KB |
| Data Rates | 10/100 Mbps half duplex, 20/200 Mbps full duplex |
| Standards | IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at |
| Power Supply | External adapter, output 53.5 V / 1.31 A, input 100-240 V AC |
| Max Power Consumption | 3.79 W without PDs, 130.49 W with 115 W PD load |
| Dimensions (W × D × H) | 171 × 98 × 27 mm |
| Installation | Desktop or wall mount |
| Casing | Metal, fanless |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Management | Unmanaged, plug and play |
What’s in the Box
10-port 10/100 Mbps desktop switch with 8 PoE+ ports (MS110CMP)
External power adapter (53.5 V / 1.31 A)
Quick installation guide
Why Choose the MS110CMP
Runs IP camera estates and wireless access points from one power source, cutting injector count and cabling cost.
Fast Ethernet edge ports plus Gigabit uplinks match the bandwidth profile of compressed video streams.
Fanless metal housing suits enclosed cabinets, reception desks and small comms rooms.
Unmanaged operation needs no console session, so a technician can deploy the unit in minutes.
A 0-40 °C operating range and non-condensing humidity rating cover typical indoor enclosures.
