M215HAN01.1 21.5-Inch FHD AHVA LCD Panel 1920×1080 30-Pin LVDS Matte

21.5-Inch Full HD Module for All-in-One Desktops

The M215HAN01.1 LCD panel is a 21.5-inch a-Si TFT-LCD module built for all-in-one desktop replacement. It renders 1920 x 1080 across an AHVA cell in normally black transmission mode. A matte hard coating rated 3H covers the front surface and limits reflections under office lighting.

Native resolution runs 1920 x 1080 at 102 PPI with RGB vertical stripe pixels on a 0.24795 mm pitch. Brightness reaches 250 cd/m² typical against a 1000:1 contrast ratio, and the cell covers 72 percent NTSC through 6-bit plus Hi-FRC driving. Viewing angles hold 89 degrees on all four axes at CR 10 or better.

Signal entry uses a 30-pin LVDS link in two-channel 8-bit format at 5.0 V drive voltage. A 15S4P white LED edge strip supplies backlight without an integrated driver and carries a 30,000-hour rating. The active area measures 476.064 x 267.786 mm inside an outline of 484.5 x 284.4 mm, and the module weighs 1.58 kg.

Key Features

• AHVA Cell with 89-Degree Viewing
  The wide-viewing cell holds contrast and colour from the side, which matters on shared reception and counter desks.

• Three-Sided Borderless Frame

  • Left, right and top edges run without a bezel step
  • Outline thickness measures 8.55 mm typical and 13.35 mm maximum
  • Suits slim all-in-one chassis and near-edge display housings

• 30-Pin LVDS Interface
  Two-channel 8-bit LVDS carries the video stream over a single 30-pin terminal connection.

• Matte 3H Hard Coating
  The anti-glare surface resists scratches from cleaning cloths and stylus contact.

• Rear M3 Mounting Points

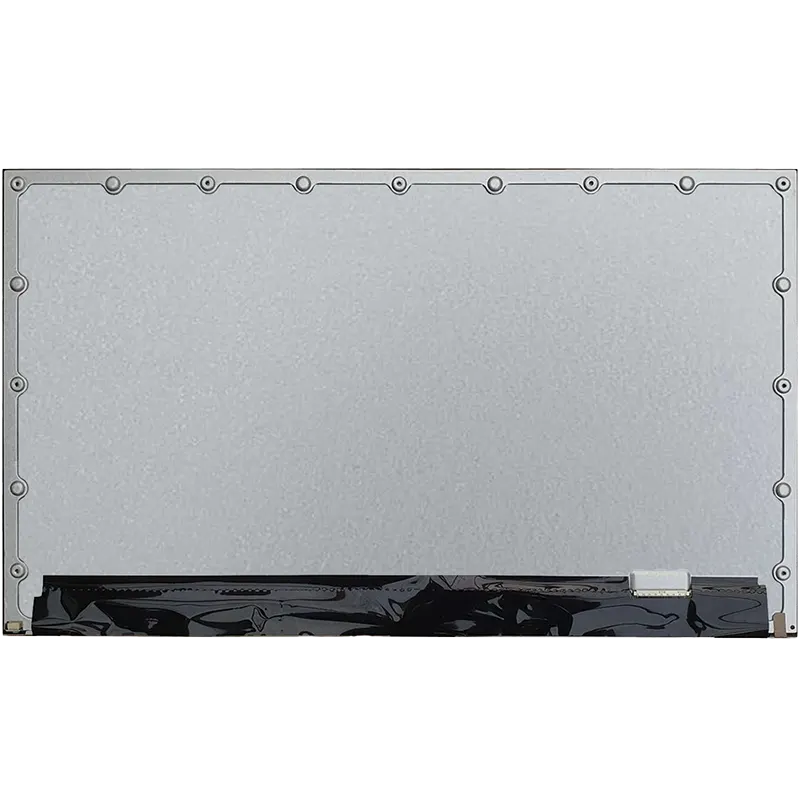

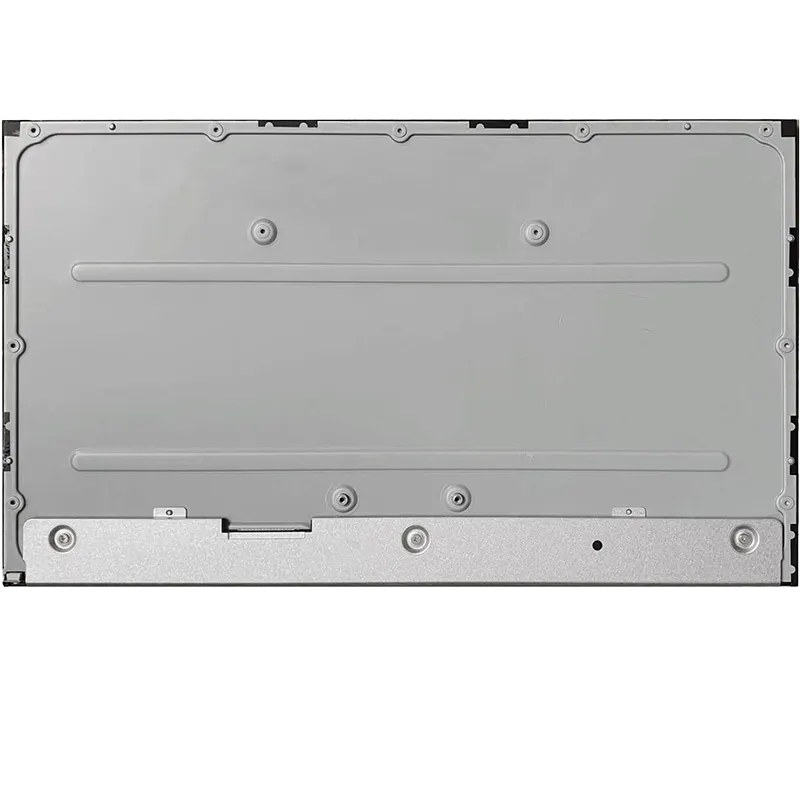

  Thirteen M3 threaded holes on the rear frame secure the module to the chassis bracket.

• Driverless LED Backlight
  The 15S4P white LED strip takes external drive current, so the host board supplies the backlight converter.

• Wide Thermal and Vibration Range
  Operation holds from 0 °C to 50 °C, storage from –20 °C to 60 °C, and the module resists 1.5 G vibration.

Specifications

What’s in the Box

• 21.5-inch LCD module

• Protective film and foam packing

Why Choose This Replacement Module

• A 30-pin LVDS input matches the harness already fitted to most 21.5-inch all-in-one chassis.

• Rear M3 holes let technicians transfer the original bracket without drilling or adhesive.

• The matte 3H coating keeps glare down in bright rooms and resists cleaning marks.

• 250 nits and a 1000:1 ratio suit spreadsheet, point-of-sale and front-desk duty.

• An external backlight driver path allows reuse of the existing inverter board after a panel swap.
