Lightwave LC-LC Duplex OM2 MM 3M LSZH Fiber Patch Cord

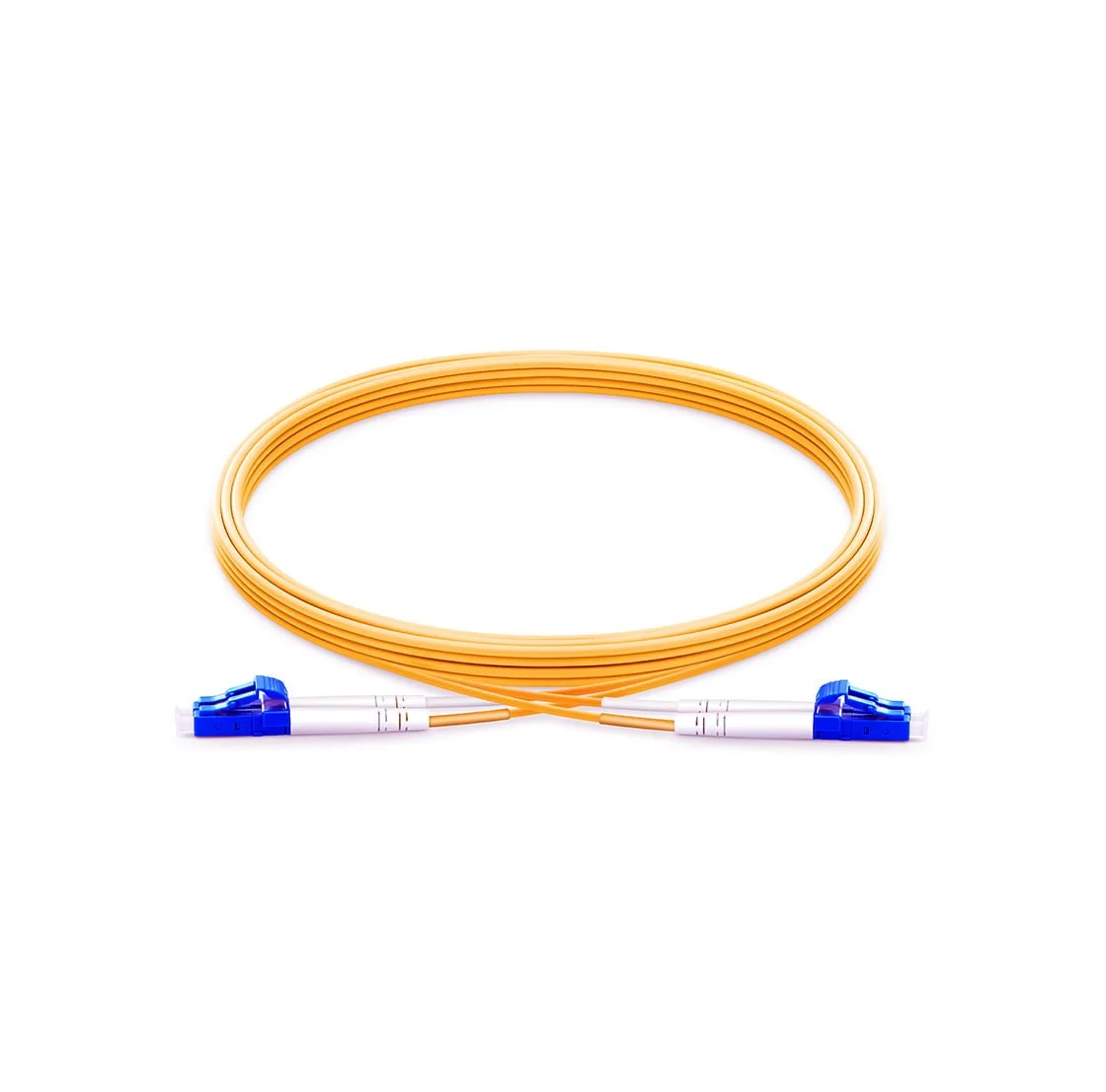

Lightwave LC-LC OM2 Duplex Patch Cord

The Lightwave LC-LC OM2 Patch facilitates high-speed data transmission across local area network backbones and storage area networks. This duplex fiber optic assembly utilizes 50/125 micron multimode glass to support Gigabit Ethernet applications. It provides a reliable link for short-to-medium distance interconnects within data centers and telecommunication rooms. The cable features LC connectors on both ends with Ultra Physical Contact (UPC) polishing. This specific polish minimizes back reflection and optimizes signal integrity at the connection points. Each connector employs a 1.25mm ceramic ferrule to ensure precise axial alignment between fiber cores. The three-meter length allows for flexible routing between adjacent racks or within a single enclosure. This patch cord meets rigorous industry standards for attenuation and return loss performance.

Key Features

• Low Smoke Zero Halogen Jacket
  The LSZH outer sheath minimizes the emission of corrosive gases and toxic smoke during combustion events in confined spaces.

• OM2 Multimode Core Technology

  • Utilizes a 50µm core and 125µm cladding diameter.
  • Supports 1Gbps data rates up to 550 meters at 850nm.
  • Provides 500 MHz·km overfilled launch bandwidth.

• Duplex Zip-cord Construction
  Two individual fiber strands are joined by a central web to enable simultaneous bi-directional data flow between networking hardware.

• Small Form Factor Connectors

  • LC connectors reduce space requirements on high-density patch panels.
  • Integrated trigger mechanisms prevent accidental disconnection in crowded environments.
  • Standardized color-coded clips identify polarity during installation.

Specifications

What’s in the Box

• 1 x Lightwave 3M LC-LC OM2 Duplex Fiber Patch Cord

• 2 x Protective Dust Caps (Pre-installed)

Why Choose Lightwave OM2 Fiber

• The 50/125 micron core provides significantly higher bandwidth capacity than legacy 62.5 micron OM1 fiber types.

• LSZH jacketing ensures full compliance with international safety codes for installation in air-handling plenums and riser shafts.

• Precision-molded LC connectors offer a secure latching mechanism that maintains signal stability under physical vibration.

• Factory-terminated assemblies undergo individual testing for insertion loss to guarantee immediate performance upon deployment.
