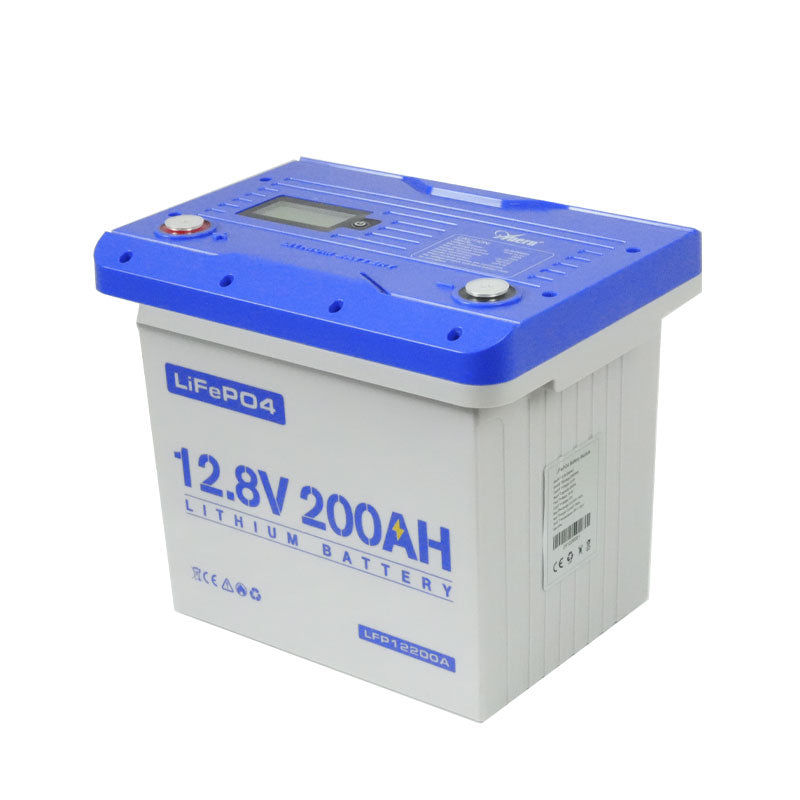

LFP12200 12.8V 200Ah LiFePO4 Lithium Battery 2560Wh IP65 M8

LiFePO4 Energy Storage Module for Deep-Cycle Applications

The LFP12200 lithium battery delivers 12.8 V nominal and 200 Ah capacity in a 4S2P prismatic cell arrangement. It stores 2560 Wh and replaces lead-acid blocks in solar, UPS and telecom cabinets. The ABS case measures 522 x 244 x 223 mm and weighs 20.2 kg.

A built-in battery management system balances cells and protects against overcharge, overdischarge, overcurrent and short circuit. Maximum continuous discharge reaches 200 A, with a 600 A pulse for five seconds. Recommended charge current is 50 A at an upper limit of 14.6 V.

The IP65 enclosure handles dust and water jets, and an integrated handle eases lifting. Series and parallel links support up to four units, which scales a bank to 48 V or 800 Ah. The cells rate 5000 cycles at 80 percent depth of discharge.

Key Features

• Prismatic LiFePO4 Cells
  Four series pairs of prismatic cells form a 12.8 V block with stable thermal behaviour.

• Integrated Battery Management

  • Cell balancing across the 4S2P string
  • Overcharge, overdischarge and overcurrent cut-off
  • Short-circuit and reverse-polarity protection

• Discharge Capability
  The 200 Ah module sustains 200 A continuous and 600 A for five seconds, which covers inverter surge loads.

• IP65 Sealed Enclosure
  The ABS shell blocks dust ingress and resists water jets from any direction.

• Series and Parallel Scaling

  • Up to four units in series for 48 V banks
  • Up to four units in parallel for 800 Ah capacity
  • M8 terminals accept standard lug connectors

• Cycle Life and Depth of Discharge
  The cell chemistry rates 5000 cycles at 80 percent DOD, which lowers replacement frequency against SLA blocks.

• Operating Envelope

  • Charge from 0 to 55 degrees C
  • Discharge from -20 to 55 degrees C
  • Self-discharge at or below 2 percent per month

Specifications

What’s in the Box

• LFP12200 battery module

• Terminal bolt set for M8 posts

• Product documentation

Why Choose the LFP12200

• A 200Ah lithium battery weighs 20.2 kg, which is roughly a third of an equivalent lead-acid block and simplifies cabinet mounting.

• The LiFePO4 module holds a flat discharge curve near 12.8 V, so inverters and DC loads see stable input across most of the usable capacity.

• An IP65 housing and sealed ABS case suit outdoor cabinets, marine lockers and dusty plant rooms.

• Integrated BMS protection removes the need for external balancing hardware in small solar and backup banks.

• Series and parallel scaling to four units covers 12 V, 24 V, 36 V and 48 V system designs from one part number.
