Lenovo X1 Yoga Gen2 Special Frame LCD Assembly 14″ FHD Touch 30-Pin eDP

Replacement Display Module for X1 Yoga 2nd Gen

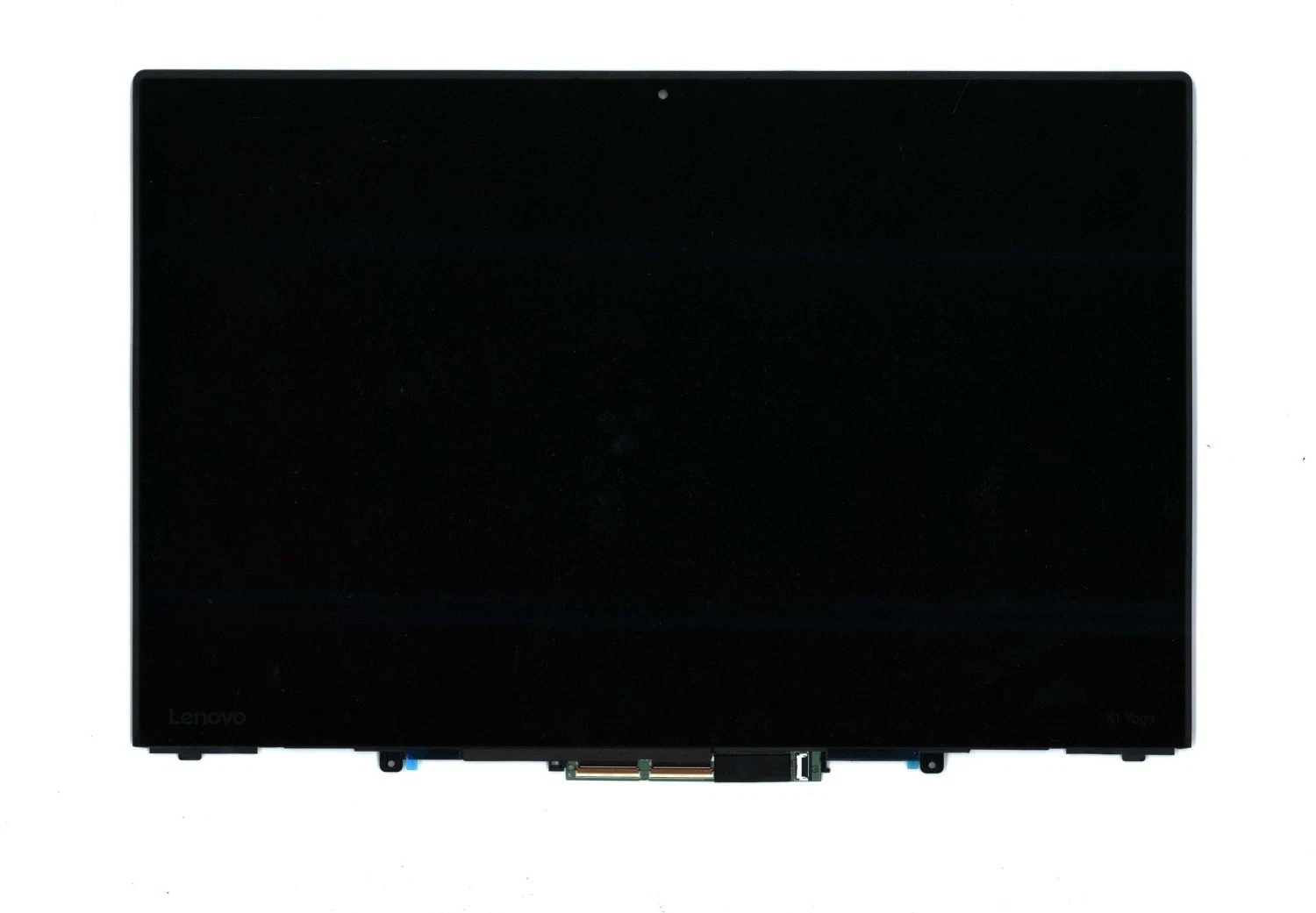

The Lenovo X1 Yoga Gen2 special frame LCD assembly restores the 14-inch FHD touch display on ThinkPad X1 Yoga 2nd Gen laptops. It bundles the LCD panel, digitizer, reinforced frame and 30-pin eDP connector into one serviceable unit. The assembly targets bench repairs where the original panel has cracked or lost touch response.

The 1920 x 1080 IPS panel delivers 270 nits brightness with an anti-glare finish. A 10-point capacitive digitizer sits beneath scratch-resistant glass. The 30-pin eDP interface connects at the bottom right of the panel and matches the factory cable routing. The module includes an HD camera cutout and the original bezel profile.

Lenovo service documentation lists the display assembly as a single FRU for the 20JD, 20JE, 20JF and 20JG machine types. The reinforced frame adds rigidity around the hinge mounts, which limits flex during Yoga-mode transitions. The assembly weighs approximately 380 g and ships as a sealed unit. Installation requires a Torx T8 driver, a Phillips PH00 driver and a plastic scribe for bezel separation.

Key Features

• Complete FHD Touch Assembly
  The unit arrives with the LCD panel, digitizer, frame and eDP connector pre-fitted, which shortens bench time on panel swaps.
• Reinforced Special Frame
  A strengthened frame surrounds the panel and hinge mounts, which reduces chassis flex during 360-degree rotation.
• 30-Pin eDP Interface
  • Connector position at bottom right matches the factory cable path.
  • Pinout follows the Lenovo X1 Yoga 2nd Gen service specification.
  • Compatible with 20JD, 20JE, 20JF and 20JG machine types.
• 10-Point Multi-Touch Digitizer
  The capacitive layer supports gesture input and pen interaction across the full 14-inch surface.
• Anti-Glare IPS Panel
  The 1920 x 1080 IPS panel runs at 270 nits and carries an anti-glare coating for office lighting conditions.
• Integrated Camera Cutout
  The bezel accommodates the HD camera module and microphone array without modification.

Specifications

What’s in the Box

• X1 Yoga Gen 2 special frame LCD assembly with touch digitizer
• Pre-fitted 30-pin eDP cable

Why Choose This X1 Yoga Assembly

• One FRU covers panel, digitizer and frame, which reduces parts handling on repair benches.
• The reinforced frame restores hinge rigidity after drop or hinge-mount damage.
• Pre-fitted eDP cable removes the need to transfer delicate connectors from the old panel.
• The 1080p IPS panel matches the original brightness and viewing angles for office deployment.
• Machine-type coverage spans four X1 Yoga 2nd Gen SKUs, which simplifies spares stocking.
