Huawei S380-L4T1T Multi-Service Gateway, 1 GE WAN, 4 GE LAN, 150 Users, 2 Gbps

Multi-Service Gateway for SME Networks

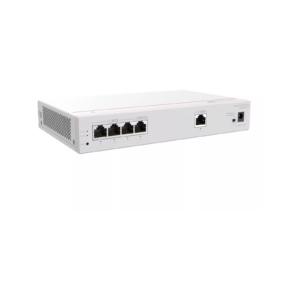

The Huawei S380-L4T1T is a compact multi-service gateway for small and midsize enterprise networks. It combines one Gigabit Ethernet WAN uplink with four Gigabit Ethernet LAN ports. The fanless chassis suits office cabinets, retail counters and branch rooms where silent operation matters.

This Huawei eKit gateway pairs 512 MB DDR4 memory with 512 MB NAND flash for routing, NAT and DHCP services. The gateway provides 8 Gbps switching capacity and 2 Gbps forwarding performance for daily office traffic. It manages up to 150 users and can act as a wireless access controller for compatible eKit access points.

The fanless SME gateway uses a metal enclosure measuring 35 x 210 x 130 mm and weighs about 0.8 kg without packaging. A 12 V DC adapter powers the unit, which draws a maximum of 6.11 W. Operators can place it on a desk or mount it on a wall. The fanless design supports 0°C to 40°C operating temperatures.

Key Features

• Gigabit WAN and LAN Ports
  This Gigabit WAN gateway exposes one 10/100/1000BASE-T WAN port and four 10/100/1000BASE-T LAN ports for wired uplinks and local devices.

• Integrated Wireless Control

  • Manages up to 32 compatible eKit access points.
  • Centralizes SSID and AP configuration through the gateway interface.

• Routing and WAN Services
  The S380-L4T1T router supports static routing, NAT, DHCP server and client, PPPoE client and IP-based load balancing.

• VLAN and Switching Functions

  • Provides 16 VLANs with access, trunk and hybrid port modes.
  • Supports port-based VLAN assignment and a 2K MAC address table.

• Fanless Metal Chassis
  Natural heat dissipation removes fan noise and reduces maintenance points in closed cabinets.

• Local and Remote Management
  Administrators can use the web interface, mobile app or SSH for configuration and diagnostics.

Specifications

What’s in the Box

• S380-L4T1T multi-service gateway

• 12 V DC, 1 A power adapter

• Quick start guide and documentation

Why Choose This Gateway

• Five Gigabit Ethernet ports make this 4 GE LAN router suitable for a WAN uplink and four local segments.

• The integrated access controller reduces separate hardware for small wireless deployments.

• A 6.11 W maximum power draw keeps utility and UPS sizing predictable.

• The fanless metal case operates in space-limited wiring closets and retail cabinets.

• 150-user gateway capacity covers branch-office wired and wireless demand.

• The 2 Gbps gateway forwarding rate supports daily office traffic.
