Huawei S220-48T4X 48-Port Gigabit L2 Managed Switch with 4x 10GE SFP+ Uplinks
Original price was: KSh 102,400.00.KSh 83,900.00Current price is: KSh 83,900.00. ex VAT

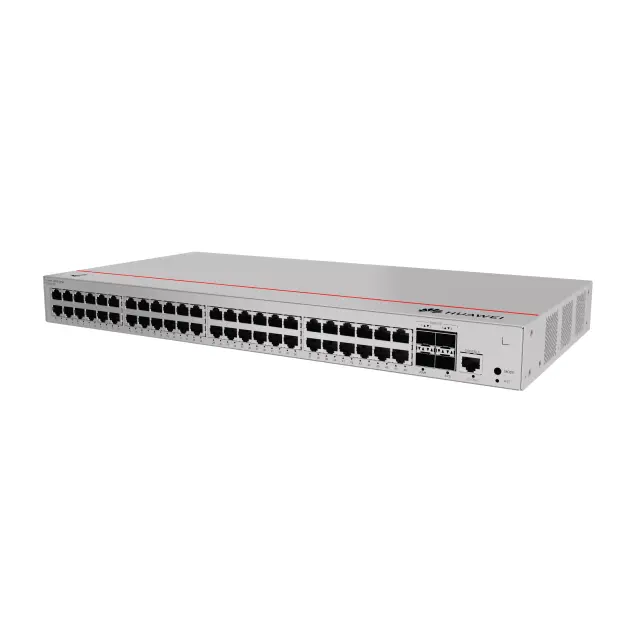

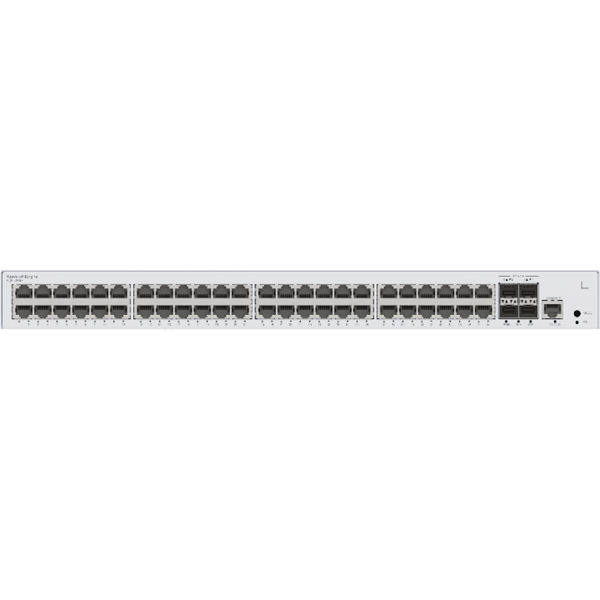

Huawei S220-48T4X 48-Port Gigabit L2 Managed Switch with 4x 10GE SFP+ Uplinks
| Model | S220-48T4X |
| Downlink ports | 48 × 10/100/1000BASE-T RJ45 |
| Uplink ports | 4 × 10GE SFP+ |
| Switching capacity | 176 Gbps |
| Forwarding performance | 131 Mpps |
| Power supply | Built-in AC, 100–240 V AC |
| Form factor | 1U rack-mountable metal chassis |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Layer 2 Gigabit Access for SME and Branch Networks
The Huawei S220-48T4X switch combines 48 gigabit copper access ports with four 10GE SFP+ uplinks in a 1U rack-mountable chassis. It targets SME, branch, hospitality, education and surveillance networks that need managed Layer 2 access with fibre aggregation.
Each RJ45 port negotiates 10/100/1000 Mbps and supports auto-MDI/MDIX. The four SFP+ cages accept 10GE transceivers or DAC/AOC cables and auto-sense to 1GE for legacy fibre. A 176 Gbps switching capacity and 131 Mpps forwarding rate support line-rate gigabit access.
The built-in AC power supply removes an external adapter and accepts 100–240 V AC input. Left-to-right airflow and intelligent fan speed control handle thermal load in wiring closets. The metal chassis measures 442 × 220 × 43.6 mm and weighs 2.71 kg without packaging.
Key Features
Gigabit Access with 10GE Uplinks
- 48 × RJ45 ports at 10/100/1000 Mbps with auto-negotiation.
- 4 × 10GE SFP+ cages supporting 10 Gbps optics, DAC and AOC.
- SFP+ ports auto-sense to 1000 Mbps for legacy fibre links.
Managed Layer 2 Control
Web, CLI, SNMPv1/v2c/v3 and SSHv2.0 management covers VLAN, QoS, ACL and link aggregation.Stacking and Ring Protection
- iStack supports up to four switches in one logical stack.
- STP, RSTP, MSTP and ERPS provide loop prevention and fast convergence.
- Link aggregation combines uplinks for bandwidth and redundancy.
Integrated AC Power and Cooling
A built-in AC supply accepts 100–240 V AC and draws 44.3 W maximum; a single fan provides left-to-right airflow.Rack, Wall or Desktop Mounting
The 1U metal enclosure supports 19-inch racks, wall mounting and desktop placement.
Specifications
| Feature | Specification |
|---|---|
| Model | S220-48T4X |
| Ports | 48 × 10/100/1000BASE-T RJ45; 4 × 10GE SFP+ |
| SFP+ speed | 10 Gbps, auto-sense to 1 Gbps |
| Console port | 1 × RJ45 |
| Switching capacity | 176 Gbps |
| Forwarding performance | 131 Mpps |
| MAC address table | 16K entries |
| VLAN support | 4094 VLANs |
| Layer 2 features | STP/RSTP/MSTP, ERPS, link aggregation, DHCP snooping, 802.1X, MAC authentication, ACL, QoS |
| Stacking | iStack, up to 4 members |
| Management | Web, CLI, SNMPv1/v2c/v3, SSHv2.0, cloud management |
| Power supply | Built-in AC, 100–240 V AC, 50/60 Hz |
| Input voltage range | 90–264 V AC, 45–65 Hz |
| Maximum power consumption | 44.3 W |
| Typical power consumption | 36.95 W |
| Dimensions (H × W × D) | 43.6 × 442 × 220 mm |
| Height | 1U |
| Weight without packaging | 2.71 kg |
| Operating temperature | −5°C to +50°C at 0–1800 m |
| Storage temperature | −40°C to +70°C |
| Operating humidity | 5% to 95% RH, non-condensing |
| Cooling | Built-in fan, intelligent speed control, left-to-right airflow |
| Surge protection | Service ports: ±7 kV common mode; power: ±6 kV differential and common mode |
| PoE | Not supported |
What’s in the Box
S220-48T4X chassis
AC power cable
Rack mounting kit and screws
Rubber feet
Quick start guide and documentation
Why Choose the S220-48T4X
Line-rate 48-port gigabit access with 10GE aggregation for SME wiring closets.
Layer 2 management with VLAN, QoS, ACL, 802.1X and DHCP snooping.
Four-unit iStack and ERPS ring protection reduce single points of failure.
Built-in AC supply and 1U metal chassis simplify rack deployment.
Fan speed control and 36.95 W typical power consumption suit always-on access closets.
