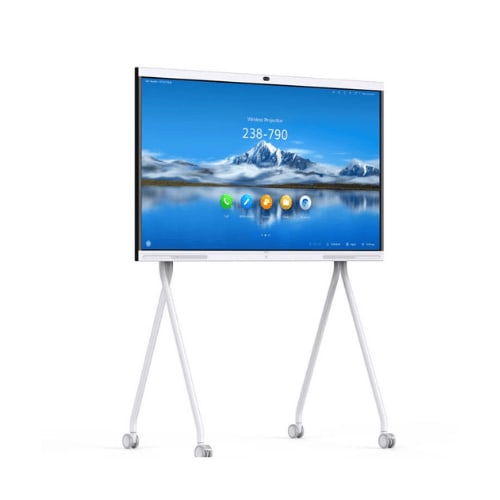

Huawei IdeaHub S2 65-inch Collaboration Display with OPS i5 Module

Meeting Room Collaboration System

The Huawei IdeaHub S2 65-inch is a bundled 4K interaction system for meeting rooms, supplied with an OPS i5 Windows compute module. It pairs a 65-inch infrared touch panel with a 4K camera, a six-microphone array, and a 40 W speaker set.

The D-LED panel delivers 3840 x 2160 pixels, 350 cd/m² brightness, and a 1200:1 contrast ratio behind zero-gap bonded glass. Touch sensing sits at 1.5 mm or less, and writing latency reaches 16 ms, so ink tracks the pen without perceptible lag.

The OPS module adds Intel Core i5 processing, 8 GB DDR4 memory, and a 128 GB SSD running Windows 10 IoT Enterprise. Mount the unit on a VESA 600 x 400 bracket or a mobile stand; the chassis measures 1484.5 x 947.5 x 91.6 mm and weighs 35.5 kg.

Key Features

• 4K UHD D-LED Panel
  The 65-inch screen resolves 3840 x 2160 pixels at 16:9 with direct LED backlighting and optical bonding.

• Infrared Multi-Touch Surface

  • 20-point simultaneous touch with 1.5 mm or less sensing distance
  • 16 ms writing latency with handwriting and shape recognition
  • Two stylus pens included for annotation over any input source

• Integrated 4K Camera
  A 4K 30 fps sensor with 80° horizontal field of view, 2x digital zoom, and a privacy lens cap supports auto-framing and voice tracking.

• Six-Microphone Audio Array
  The 180° array captures speech at up to 12 m and applies DNN de-reverberation, AEC, and automatic gain control.

• Wireless Presentation
  Wi-Fi 6 radios on 2.4 GHz and 5 GHz with Wi-Fi Direct let a laptop or phone project without joining the room LAN, while NFC adds one-tap pairing on supported handsets.

• Dual Operating Environment
  HarmonyOS runs the native whiteboard and meeting clients, and the installed OPS module provides a Windows 10 IoT Enterprise desktop for standard applications.

Specifications

What’s in the Box

• IdeaHub S2 65-inch display unit

• OPS i5 Windows compute module (factory fitted)

• 2 x touch stylus pens

• Power cable

• Quick start guide

Why Choose Huawei IdeaHub S2

• One panel replaces a projector, whiteboard, camera, and speakerphone, which removes cabling from the room.

• Windows 10 IoT Enterprise on the OPS module runs full conferencing clients locally, without a connected laptop.

• Wi-Fi 6 direct projection keeps guest presenters off the corporate SSID.

• 12 m microphone pickup covers a large boardroom from a single wall position.

• Bring Your Own Meeting support lets Teams, Zoom, or Webex run on the room hardware.
