Huawei AC650-128AP eKit Wireless Access Controller, 10x GE Ports, 2x 10GE SFP+, 128 AP License

eKit WLAN Controller for SOHO and Branch Networks

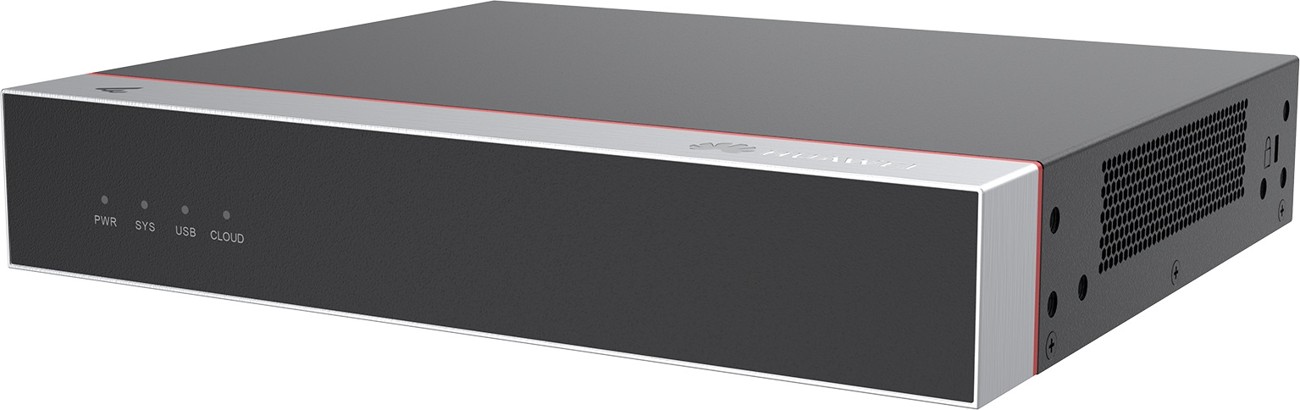

The Huawei AC650-128AP is a box-type wireless access controller built for small office, home office and small campus deployments. It manages up to 128 access points with the licence capacity already built into the chassis, so commissioning does not require separate per-AP licence codes. The controller also integrates a Gigabit Ethernet switch fabric, giving wired and wireless clients one managed access layer instead of two separate devices.

Ten 10/100/1000BASE-T RJ45 ports terminate access-layer copper links. Two 10GE SFP+ cages provide optical uplinks to a distribution switch or core, giving the unit a 10 Gbps forwarding capability and a rated forwarding rate of 10000 Mpps. One RJ45 console port and a single USB 2.0 Type A port complete the physical interface set; the USB socket accepts a flash drive to extend local storage.

A 12 V DC external adapter supplies power and the fanless chassis draws a maximum of 23.58 W, dissipating 80.45 BTU per hour. The case measures 43.6 x 250 x 210 mm and weighs 1.9 kg, and it installs in a 19-inch rack, on a desk or on a wall. Service-port surge protection is rated at 6 kV in common mode.

Key Features

• Built-in 128 AP Capacity
  The chassis manages 128 access points out of the box with no licence activation step and no external licence server.

• Combined Switching and Optical Uplinks
  Ten Gigabit copper ports plus two 10GE SFP+ ports cover access termination and high-speed fibre uplinks in the same 1U-high enclosure.

• SmartRadio Air Interface Control

  • Smart-roaming load balancing redistributes client load between APs after a station roams.
  • Dynamic frequency assignment detects co-channel and adjacent-channel interference, then disables or re-purposes redundant 2.4 GHz radios.
  • Dynamic EDCA and airtime scheduling give clients fair channel time and enforce service priority.

• Integrated Portal and AAA Server
  Portal and 802.1X authentication run on the controller, which removes the need for an external RADIUS appliance at small sites.

• Flexible Forwarding Modes
  Deploy in-path, off-path, bridge or mesh, with centralized or local data forwarding and Layer 2 or Layer 3 AP connectivity, including NAT traversal for private-network APs.

• Redundancy and Service Continuity
  1+1 hot standby and N+1 backup protect the control plane, while LACP or MSTP port backup protects the uplinks; local forwarding keeps clients online if the AP loses its controller link.

• Layer 4 to Layer 7 Application Awareness
  The built-in identification engine recognises more than 6000 applications and applies blocking, rate limiting or priority rules per application.

• Web and Cloud Management
  A built-in web system provides one-page health monitoring, AP-group profile configuration that can be copied between groups, and one-click diagnosis for users, APs and the controller itself.

Specifications

What’s in the Box

• AC650-128AP access controller mainframe

• 12 V DC power adapter

• Quick start guide and documentation set

Why Choose the eKit AC650-128AP

• One appliance handles controller duty and Gigabit switching, which reduces rack space and cabling in a branch cabinet.

• Optical 10GE uplinks leave headroom for dense Wi-Fi 6 and Wi-Fi 7 access point estates without replacing the aggregation link.

• The fanless, 23.58 W design suits enclosed wiring closets that have no forced ventilation.

• Mixed 802.11n, 802.11ac, 802.11ax and 802.11be management lets existing access points stay in service during a phased refresh.

• A 50-year MTBF rating and two-hour MTTR target support long service intervals in unstaffed sites.
