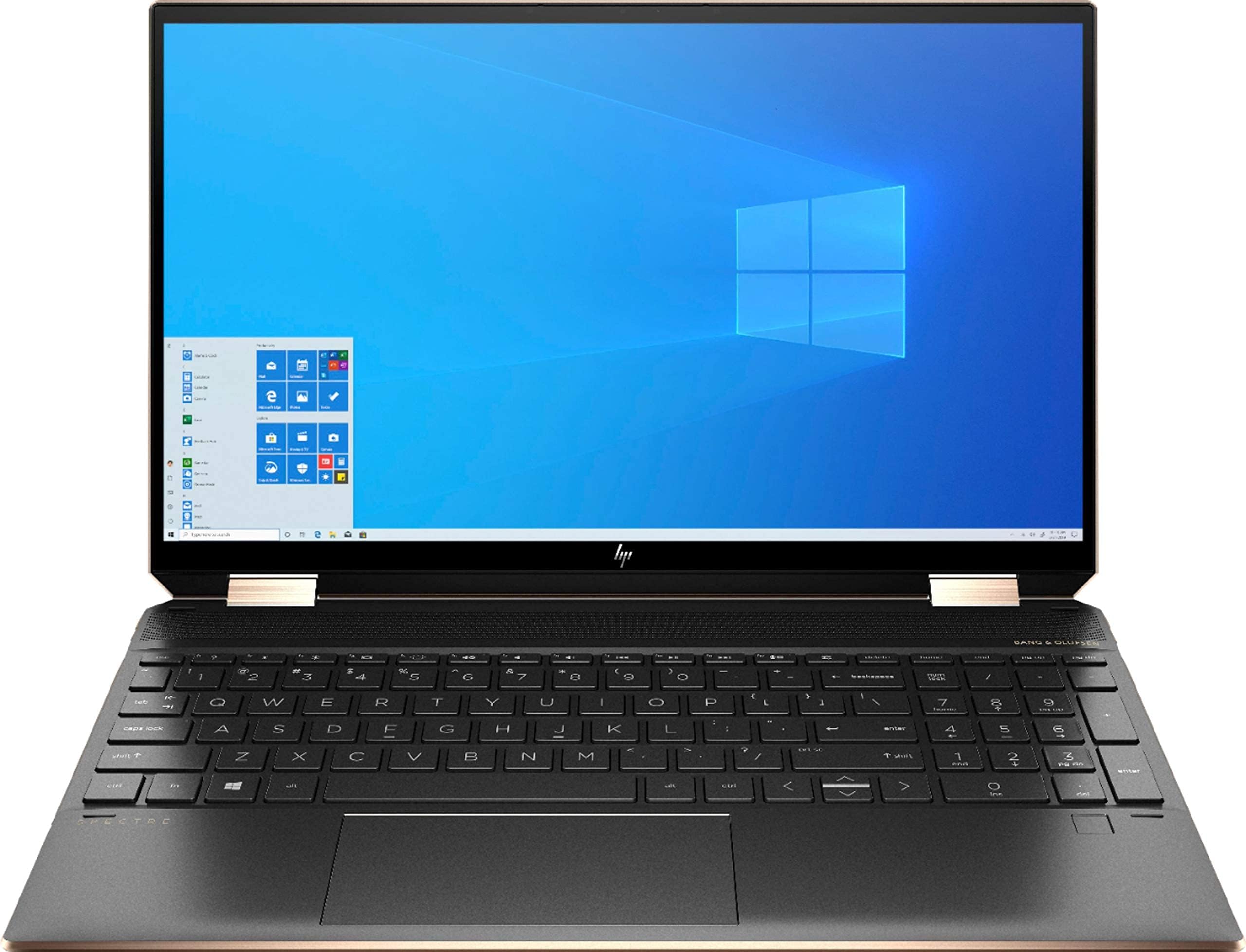

HP Spectre x360 15-EB 15.6-Inch 4K UHD AMOLED Touch Screen Assembly 40-Pin eDP 400-Nit

15.6-Inch 4K AMOLED Touch Panel for Spectre Convertibles

The HP Spectre x360 15-EB display is a 15.6-inch 4K UHD touch assembly for the Spectre x360 15-EB and 15T-EB convertible families. It carries a 3840 x 2160 AMOLED panel on a 40-pin eDP harness, with the connector seated at the bottom right. The bonded digitizer restores tap and pen input in a single service visit.

Peak brightness reaches 400 nits across a 100% DCI-P3 colour volume. A 100,000:1 contrast ratio drives true black levels, and VESA DisplayHDR 400 certification confirms the HDR payload. The panel also carries TUV low blue light certification for extended document sessions.

Corning Gorilla Glass NBT with an anti-reflection coating covers the active area. The assembly ships without a plastic bezel, so technicians transfer the original lid casing and digitizer board across. HP also sold 340-nit IPS and 400-nit IPS variants on the same chassis, and the AMOLED part number separates this lid at the bench.

Key Features

• 4K UHD AMOLED Panel
  The 3840 x 2160 active area delivers 282 pixels per inch across a 15.6-inch diagonal.

• VESA DisplayHDR 400
  The panel meets the HDR 400 luminance target and renders true black through per-pixel emission.

• 40-Pin eDP Interface

  • Four-lane embedded DisplayPort carries the 4K signal and touch data
  • Connector sits at the bottom right of the panel
  • Layout matches the factory harness without an adapter

• Colour and Brightness Envelope
  400 nits typical output pairs with 100% DCI-P3 coverage for colour-graded work.

• Gorilla Glass NBT Surface
  The anti-reflection coating cuts specular glare under overhead office lighting.

• Variant Identification Points

  • AMOLED technology plus 400 nits confirms the HDR 400 lid
  • IPS panels at 340 nits belong to the standard-brightness build
  • Part numbers L97633-001 and L99324-001 mark specific assembly revisions

Specifications

What’s in the Box

• 15.6-inch 3840 x 2160 AMOLED touch display assembly, 40-pin

• Protective foam and anti-static packaging

Why Choose the 15-EB AMOLED Panel

• A single 4K AMOLED lid clears cracked glass and dead touch in one service visit rather than two.

• Per-pixel emission removes the backlight bleed that IPS panels show on dark interface themes.

• DCI-P3 coverage keeps colour consistent for photo and video review without a calibration pass.

• The 40-pin layout matches the factory harness, so no adapter or firmware change is needed.

• Restoring the convertible hinge-and-pen workflow returns the unit to full tablet duty.

• Spare AMOLED lids on the shelf shorten turnaround for fleet units under accidental damage cover.
