HP ENVY 15-ew 30-Pin 15.6-Inch FHD IPS Touch Screen Assembly

Model-Matched Display Assembly for ENVY x360 Convertibles

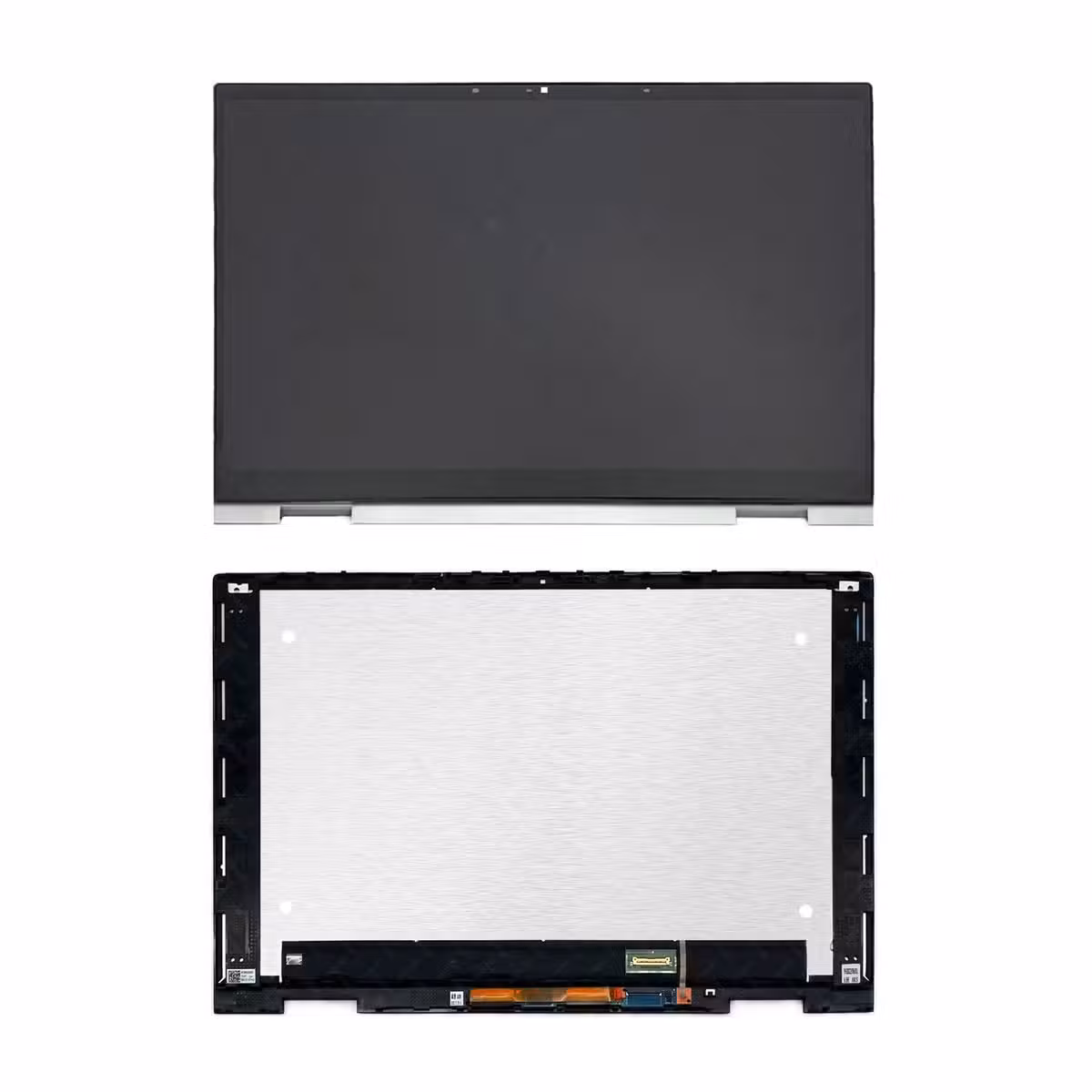

The HP ENVY 15-ew screen is a complete front assembly that restores touch, pen and video output on damaged convertibles. It ships with the LCD panel, capacitive digitizer, bezel frame and touch control board already bonded together. Technicians replace one module instead of sourcing three separate parts.

The panel measures 15.6 inches diagonally at 1920 x 1080 pixels on an IPS layer. A 30-pin eDP ribbon carries the FHD signal from the mainboard. The digitizer registers ten simultaneous touch points and supports active stylus input on compatible units. Typical brightness reaches about 300 nits with a 60 Hz refresh rate.

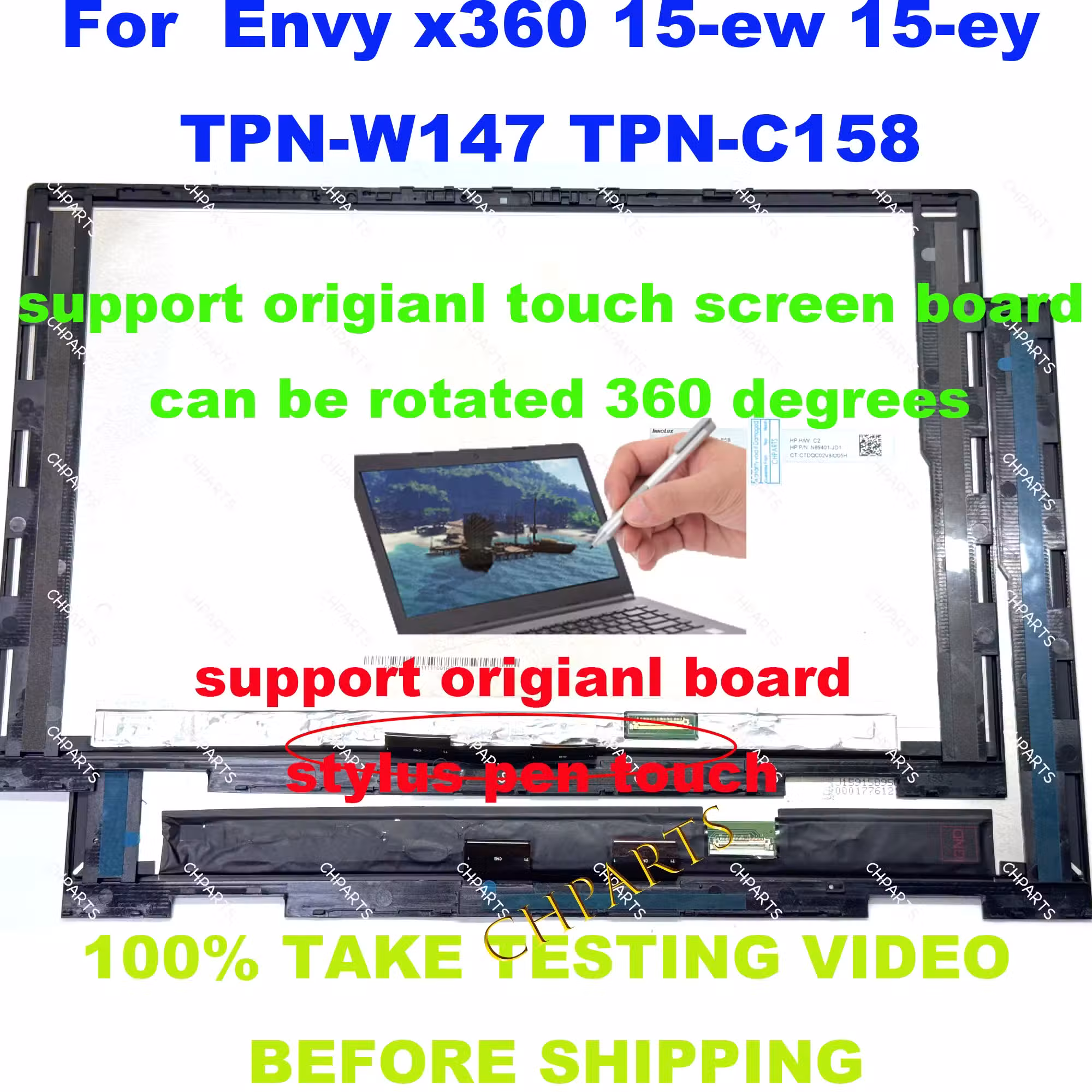

Compatibility covers the ENVY x360 15-ew0xxx, 15t-ew0xx and 15-ew1000 series. The assembly replaces HP part numbers in the N10353-001 and M93270 families. It does not fit the 40-pin UHD 3840 x 2160 variant or the OLED models. Confirm the original connector count before ordering.

Key Features

• Complete Front Module
  The LCD, touch digitizer, bezel and control board arrive pre-assembled as one serviceable unit.
• 30-Pin eDP Interface
  • Carries the 1920 x 1080 FHD signal over a 30-pin embedded DisplayPort ribbon
  • Distinct from the 40-pin connector used on UHD and OLED panels
  • Matches the standard ENVY 15-ew touch configuration
• Ten-Point Capacitive Touch
  The digitizer layer recognises ten simultaneous contacts for gesture navigation and pen annotation.
• IPS Panel with Anti-Glare Coating
  The IPS layer holds colour and contrast across wide viewing angles, and the anti-glare surface cuts reflections under office lighting.
• Tempered Edge-to-Edge Glass
  The cover glass spans the full bezel opening and resists scratches from daily bag transport.
• Drop-In Mechanical Fit
  Mounting points align with the original hinges and brackets, so the assembly seats without chassis modification.

Specifications

What’s in the Box

• 15.6-inch FHD IPS touch assembly with bezel
• Pre-fitted touch control board

Why Choose This Replacement Panel

• The pre-bonded module removes the alignment work of fitting a bare LCD and separate digitizer.
• Model-specific compatibility reduces the risk of ordering a 40-pin part for a 30-pin chassis.
• Ten-point touch and pen support restore the convertible modes users rely on.
• Anti-glare glass suits shared desks and brightly lit rooms.
• Replacing the display keeps the existing board, storage and licence intact.
