HP EliteBook x360 1030 G2 13.3-inch FHD Touch Screen Assembly – 32-Pin eDP, 10-Point Multi-Touch

13.3-Inch Replacement Touch Assembly

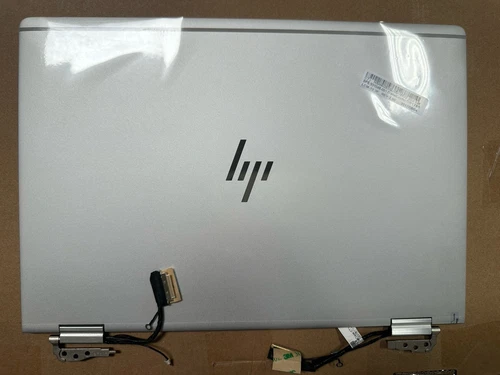

The HP 1030 G2 screen is a complete hinge-up touch display assembly for the EliteBook x360 1030 G2 convertible. It combines a 13.3-inch FHD LCD panel, a bonded 10-point capacitive digitizer and the surrounding bezel in one sealed unit. Technicians replace the whole upper half instead of separating glass from panel.

The panel resolves 1920 × 1080 across a 13.3-inch diagonal, which works out to 166 pixels per inch. HP specifies a UWVA IPS structure with 300 nits typical brightness and 85-degree viewing angles on all four axes. A 32-pin eDP ribbon carries video and touch data to the mainboard.

The factory bezel and hinge covers arrive pre-fitted, and the assembly matches the 1030 G2 chassis without trimming. Corning Gorilla Glass covers the digitizer, and an anti-glare treatment limits reflections under office lighting. The unit accepts the HP Active Pen for annotation and signature capture.

Key Features

• Complete Hinge-Up Module
  The LCD, digitizer, bezel and hinge brackets ship as one sealed assembly, which removes glass-to-panel bonding from the repair.
• Panel and Touch Specifications
  • 13.3-inch diagonal FHD 1920 × 1080 resolution at 166 PPI.
  • UWVA IPS structure with 300 nits typical brightness.
  • 10-point projected capacitive multi-touch digitizer.
• 32-Pin eDP Interface
  The 32-pin embedded DisplayPort ribbon matches the 1030 G2 mainboard connector and carries both video and touch signalling.
• Corning Gorilla Glass Surface
  The alkali-aluminosilicate cover glass resists scratches from stylus use and daily handling.
• Fitment Details
  • Pre-installed bezel and hinge covers match the factory chassis.
  • Anti-glare finish diffuses overhead lighting.
  • Webcam and microphone openings align with the original housing.
• Active Pen Support
  The digitizer recognises the HP Active Pen for handwriting, markup and drawing work.

Specifications

What’s in the Box

• 13.3-inch FHD touch display assembly
• Protective foam packaging
• Documentation

Why Choose This Replacement Panel

• The sealed hinge-up module cuts repair time by removing adhesive curing from the workflow.
• A 300-nit UWVA panel maintains legibility on bright office floors and in meeting rooms.
• The 32-pin eDP ribbon matches the original connector, so no adapter harness is needed.
• Ten-point capacitive input supports form signing, PDF markup and whiteboard capture.
• Pre-fitted bezel and hinge covers preserve the factory appearance after service.
• Gorilla Glass and anti-glare coating extend service life in shared-device fleets.
