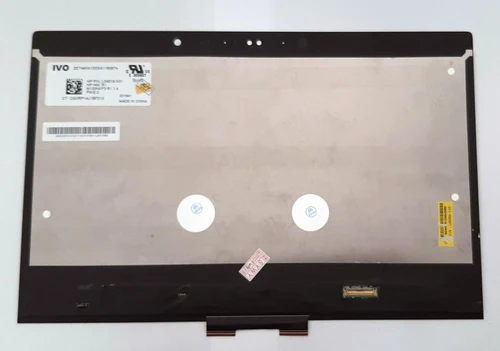

HP EliteBook x360 1030 G2 13.3-Inch FHD 30-Pin Touch Screen Assembly

13.3-Inch Touch Panel Replacement

The HP EliteBook 1030 G2 touch screen assembly replaces a cracked or unresponsive 13.3-inch panel in the x360 convertible chassis. It ships as a complete hinge-up unit with the digitizer bonded to the LCD. The 30-pin eDP tail and separate touch ribbon match the original connector layout.

The panel runs 1920 × 1080 at 60 Hz on IPS technology with 300 cd/m² typical brightness and a glossy finish without an anti-glare coating. Viewing angles reach 178° on both axes, and the 16:9 aspect ratio matches the factory bezel. A 30-pin eDP 1.3 interface carries two lanes of display signal.

Fitment covers the EliteBook x360 1030 G2 only. The assembly includes the touch controller, ribbon cables and mounting brackets; the outer bezel and hinges are not included unless stated. Technicians should discharge static before handling the ribbon. Rated operating temperature spans 0 °C to 50 °C.

Key Features

• 13.3-Inch FHD Resolution
  The panel resolves 1920 × 1080 across a 16:9 viewing area at 166 PPI, which matches the factory display density.
• 30-Pin eDP Interface
  A 30-pin eDP 1.3 connector sits at the bottom right, and a separate touch ribbon carries digitizer signals to the mainboard.
• Bonded Touch Digitizer
  The capacitive touch layer is laminated to the LCD, so the assembly installs as one unit without separate glass handling.
• IPS Panel with Wide Viewing Angles
  In-plane switching holds colour and contrast at 178° horizontally and vertically for shared-screen use.
• Hinge-Up Assembly Contents
  • eDP tail and touch ribbon pre-routed on the panel
  • Mounting brackets aligned to the chassis screw points
  • Protective film on the outer glass surface
• Brightness and Refresh
  The 300 cd/m² typical output and 60 Hz refresh rate match the original convertible specification.
• Chassis Compatibility
  The assembly fits the EliteBook x360 1030 G2 chassis only; G1 and G3 panels use different mounting points.

Specifications

What’s in the Box

• 13.3-inch FHD touch screen assembly
• Pre-routed 30-pin eDP tail
• Touch ribbon cable
• Mounting brackets
• Protective film and anti-static packaging

Why Choose This Panel

• The 1030 G2 touch panel restores pen and finger input on the convertible without replacing the whole lid.
• A bonded digitizer removes the air gap that causes dust ingress and parallax on older refurbished units.
• The 30-pin eDP assembly keeps the original signal path, so no adapter board or firmware change is needed.
• The EliteBook x360 display ships with brackets aligned to factory screw points, which shortens bench time.
• IPS technology and 300 cd/m² output meet the brightness of the original laptop touch digitizer for indoor office work.
