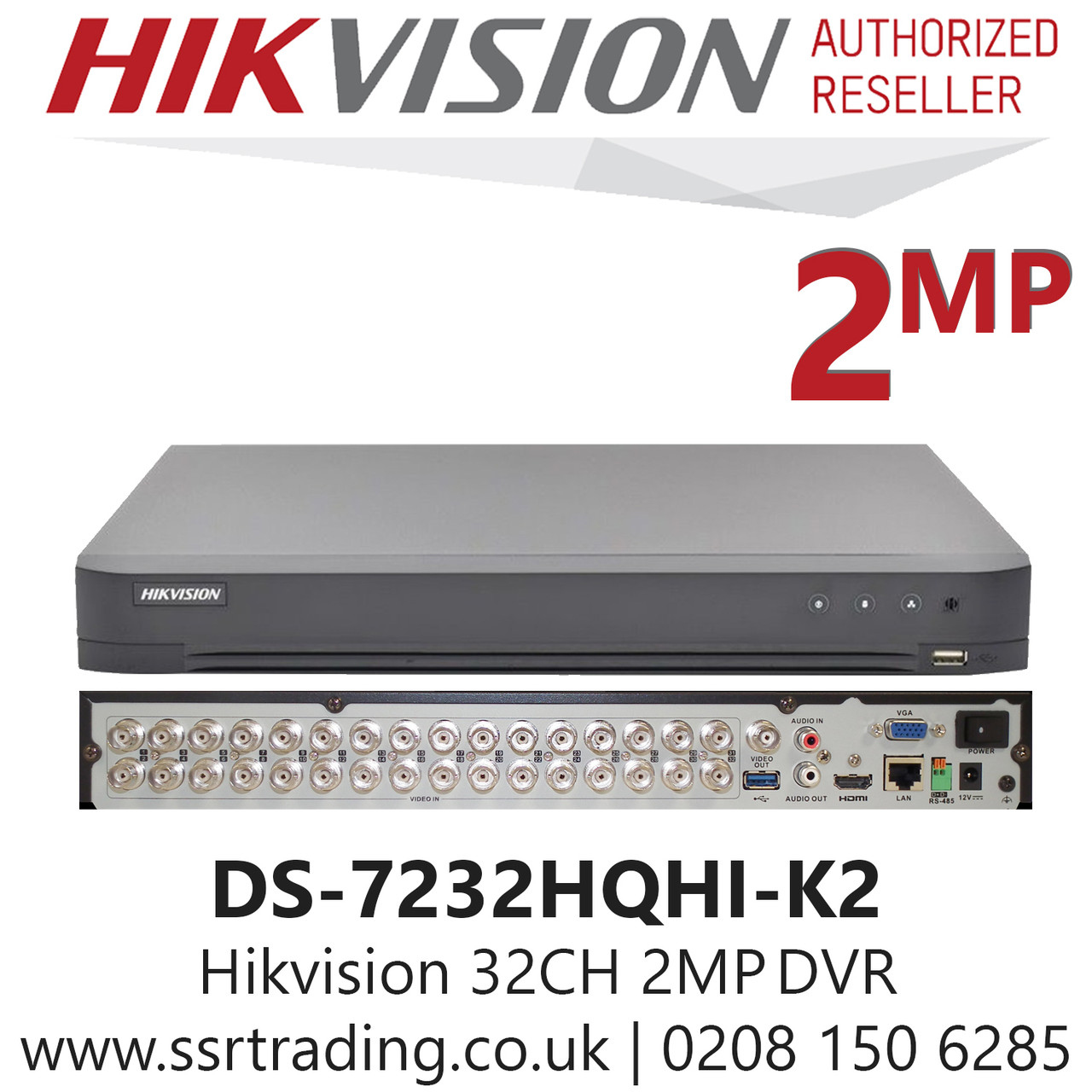

Hikvision DS-7232HQHI-K2 32-Channel 1080P H.265 DVR

Hikvision DS-7232HQHI-K2

The Hikvision 32-Channel DVR provides a robust platform for high-definition video recording in medium to large-scale security environments. This digital video recorder utilizes H.265 Pro+ compression technology to optimize storage efficiency. It reduces bandwidth requirements without compromising image quality. The unit supports five signal inputs including HDTVI, AHD, CVI, CVBS, and IP cameras. Users can integrate up to 32 analog channels via BNC connections. The system also accommodates up to 8 additional IP camera inputs by default. Disabling analog channels allows for a total of 40 IP camera inputs. Each IP channel supports resolutions up to 6 MP. This versatility makes the hardware suitable for upgrading legacy systems while integrating modern network cameras.

Key Features

• Efficient Video Compression
  H.265 Pro+ technology improves encoding efficiency and reduces data storage costs by up to 75 percent.

• Hybrid Signal Input

  • Self-adaptive HDTVI, AHD, CVI, and CVBS signal reception
  • Support for up to 6 MP resolution on IP camera inputs
  • Long-distance transmission up to 800m for 1080p signals

• Smart Video Analytics
  The recorder supports line crossing and intrusion detection for all 32 channels to automate security monitoring.

• High-Capacity Storage

  • Dual SATA interfaces supporting up to 10 TB per disk
  • Total internal storage capacity of 20 TB for extended retention
  • Smart search functionality for efficient playback of recorded events

The backend hardware features two SATA interfaces. Each slot accepts hard drives up to 10 TB in capacity. This configuration provides 20 TB of local storage for long-term data retention. The device manages 1080p recording at 15 frames per second across all channels. Lower resolutions like 720p or 1080p lite achieve higher frame rates. Signal transmission reaches up to 800 meters for 1080p and 1200 meters for 720p HDTVI signals. This long-distance capability simplifies installation in expansive facilities. Network connectivity relies on a single Gigabit Ethernet interface. This ensures stable data throughput for remote viewing and management. The DVR supports simultaneous HDMI and VGA outputs. The HDMI output delivers 4K resolution for detailed monitoring on high-resolution displays. Audio integration occurs via a single RCA input or through coaxial cables on supported cameras. This flexibility streamlines the deployment of audio-visual security systems. The DS-7232HQHI-K2 includes advanced video analytics. It supports line crossing detection and intrusion detection for all channels. One channel provides sudden scene change detection. These features automate threat identification and reduce false alarms. The VCA information overlay facilitates efficient event searching during playback. Smart search functions allow operators to pinpoint specific movements within designated areas. The chassis design fits standard rack mounts. It uses a 12V DC power supply. Power consumption remains under 55 watts excluding hard drives. Operating temperatures range from -10 to +55 degrees Celsius. This thermal tolerance suits various indoor environments. The unit measures 380 by 320 by 48 millimeters. It weighs approximately 2 kilograms without storage media. However, users should ensure adequate ventilation when mounting in enclosed racks to maintain optimal performance.

Specifications

What’s in the Box

• Hikvision DS-7232HQHI-K2 DVR Unit

• Power Adapter and Cable

• USB Mouse

• SATA Data and Power Cables

• Rack Mounting Brackets

• Quick Start Guide

Why Choose DS-7232HQHI-K2

• High-density channel support enables comprehensive coverage for large commercial properties.

• H.265 Pro+ encoding significantly lowers the total cost of ownership regarding storage media.

• Five-signal compatibility ensures seamless integration with diverse camera technologies and legacy wiring.

• Dual HDD slots provide sufficient capacity for high-resolution 1080p archiving requirements.
