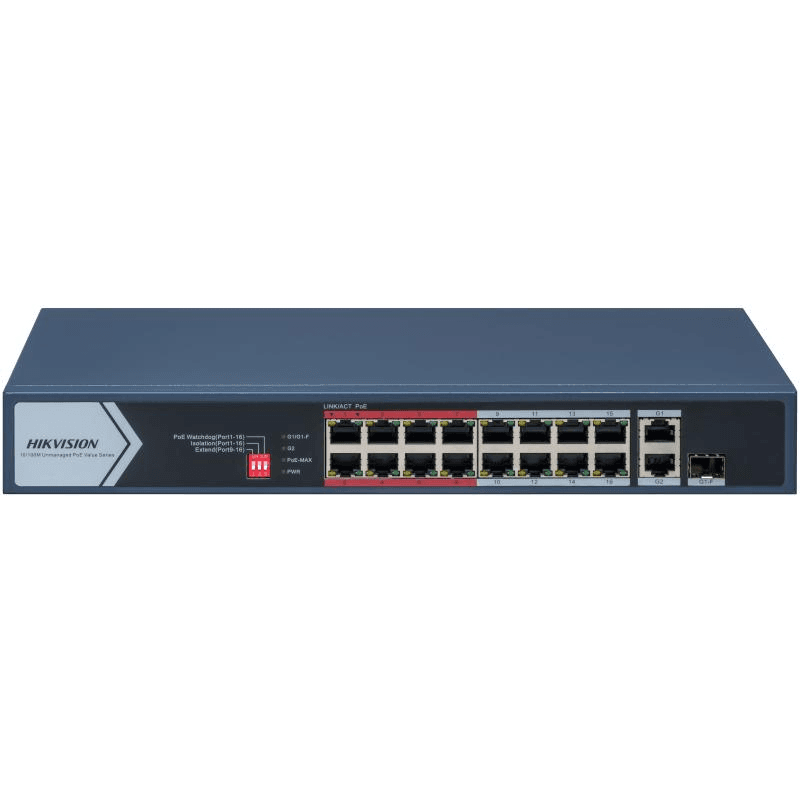

Hikvision DS-3E0318P-E/M(B) 16Port Unmanaged PoE Switch
Original price was: KSh 20,000.00.KSh 15,000.00Current price is: KSh 15,000.00. ex VAT
Hikvision DS-3E0318P-E/M(B) 16Port 100 Mbps Long-Range Unmanaged PoE Switch
| Ports | 16 × 100 Mbps PoE, 1 × 1G RJ45, 1 × 1G SFP |
| PoE Budget | 130 W |
| Long-Range PoE | Up to 300 m |
| Max Port Power | 30 W |
| Switching Capacity | 7.2 Gbps |
| Operating Temp | -10°C to 55°C |
| Construction | Metal enclosure |
| Management | Unmanaged (Plug & Play) |
Shipping & Delivery
Delivery
We deliver to the address you provide. Nairobi CBD is often same-day on business days.
Nairobi CBD or Kenya-wide
Free CBD ≥ KES 20,000; else from KES 300
Warranty 1 year
72-hour (3-day) returns
Description

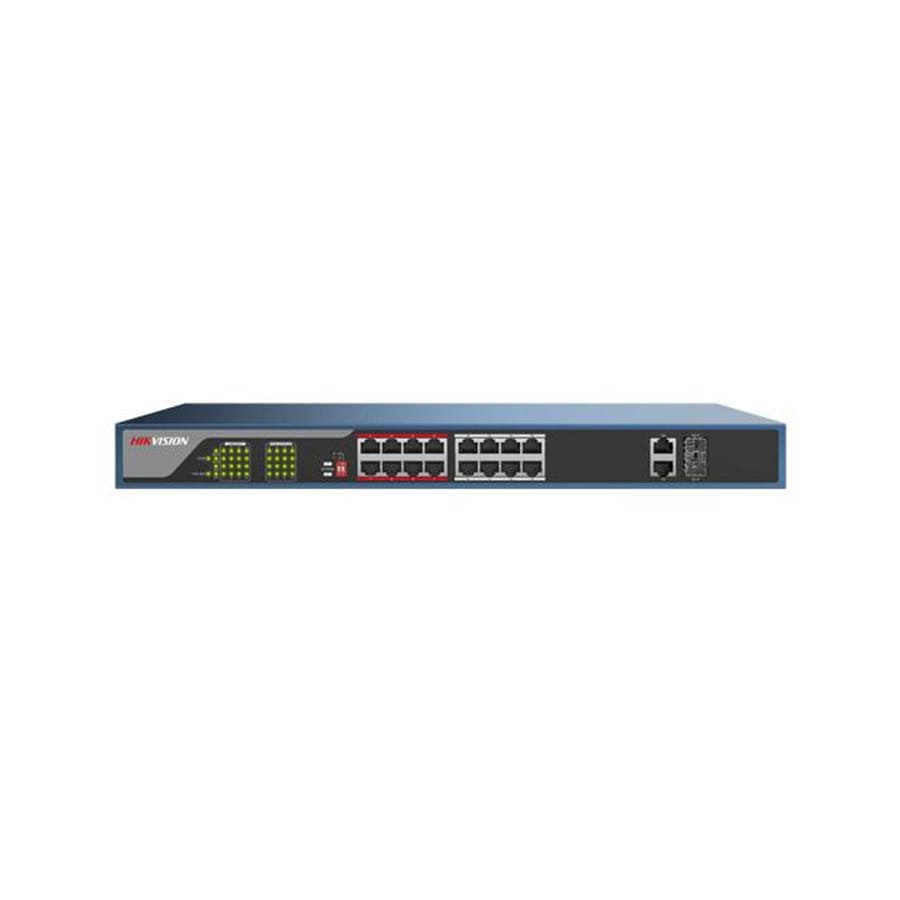

Hikvision DS-3E0318P-E/M(B) 16Port 100 Mbps Long-Range Unmanaged PoE Switch
The Hikvision DS-3E0318P-E/M(B) 16Port 100 Mbps Long-Range Unmanaged PoE Switch is a high-performance Layer 2 Unmanaged PoE Switch designed for long-range video transmission, small-scale LAN access, and surveillance network aggregation. Featuring 16 × 100 Mbps PoE ports, 1 × 1 Gbps RJ45 uplink, and 1 × 1 Gbps SFP fiber uplink, it delivers stable, high-bandwidth backhaul connectivity for professional IP surveillance deployments.
Key Features
16 × 100 Mbps PoE Ports + 1 × Gigabit RJ45 + 1 × Gigabit SFP
Provides flexible copper and fiber uplink options for surveillance or LAN expansion.Long-Range PoE up to 300 meters
Extend Mode allows cameras to be powered and connected at distances far beyond standard Ethernet limitations.Intelligent PoE Power Management
Automatically regulates PoE output when power budget is exceeded to protect the system and extend switch lifespan.8-Core Adaptive Power Delivery
Reduces cable power loss and ensures stable energy delivery to high-power devices.6 kV Surge Protection
Industrial-grade lightning protection for stable operation in harsh outdoor environments.VIP High-Priority Ports (1–8)
Ensures critical surveillance video streams remain stable even under network congestion.Silent Metal Enclosure
Fanless IP-rated metal housing provides noise-free, dust-resistant, durable operation.
Specifications
Network Parameters
| Feature | Specification |
|---|---|
| Port Count | 16 × 100 Mbps PoE ports, 1 × 1 Gbps RJ45, 1 × 1 Gbps SFP |
| Port Type | RJ45, full duplex, MDI/MDI-X adaptive |
| Standards | IEEE 802.3, 802.3u, 802.3x |
| Forwarding Mode | Store-and-forward |
| Operating Modes | Standard (default), Extend Mode |
| High Priority Ports | Ports 1–8 |
| Long-Range Ports | Ports 9–16 |
| MAC Address Table | 4K |
| Switching Capacity | 7.2 Gbps |
| Forwarding Rate | 5.356 Mpps |
| Internal Cache | 2.75 Mbits |
PoE Power Supply
| Feature | Specification |
|---|---|
| PoE Standards | IEEE 802.3af / 802.3at |
| PoE Pinout | 1/2/3/6 & 4/5/7/8 (8-core power supply) |
| Supported Ports | Ports 1–16 |
| Max Port Power | 30 W |
| PoE Power Budget | 130 W |
| Max Power Consumption | 150 W |
General
| Feature | Specification |
|---|---|
| Enclosure | Metal |
| Net Weight | 1.8 kg |
| Gross Weight | 2.58 kg |
| Dimensions | 266 × 44.5 × 220.8 mm |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5%–95% (non-condensing) |
| Power Supply | 100–240 VAC, 50/60 Hz, Max. 2.5 A |
| Idle Power Consumption | 20 W |
Approvals & Certifications
| Category | Certification |
|---|---|
| EMC | FCC, CE-EMC, RCM, IC |
| Safety | UL 60950-1, CB, CE-LVD |
| Chemistry | RoHS, WEEE, REACH |
What’s in the Box
1 × DS-3E0318P-E/M(B) PoE Switch
Power Cable
Quick Installation Guide
Optional SFP Modules
| Model | Fiber Type | Connector | Data Rate | Wavelength | Distance |
|---|---|---|---|---|---|
| HK-SFP-1.25G-20-1310 | Single fiber, SM | LC | 1.25 Gbps | Tx 1310 / Rx 1550 | 20 km |
| HK-SFP-1.25G-20-1550 | Single fiber, SM | LC | 1.25 Gbps | Tx 1550 / Rx 1310 | 20 km |
| HK-SFP-1.25G-1310-DF-MM | Duplex, MM | LC | 1.25 Gbps | 1310 / 1310 | 1 km |
| HK-SFP-1.25G-20-1310-DF | Duplex, SM | LC | 1.25 Gbps | 1310 / 1310 | 20 km |
Why Choose DS-3E0318P-E/M(B)
Ideal for CCTV systems requiring long-range power and data transmission
Reliable PoE budget for multiple high-power IP cameras
Intelligent overload and surge protection for harsh environments
Fiber uplink ensures stable aggregation for large sites
VIP priority ports guarantee smooth video streaming
Plug-and-play unmanaged design for fast deployment
