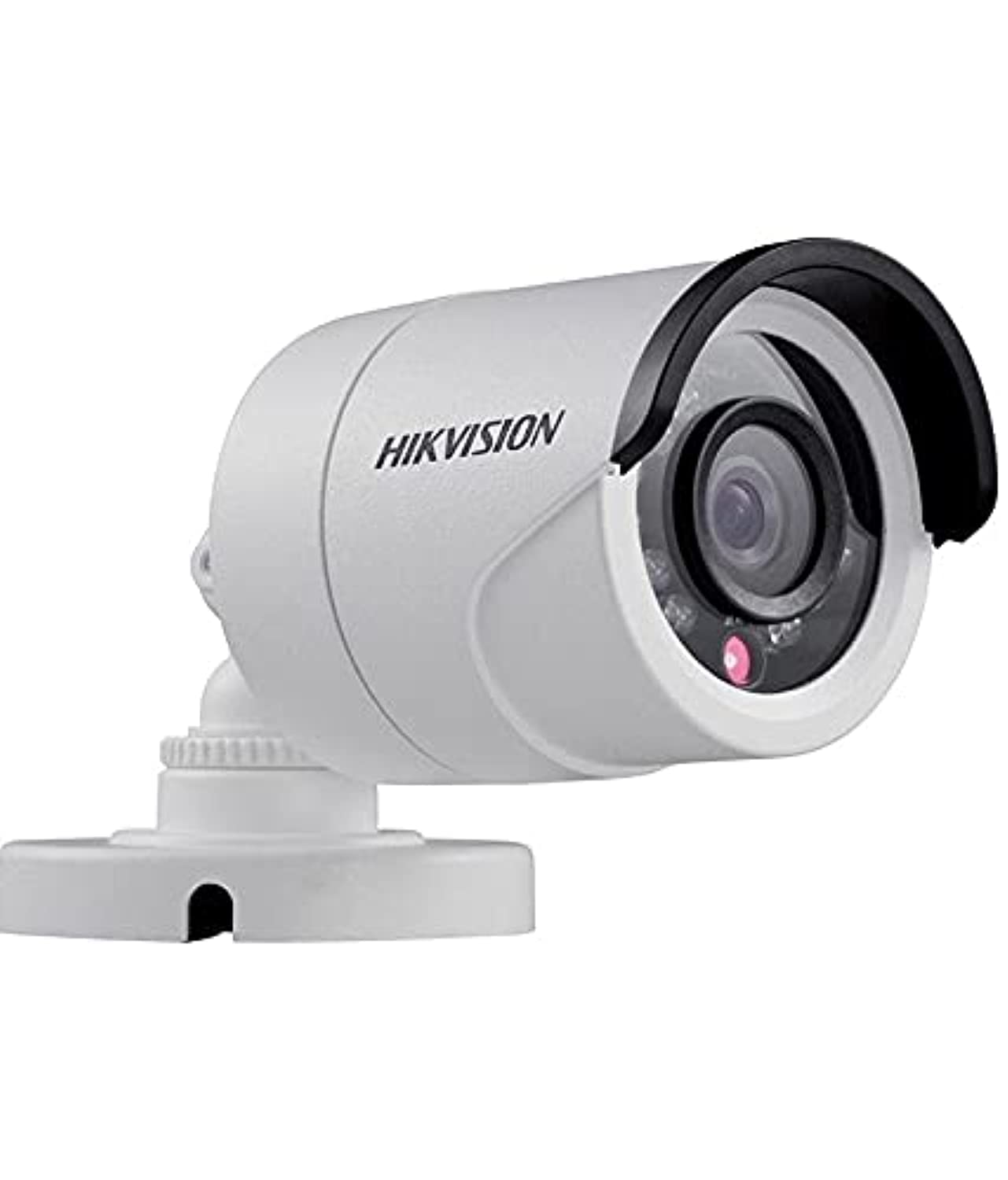

Hikvision DS-2CE16C0T-IRP 720p 1MP Bullet Camera

Hikvision DS-2CE16C0T-IRP

The Hikvision 1MP Bullet Camera provides high-definition 720p video over standard coaxial cabling. This Turbo HD device utilizes a high-performance CMOS sensor to capture 1296 by 732 effective pixels. It supports the HD-TVI standard for long-distance signal transmission. The hardware features a fixed focal length lens mounted on an M12 interface. It operates efficiently in low-light environments via an integrated infrared system. This unit targets legacy analog system upgrades where high-definition clarity is required. The plastic housing ensures a lightweight footprint for various mounting surfaces. It maintains reliable performance across a wide temperature range from -40 to 60 degrees Celsius.

The imaging core consists of a progressive scan CMOS sensor. This component generates a 1-megapixel video stream at 30 frames per second. The internal circuitry manages automatic gain control to stabilize image quality. An electronic shutter compensates for varying exposure requirements. The 3.6mm lens provides a horizontal field of view of 71 degrees. This focal length suits general surveillance in medium-sized rooms. The M12 mount provides a secure seating for the optics.

The infrared LEDs reach a distance of 20 meters. This illumination allows for monochrome footage in total darkness. The device switches to night mode automatically when light levels drop. The mechanical cut filter prevents infrared light from distorting daylight colors. This ensures color accuracy for forensic identification. The signal-to-noise ratio exceeds 62 decibels. This value minimizes graininess in the video feed.

Installation involves a three-axis adjustment bracket. This allows for 360-degree panning and 180-degree tilting. It also supports 360-degree rotation for precise framing. The analog HD output connects directly to Turbo HD DVRs. It uses standard RG59 coaxial cables. This simplifies the transition from CVBS systems to high-definition monitoring. The camera operates on a 12-volt DC power source. However, it tolerates a 15% voltage fluctuation. The lightweight plastic chassis reduces the load on mounting surfaces. It measures 70 millimeters in diameter. The total length reaches 149.5 millimeters.

The HD-TVI protocol ensures zero-latency video transmission. It supports cable runs up to 500 meters without signal loss. The camera maintains synchronization through internal clocking. It does not require complex network configuration. This plug-and-play approach reduces deployment time. The device remains functional in humidity up to 90%.

Key Features

• Smart IR Technology
  The internal processor adjusts infrared intensity to prevent overexposure in close-range night captures.

• Turbo HD Transmission

  • Supports 720p resolution over coaxial cables
  • Maintains signal integrity up to 500 meters

• Mechanical Cut Filter
  An integrated IR cut filter switches automatically to maintain color accuracy in daylight.

• Versatile Positioning

  • 360-degree pan adjustment range
  • 180-degree tilt capability for wall mounting

Specifications

What’s in the Box

• Hikvision DS-2CE16C0T-IRP Camera

• Mounting Screw Kit

• Drill Template

• Quick Start Guide

Why Choose DS-2CE16C0T-IRP

• Seamless integration with existing analog coaxial infrastructure reduces deployment costs.

• Low power consumption profile ensures energy efficiency across large camera arrays.

• High signal-to-noise ratio provides clear forensic evidence in low-light conditions.
