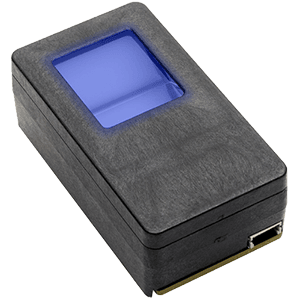

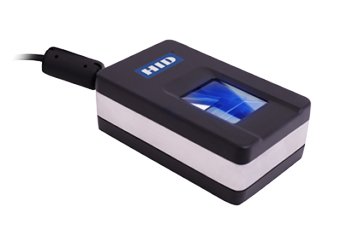

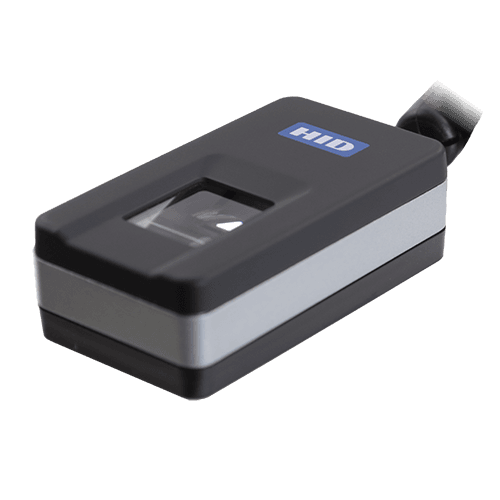

HID Digital Persona 5200 Fingerprint Module
Original price was: KSh 20,000.00.KSh 15,000.00Current price is: KSh 15,000.00.
HID Digital Persona 5200 Fingerprint Module
| Fingerprint Type | Optical Single Finger |
| Resolution | 500 dpi |
| Certification | FIPS 201 / FBI FAP 20 |
| Interface | USB 2.0 |
| Capture Area | 20.3 × 15.2 mm |
| Ingress Protection | IP64 |
| Weight | 40 g |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
HID Digital Persona 5200 Fingerprint Module
The HID Digital Persona 5200 Fingerprint Module is a compact, self-contained optical fingerprint scanning module designed for OEM integration and embedded biometric systems. Certified to FIPS 201/PIV and FBI Mobile ID FAP 20 standards, the module delivers high-quality 500 dpi fingerprint images in ANSI and ISO/IEC-compliant formats, making it suitable for regulated identity verification and authentication applications.
Key Features
FIPS 201 / FBI Mobile ID FAP 20 Certified
Fully compliant with FIPS 201/PIV and FBI Mobile ID FAP 20 standards.
Suitable for civil ID, access control, and secure authentication systems.
High-Resolution Optical Fingerprint Capture
Produces 500 dpi fingerprint images.
Supports ANSI and ISO/IEC standard image formats.
IP64-Rated Glass Imaging Window
Sealed against dust and liquid ingress.
Highly resistant to chemical exposure and mechanical damage.
Compact OEM-Friendly Design
Small form factor simplifies embedded and OEM integration.
Lightweight construction minimizes mechanical load.
Automatic Calibration & USB Data Control
Onboard electronics manage sensor calibration and data transmission.
Ensures stable and repeatable image quality.
Broad Software & Matcher Compatibility
Compatible with standards-compliant fingerprint extractors and matchers.
Optimized for DigitalPersona® FingerJet™ Biometric Engine.
Works seamlessly with DigitalPersona SDKs, with redistributable runtime.
Specifications
| Feature | Specification |
|---|---|
| Product Name | HID DigitalPersona® 5200 Module |
| Fingerprint Type | Optical Single Finger (Flat) |
| Module Dimensions | 63 × 35 × 22 mm (Approx.) |
| Weight | 40 g |
| Pixel Resolution | 500 dpi |
| Scan Capture Area | 20.3 × 15.2 mm |
| Image Data | 8-bit Grayscale |
| Image Formats | ANSI, ISO/IEC |
| Interface | USB 2.0 High Speed |
| Supply Voltage | 5.0V ±5% (USB) |
| Power Consumption (Scanning) | <150 mA (Typical) |
| Power Consumption (Idle) | <40 mA (Typical) |
| Power Consumption (Suspend) | <0.5 mA (Max) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 55°C |
| Operating Humidity | 0–90% non-condensing |
| Storage Humidity | 0–90% non-condensing |
| Ingress Protection | IP64 (Top surface & imaging window) |
| USB Pinout | Pin 1: +5V, Pin 2: GND, Pin 3: Shield, Pin 4: D−, Pin 5: D+ |
| Standards Compliance | FIPS 201 PIV, FBI Mobile ID FAP 20, RoHS, REACH, FCC, UL, USB, WEEE Class B, CE, ICES, BSMI, MIC, BSI, WHQL |
What’s in the Box
1 × HID DigitalPersona® 5200 Fingerprint Module
Integrated USB interface
OEM documentation
Why Choose HID DigitalPersona® 5200 Fingerprint Module
Certified FAP 20 module for regulated biometric applications
Compact and lightweight for embedded and OEM designs
High-quality optical imaging for accurate enrollment and matching
Durable IP64-rated glass for long-term field deployment
Seamless integration with DigitalPersona SDKs and biometric engines
Ideal for kiosks, access control systems, terminals, and identity devices
